Philips ST-D777ES - Printed Wiring Board Power Section

ST-D777ES
2727
Ref. No. Location
D901 C-5
D902 B-5
D903 C-5
D904 C-5
D905 B-5
D906 D-5
D909 E-5
D910 E-5
D911 F-5
D912 F-4
D913 F-3
D914 B-2
D919 C-3
IC901 B-4
IC902 B-3
IC903 C-7
IC905 E-3
IC906 D-4
Q901 B-3
Q902 B-3
Q903 C-3
Q904 B-2
Q905 B-2
Q906 C-3
Q907 C-2
Q908 D-3
Q909 D-9
Q910 E-4
Q911 E-2
Q912 F-3
Q913 F-3
• Semiconductor
Location

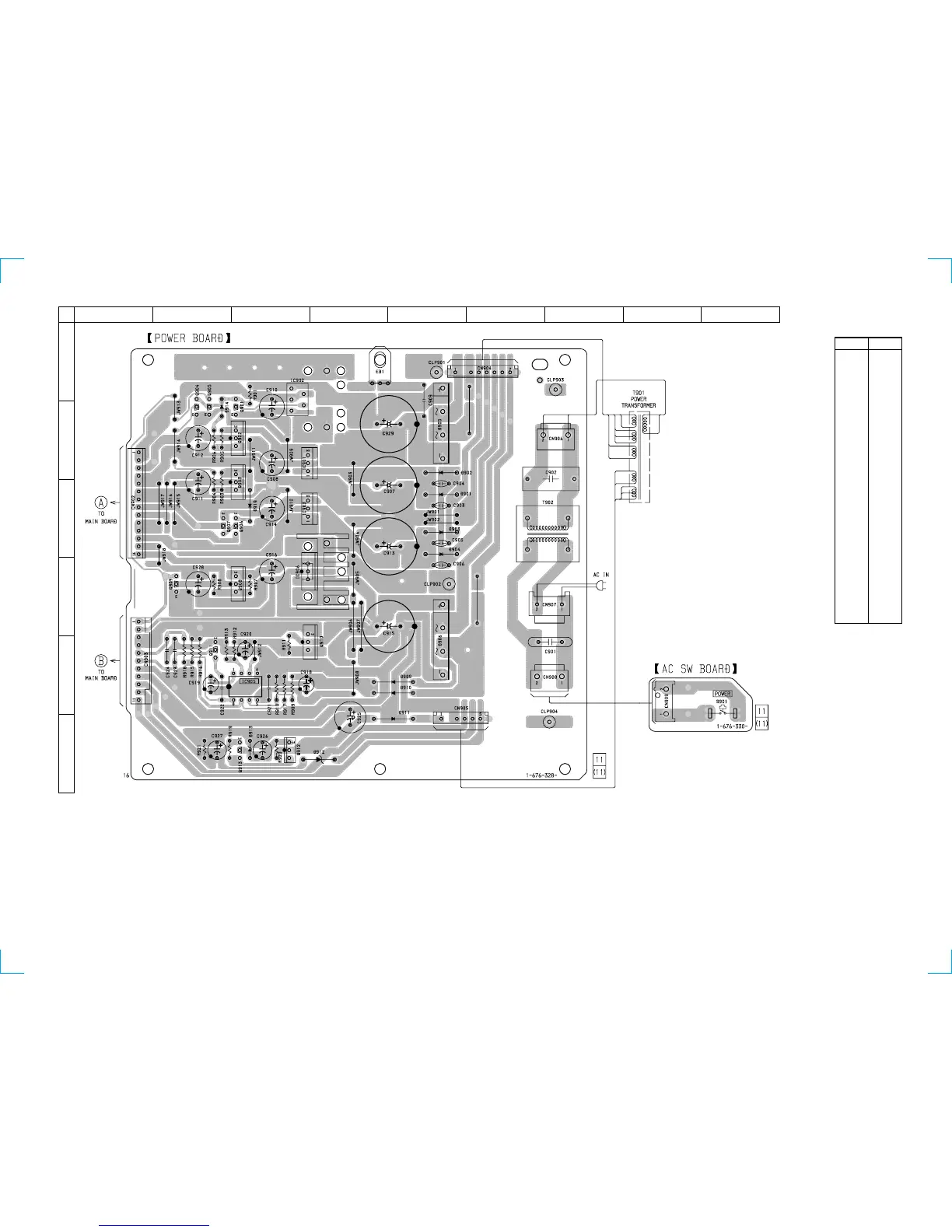

4-11. PRINTED WIRING BOARD POWER SECTION
• Refer to page 18 for Circuit Boards Location.
(Page 19)
(Page 19)
12
A
B
C
D
E
F
3456789
