Philips ST-D777ES - 5 Exploded Views; Front Panel Section

SECTION 5
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
34

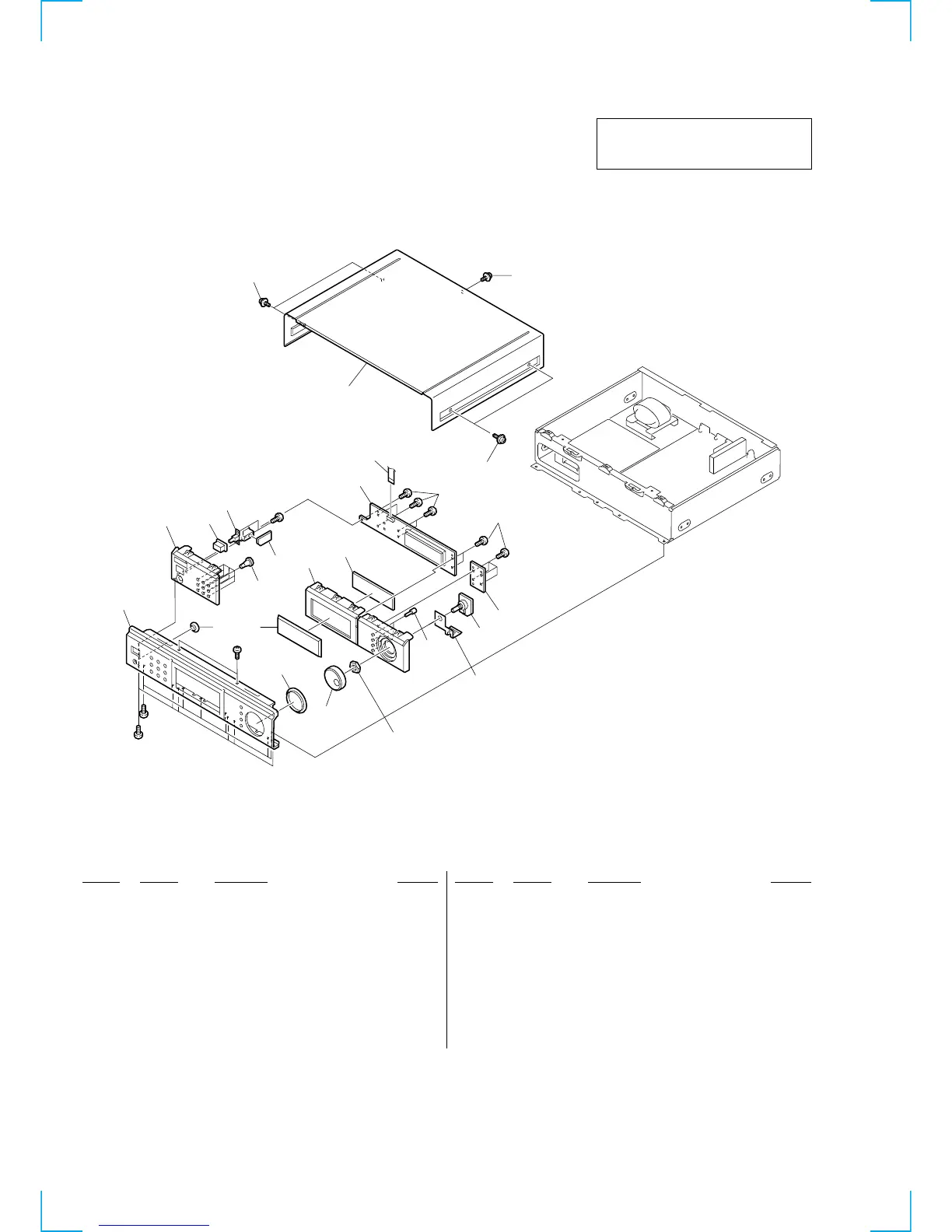

5-1. FRONT PANEL SECTION
1
2
3
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
19
supplied with RV801
not supplied
#1
#1
#2
#3
S901
#5
#5
1 4-226-949-01 PANEL, FRONT
2 4-226-962-01 BASE(DAB-L), PANEL
3 4-998-790-51 KNOB,POWER
5 1-676-330-11 AC SW BOARD
6 4-220-320-01 BUTTON (EDIT)
7 4-975-105-31 WINDOW, RAY CATCHER
8 4-226-950-01 WINDOW (FL)
9 4-226-960-01 RING(ENCODER), ORNAMENTAL
10 4-226-959-01 KNOB(ENCODER)
11 4-226-963-01 BASE(DAB-R), PANEL
12 4-226-961-01 FILTER (FL)
13 4-220-317-01 BUTTON (FILTER)
14 1-676-331-11 ENCODER BOARD
15 1-676-332-11 KEY SW BOARD
16 A-4428-524-A DISPLAY BOARD, COMPLETE
17 1-792-185-11 WIRE(FLAT TYPE) (15 CORE)
18 4-226-948-01 UPPER CASE
19 4-227-843-11 SCREW (TP), FLAT HEAD
0S901 1-572-267-51 SWITCH, PUSH (AC POWER)(1 KEY)(POWER)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
