Philips TAB7807 - Wall Mount

11EN

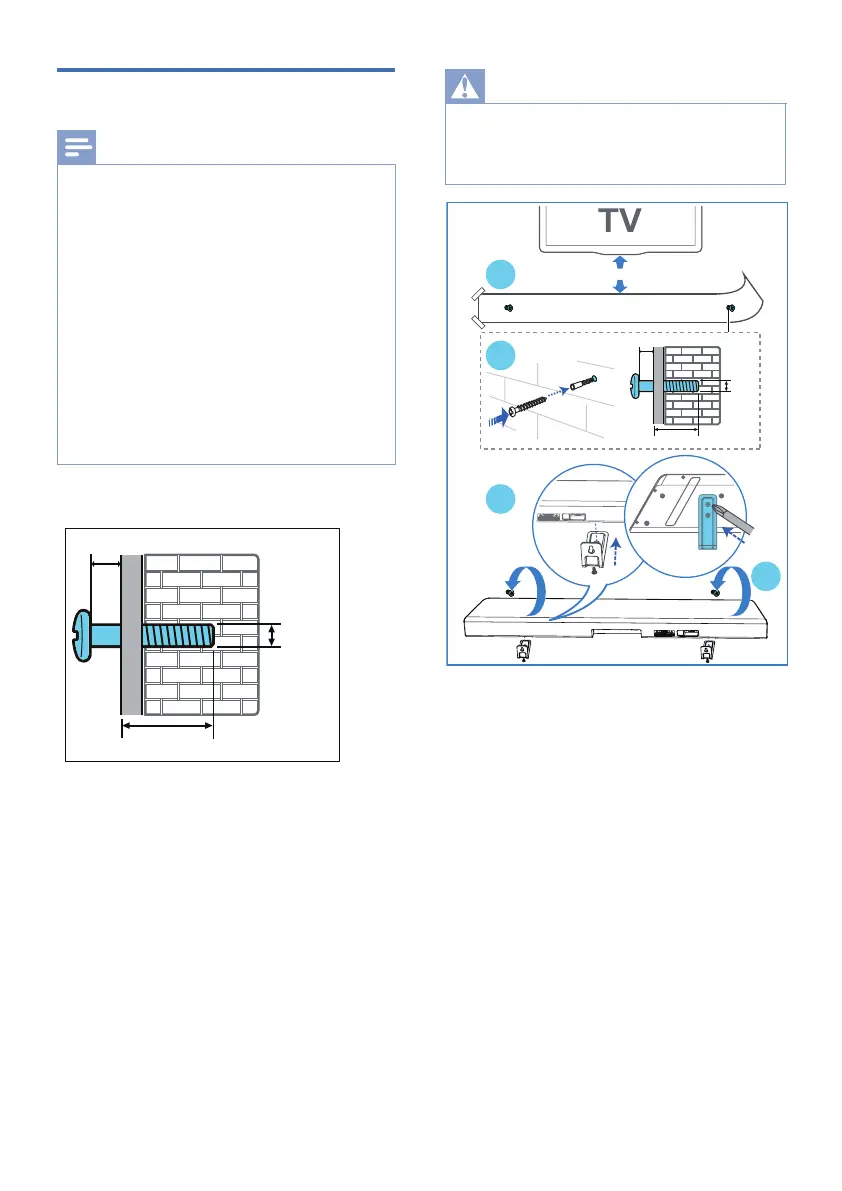

Wall mount
Note
•
Improper wall mounting may result in accident,
injury or damage. If you have any query, contact
Consumer Care in your country.
• Before wall mounting, make sure the wall can
support the weight of your soundbar.
• Before wall mounting, you need not remove
the rubber feet at the bottom of the soundbar,
ġŊüâľŨÿłâŊüâľŏ××âľõââŊؽĚĚġŊ×âžŭâÞ×½ØĐ֣
• Depending on the type of wall mounting, make
sure that you use screws of a suitable length
and diameter.
• Please check whether the USB port on the back of
the soundbar is connected to a USB device. If it is
found that the connected USB device affects the
wall-mount, you need to use another USB device
of the appropriate size.
Screw length/diameter
3.5-4mm/0.14 -0.16"
4mm/
0.16"
>32mm/1.26"
Suggested wall mounting height
You are recommended to install the TV
žľłŊ×âõġľâŨ½ēēęġŏĚŊÿĚöŊüâłġŏĚÞ×½ľ֣
With a TV preinstalled, wall mount the
soundbar 50mm/2.0’’ in distance from
the bottom of the TV.
«^E^<֨
•
To prevent injury, this apparatus must be securely
½ŊŊ½ØüâÞŊġŊüâſġġľֳŨ½ēēÿĚ½ØØġľÞ½ĚØâŨÿŊüŊüâ
installation instructions.
• ŏööâłŊâÞŨ½ēēęġŏĚŊÿĚöüâÿöüŊ֥دԛ֣ԟęâŊâľł֣
3
4
1
~50mm/2.0"
484 mm / 19”
2
3.5-4mm/0.14 -0.16"
4mm/
0.16"
>32mm/1.26"
1 Drill 2 parallel holes (diameter 3-8mm
each according to wall type) on the
wall.
» The distance between the holes
are: 484 mm / 19”
» You can use the wall mount
template provided for helping the
drilling holes position on the wall.
2 Secure the dowels and screws in the
holes.
» Be sure to leave a 3.5-4mm gap
between the wall and the screw’s
head.
3 Attach the wall brackets (x2) into the
back of the soundbar.
4 Hang the soundbar on the fastening
screws.
