Philips TAB8947 - Wall Mount

EN 13
Wall mount
Note
• Improper wall mounting may result in
accident, injury or damage. If you have any
query, contact Consumer Care in your country.
• Before wall mounting, make sure the wall can
support the weight of your Soundbar.
• Before wall mount, you need not remove the
rubber feet at the bottom of the Soundbar,
otherwise the rubber feet cannot be xed
back.
• Depending on the type of wall mounting your
Soundbar, make sure that you use screws of a
suitable length and diameter.
• Please check whether the USB port on the
back of the Soundbar is connected to a USB
device. If it is found that the connected USB
device aects the wall-mount, you need to
use another USB device of the appropriate
size.
Screw length/diameter of Soundbar
> 25mm
3.5-4mm
4mm
> 25mm
Suggested wall mounting height of
Soundbar
You are recommended to install the TV
rst before wall mounting the soundbar.
With a TV preinstalled, wall mount the
soundbar 50mm/2.0’’ in distance from
the bottom of the TV.

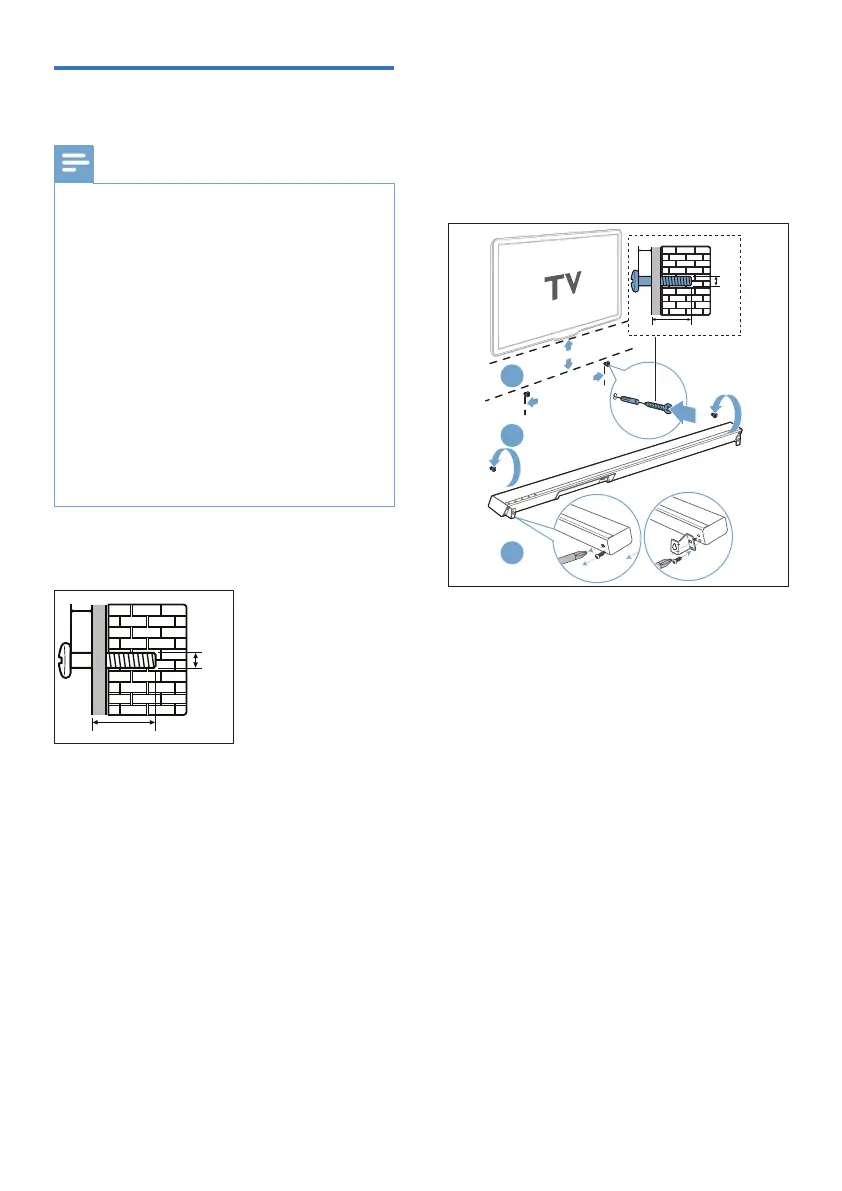

1 Drill 2 parallel holes (Ø 3-8mm
each according to wall type) on the
wall.
» The distance between the holes
are:
• 1076mm / 42”
» You can use the wall mount
template provided for helping
the drilling holes position on the
wall
» Secure the dowels and screws in
the holes.
2
1
1076 mm / 42"
~50mm/2.0"
3
3.5-4mm/0.14”-0.16”
4mm/
0.16”
>25mm/0.98”
2 Remove the screws (x4) from the
main unit.
» Attach the wall brackets (x2) to
the main unit with the screws
removed from the main unit.
3 Hang the Soundbar on the
fastening screws.
