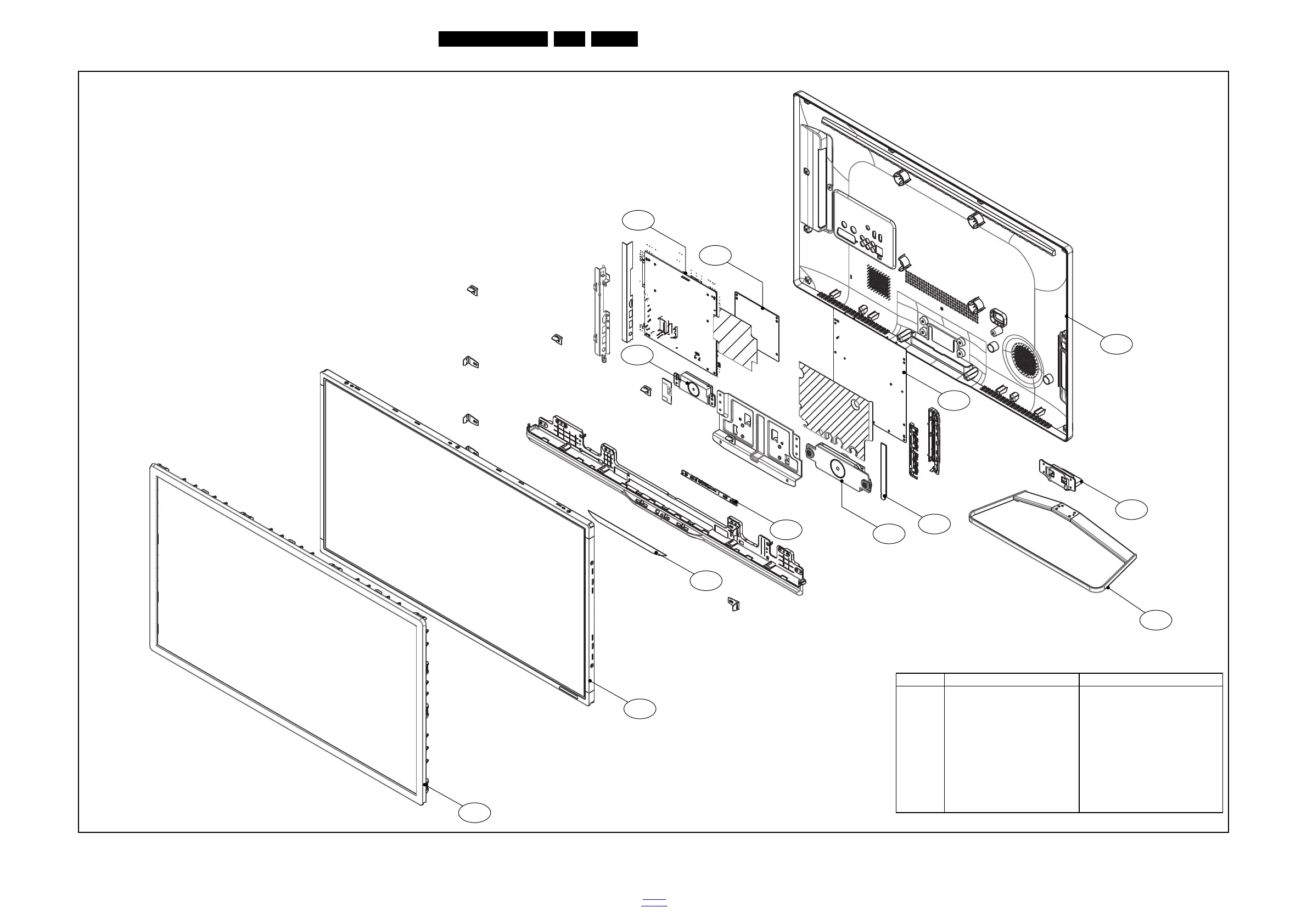

11.5 4500 series 32"
19431_801_130227.eps
130417
4500 series 32"
Pos No. Description Remarks
0031 Bezel
0034 Deco bezel
0041 Rear cover
0050 Base Assembly
0090 Stand Assembly
1050 Display panel
1053 Panel SSB
1054 Power Supply Unit
1056 IR/LED panel
1057 Keyboard control panel
1176 Remote control Not displayed
1185 Speaker_R
1186 Speaker_Sub woofer
FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9
1186
1053
1054
0031
0034
1185
1050
0050
0090
0041
1054
1057
1056
