Philips TPM10.1E LA User Manual

EN 70TPM10.1E LA 9.
Block Diagrams
2014-Jul-18
back to
div.table
9.6 Wiring diagram 5000 series 32"
19430_401_130121.eps
130121

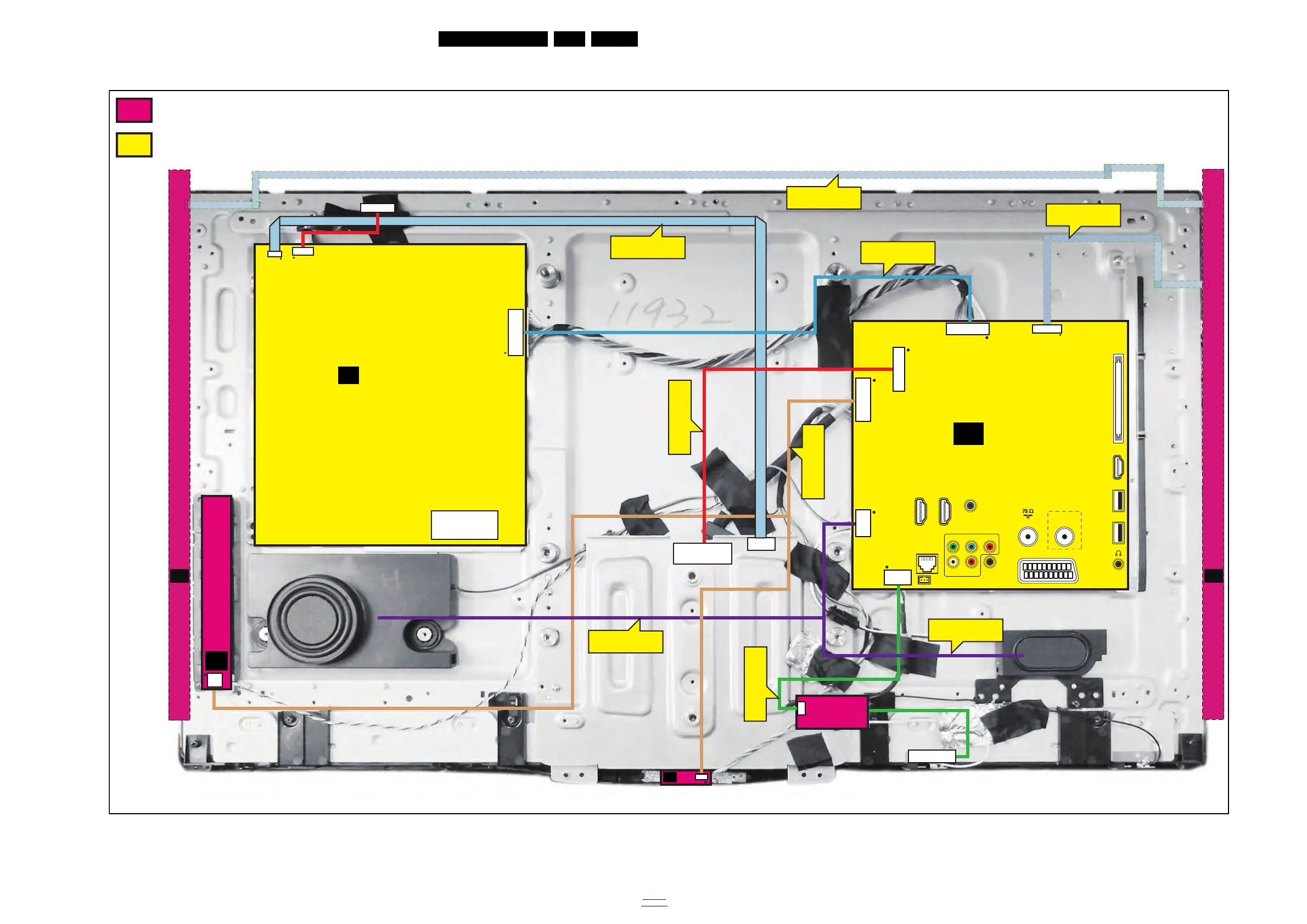

WIRING DIAGRAM 32" (5000 series)
Board Level Repair
Component Level Repair
Only for authorized workshops
See note in Chapter 6 about cable position numbers
KEYBOARD CONTROL (1057)
E
LOUDSPEAKERLOUDSPEAKER
(1186)(1186)
IR/LED BOARD
(1056)
J
LOUDSPEAKER
(1186)
LOUDSPEAKERLOUDSPEAKER
(1185)(1185)
LOUDSPEAKER
(1185)
SSB
(1053)
B
LN
CN9901
MAIN POWER SUPPLY
(1054)
A
HDMI
USB 2
USB 1
CI
NETWORK
TV ANTENNA SAT
DIGITAL
AUDIO OUT
LR
CVBS/Y Pb
Pr
SERV.U
AUDIO IN
DV I
HDMI 1
ARC
HDMI 2
SCART (RGB/CVBS)
WIFI
MODULE
4P
CN8103
TO PANEL
CN016
5P
WiFi Antenna
TO PANEL
8P
CN8102
TO PANEL
38P
CN408
13P
CN9101
12P
CN700
3P
CN4250
5P
WIFI01
4P
CN601
CN401
13P
CN201
6P
AmbiLight
(1062)
AL
AmbiLight
AL
(1063)
ECN700
ECN1404
ECN8103
ECN1A04
ECN601
ECN408
ECN4250
ECN601
ECN401
28P
CN1404
