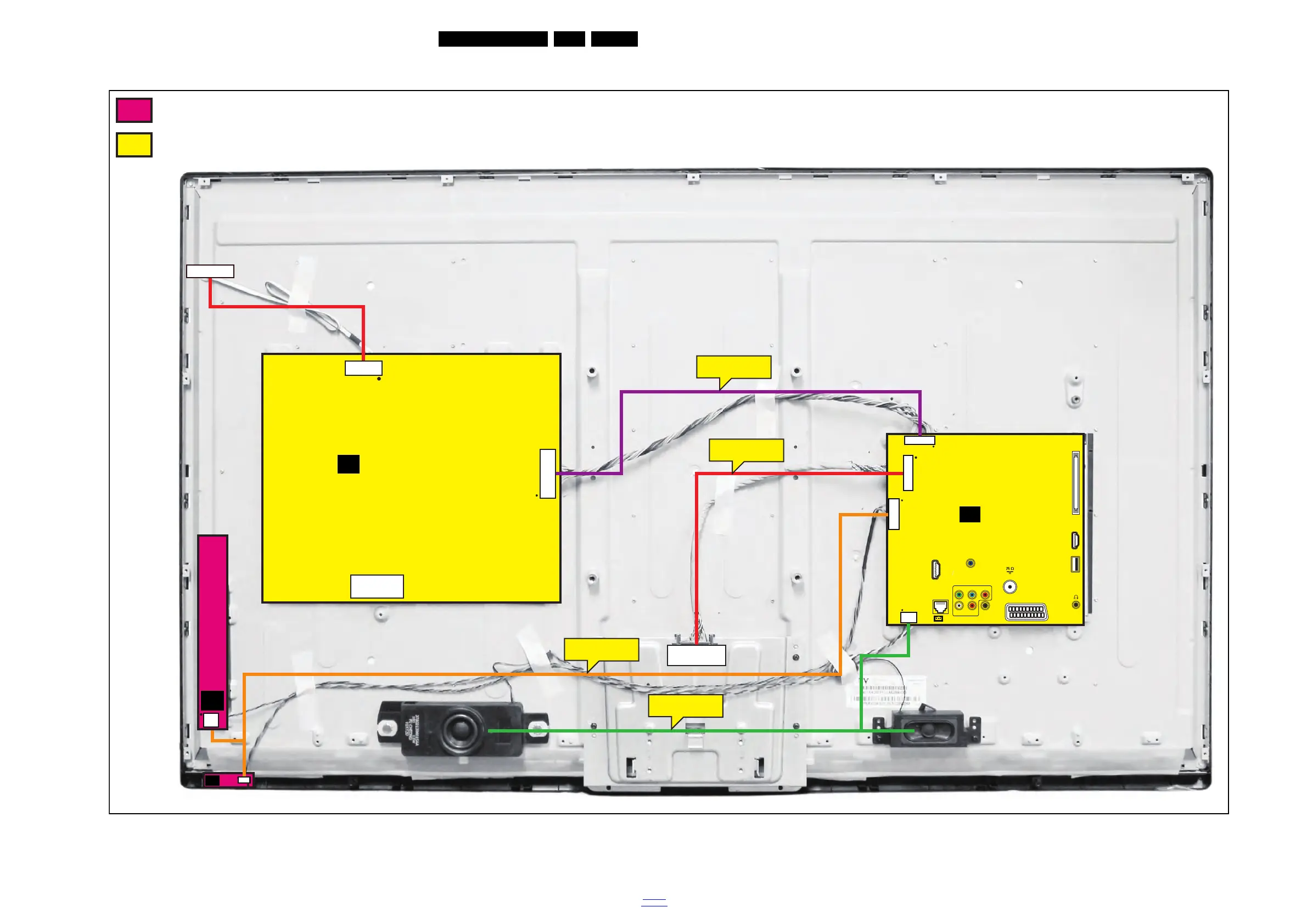

9.13 Wiring diagram 3000 series 40"- 46"
19431_411_130328.eps
130328
WIRING DIAGRAM 40"-46" (3000 series)
Board Level Repair
Component Level Repair
Only for authorized workshops
See note in Chapter 6 about cable position numbers
KEYBOARD CONTROL (1057)
E
LOUDSPEAKERLOUDSPEAKER
(1186)(1186)
IR/LED BOARD
(1056)
J
LOUDSPEAKER
(1186)
LOUDSPEAKERLOUDSPEAKER
(1185)(1185)
LOUDSPEAKER
(1185)
SSB
(1053)
B
LN
CN901
MAIN POWER SUPPLY
(1054)
A
HDMI
USB
CI
NETWORK
TV ANTENNA
DIGITAL
AUDIO OUT
LR
CVBS/Y Pb
Pr
SERV.U
AUDIO IN
DV I
HDMI 1
ARC
SCART
(RGB/CVBS)
13P
CN016
5P
TO PANEL
4P
CN601
CN401
13P
38P
CN408
12P
CN700
TO PANEL
12P
CN8506
12P
CN902
CN201
6P
ECN700
ECN408
ECN401
ECN601
