9.11 Wiring diagram 4200 series 42"
19430_403_130122.eps
130122

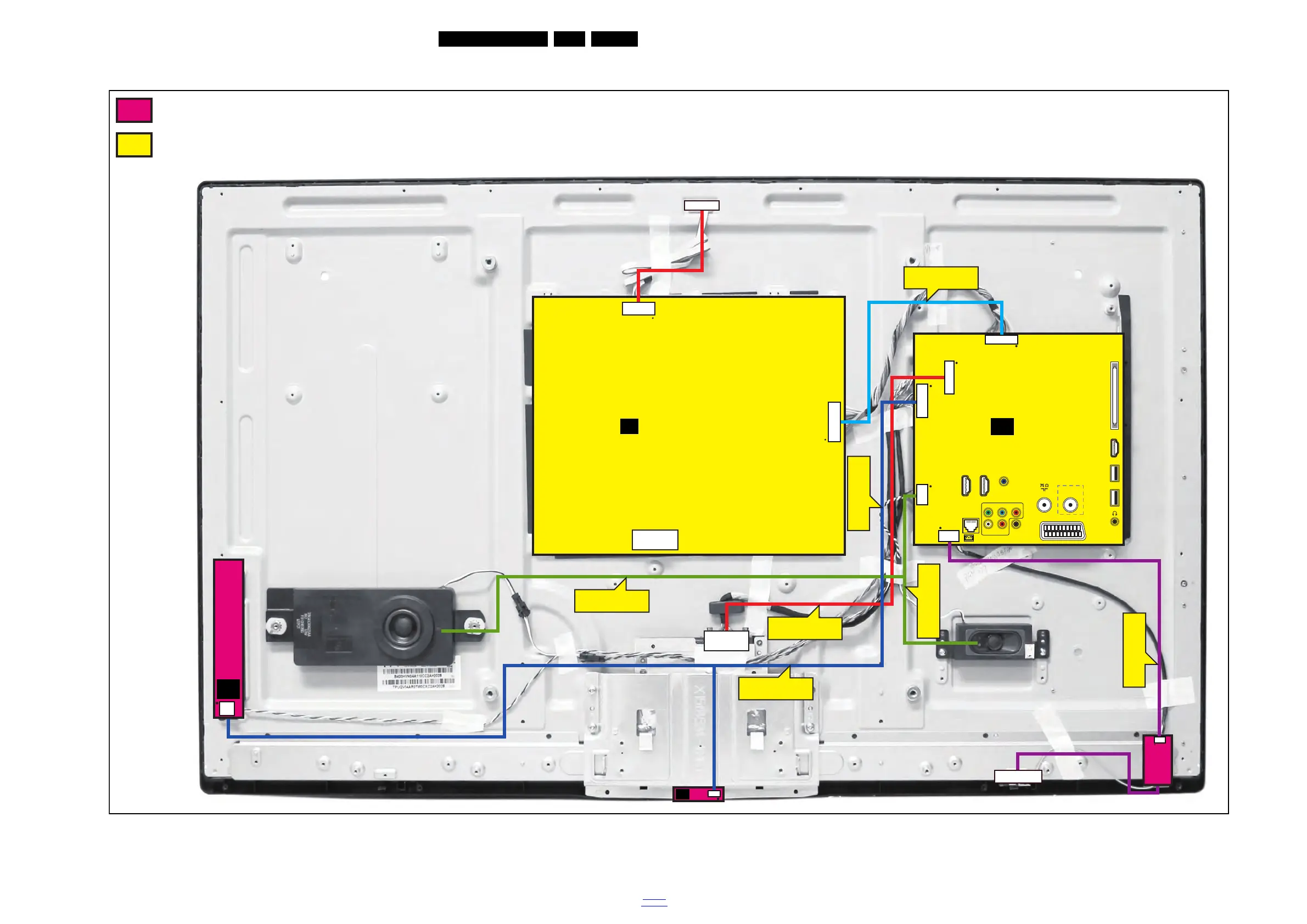

WIRING DIAGRAM 42" (4200 series)
Board Level Repair
Component Level Repair
Only for authorized workshops
See note in Chapter 6 about cable position numbers
KEYBOARD CONTROL (1057)
E
LOUDSPEAKERLOUDSPEAKER
(1186)(1186)
IR/LED BOARD
(1056)
J
LOUDSPEAKER
(1186)
LOUDSPEAKERLOUDSPEAKER
(1185)(1185)
LOUDSPEAKER
(1185)
SSB
(1053)
B
LN
CN901
MAIN POWER SUPPLY
(1054)
A
HDMI
USB 2
USB 1
CI
NETWORK
TV ANTENNA SAT
DIGITAL
AUDIO OUT
LR
CVBS/Y Pb
Pr
SERV.U
AUDIO IN
DV I
HDMI 1
ARC
HDMI 2
SCART (RGB/CVBS)
WIFI
MODULE
TO PANEL
12P
CN8506
38P
CN408
TO PANEL
3P
CN4250
5P
WIFI01
12P
CN700
13P
CN902
4P
CN601
CN401
13P
CN201
6P
CN016
5P
WiFi Antenna
ECN700
ECN408
ECN401
ECN601
ECN401
ECN4250
ECN601
