9. Block Diagrams
9.1 Wiring diagram 3000 series 32"
19431_407_130328.eps
130328

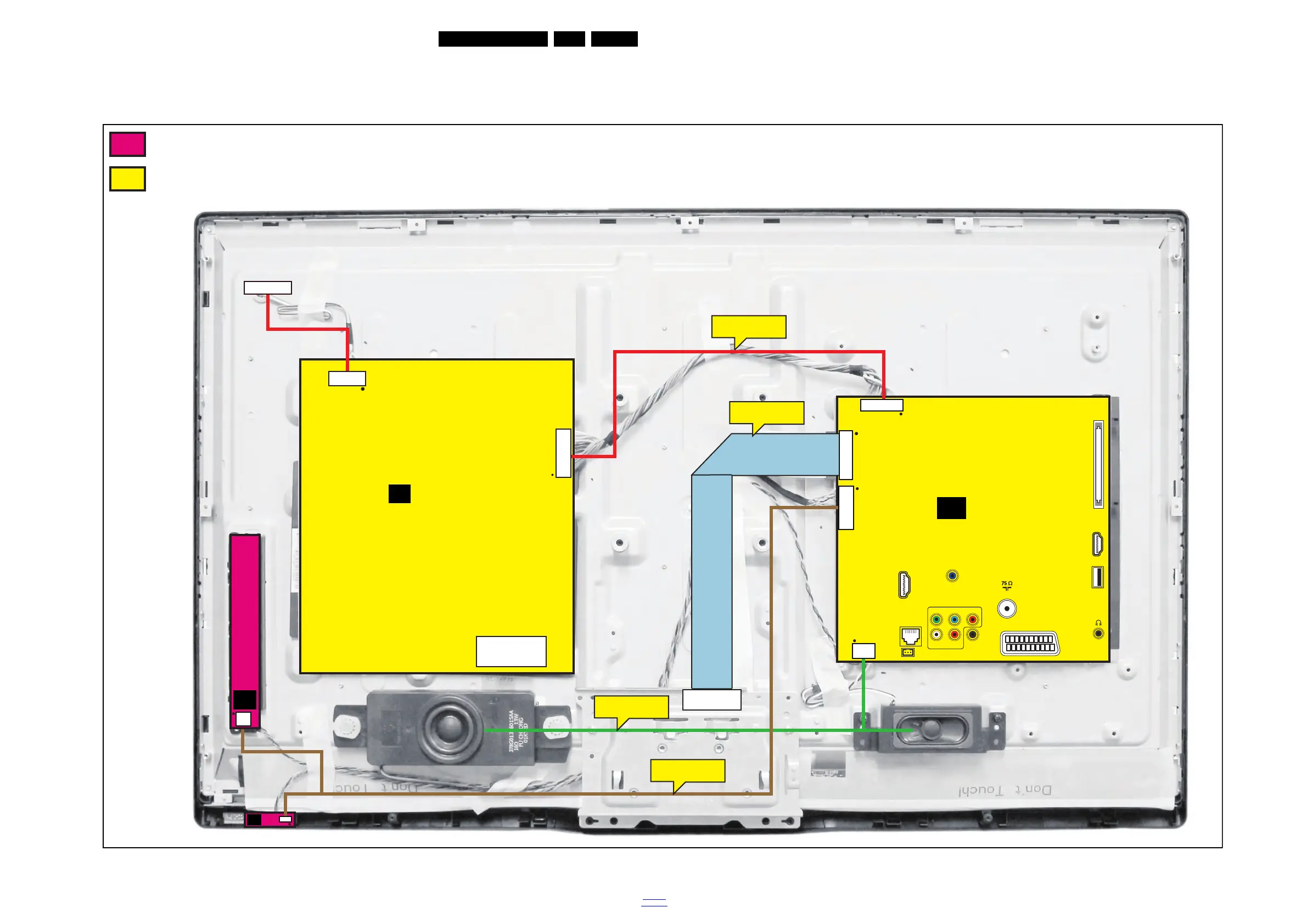

WIRING DIAGRAM 32" (3000 series)
Board Level Repair
Component Level Repair
Only for authorized workshops
See note in Chapter 6 about cable position numbers
KEYBOARD CONTROL (1057)
E
LOUDSPEAKER
LOUDSPEAKER
(1186)
(1186)
IR/LED BOARD
(1056)
J
LOUDSPEAKER
(1186)
LOUDSPEAKER
LOUDSPEAKER
(1185)
(1185)
LOUDSPEAKER
(1185)
SSB
(1053)
B
LN
CN9901
MAIN POWER SUPPLY
(1054)
A
HDMI
USB
CI
NETWORK
TV ANTENNA
DIGITAL
AUDIO OUT
LR
CVBS/Y Pb
Pr
SERV.U
AUDIO IN
DV I
HDMI 1
ARC
SCART
(RGB/CVBS)
30P
CN409
TO PANEL
TO PANEL
12P
CN8101
12P
13P
CN9101
12P
CN700
ECN700
4P
CN601
CN201
6P
CN016
5P
CN401
13P
ECN409
ECN601
ECN401
