Philips TPM10.1E LA - Wiring Diagram 4200 Series 32

Block Diagrams
EN 67TPM10.1E LA 9.
2014-Jul-18
back to
div.table

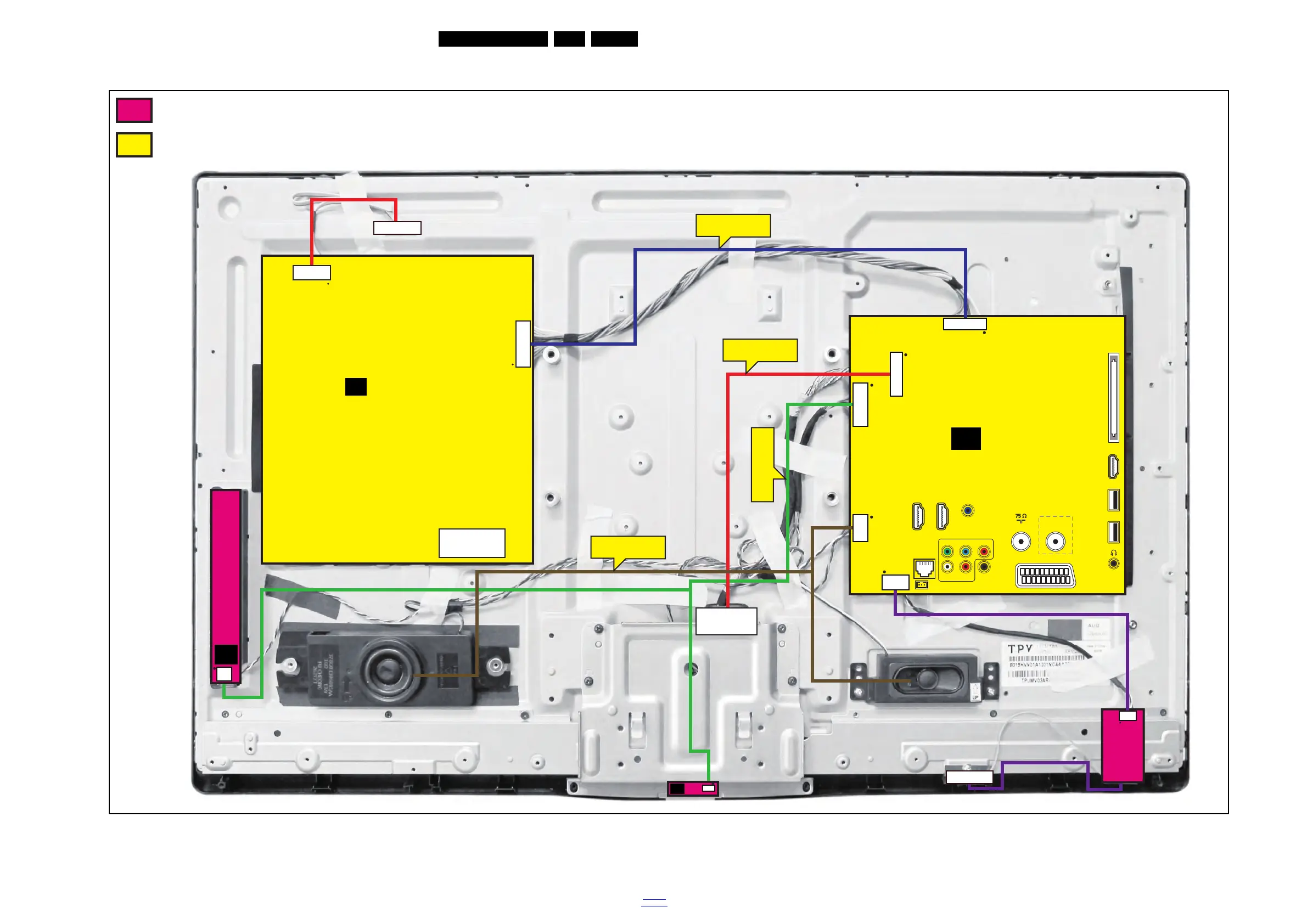

9.3 Wiring diagram 4200 series 32"
19430_400_130121.eps
130121
WIRING DIAGRAM 32" (4200 series)
Board Level Repair
Component Level Repair
Only for authorized workshops
KEYBOARD CONTROL (1057)
E
LOUDSPEAKERLOUDSPEAKER
(1186)(1186)
IR/LED BOARD
(1056)
J
LOUDSPEAKER
(1186)
LOUDSPEAKERLOUDSPEAKER
(1185)(1185)
LOUDSPEAKER
(1185)
SSB
(1053)
B
See note in Chapter 6 about cable position numbers
LN
CN9901
MAIN POWER SUPPLY
(1054)
A
CN401
13P
CN201
6P
HDMI
USB 2
USB 1
CI
NETWORK
TV ANTENNA SAT
DIGITAL
AUDIO OUT
LR
CVBS/Y Pb
Pr
SERV.U
AUDIO IN
DV I
HDMI 1
ARC
HDMI 2
SCART (RGB/CVBS)
WIFI
MODULE
TO PANEL
12P
CN8101
38P
CN408
TO PANEL
12P
CN700
13P
CN9101
CN016
5P
4P
CN601
3P
CN4250
5P
WIFI01
WiFi Antenna
ECN700
ECN408
ECN601
ECN401
