Philips VES1.1E - 6.3 Reset circuit; CI interface; CI Interface Power Switch

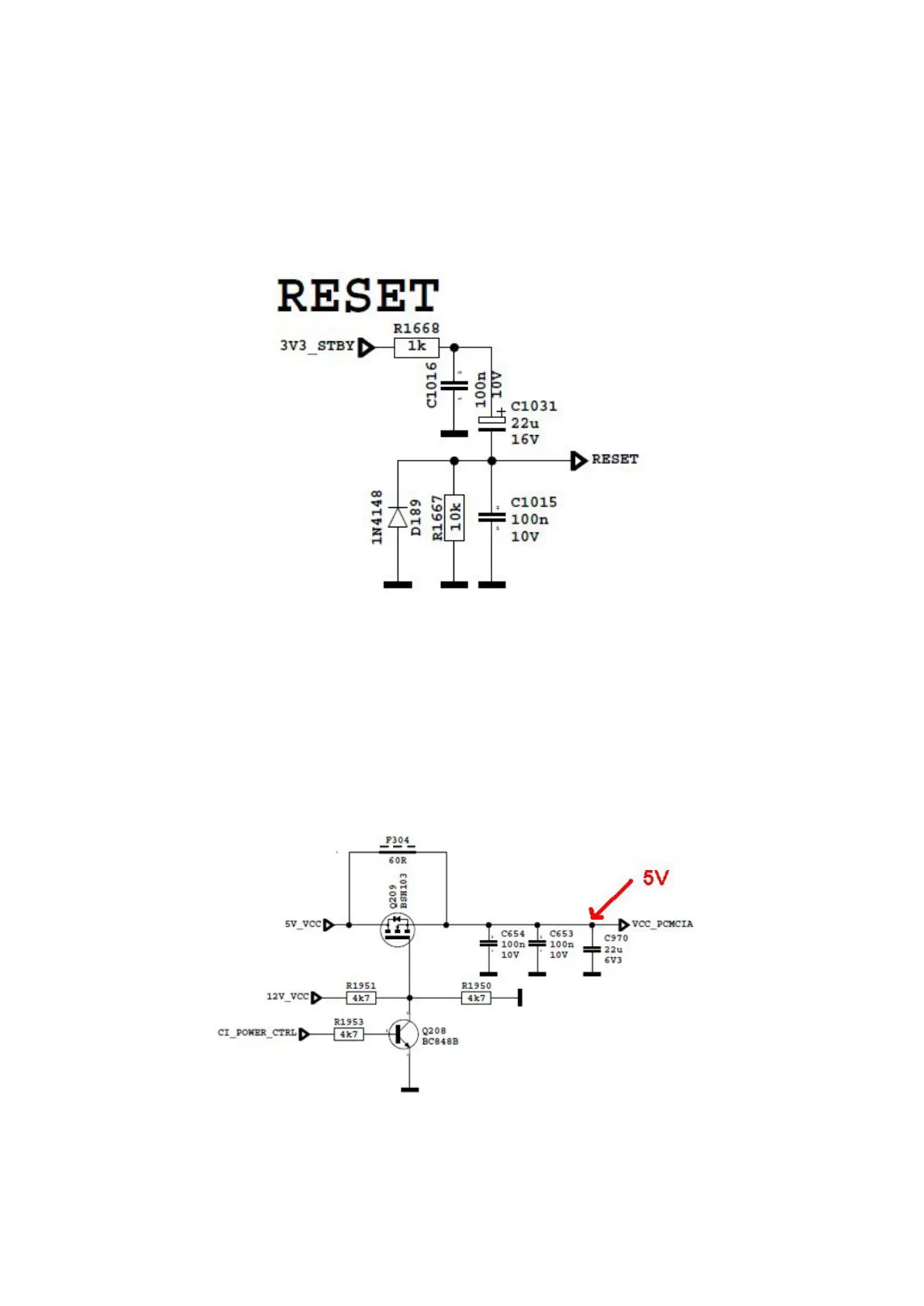

6.3 Reset circuit
Reset circuit using for initiliazing main Mstar IC. Reset condition is high and nomal
working condition is low for RESET pin.
7 CI interface
CI Interface Power Switch:
It is used for CI module supply, when Module is inserted (it means CI detect is low) This
circuit is opened or closed by CI_POWER_CTRL port of main uController
