25.3 LED blinking problem
Problem: LED blinking, no other operation

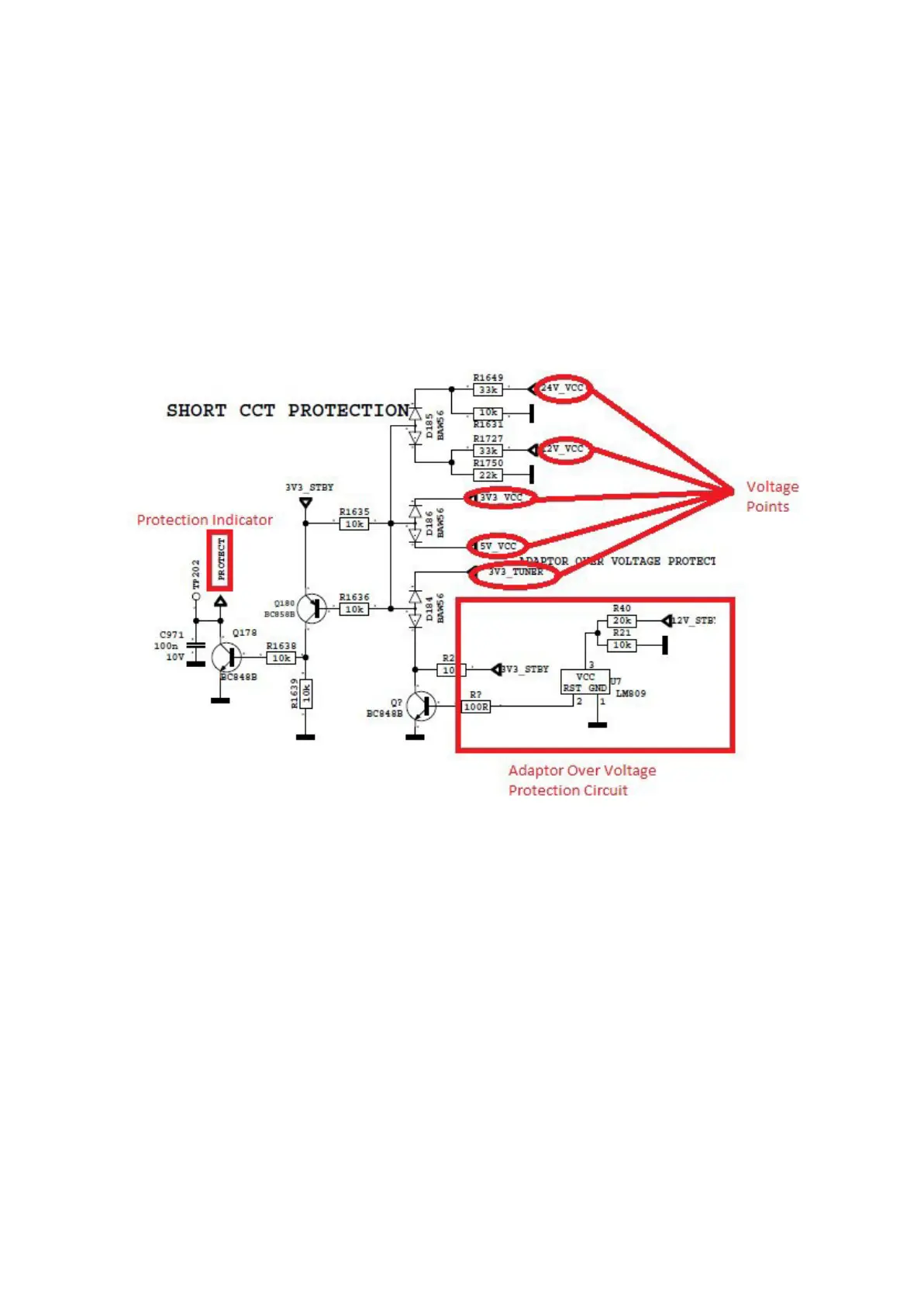

This problem indicates a short on Vcc voltages. Protect pin should be logic high while
normal operation. When there is a short circuit protect pin will be logic low. If you detect
logic low on protect pin, unplug the TV set and control voltage points with a multimeter to
find the shorted voltage to ground.
25.4 IR problem
Problem: LED or IR not working
Check LED card supply on the SSB.
