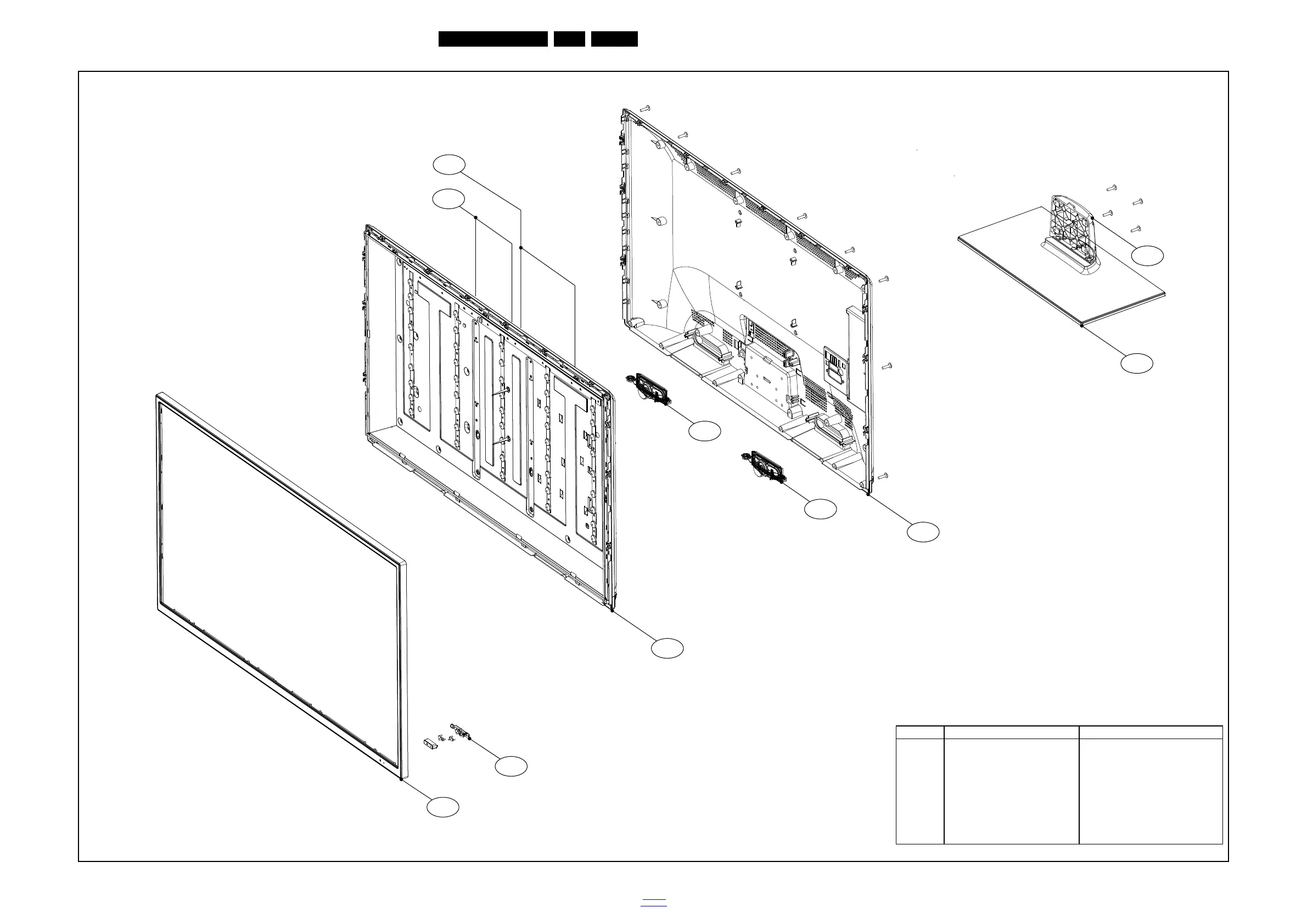

11.2 3000 series 39"
19421_800_130425.eps
130513
3000 series 39"
FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9
Pos No. Description Remarks
M1 LCD panel
M2 SSB (Small Signal Board)
M3 PSU (Power Supply Unit)
M5 Loudspeaker
M6 IR Board
M8 Front Cabinet
M9 Back Cabinet
M10 Remote Control Not displayed
M11 Detachable AC Cord Not displayed
M12 Stand (Neck)
M14 Stand (Base)
M1
M5
M5
M3
M9
M14
M12
M8
M2
M6
