11. Styling Sheets

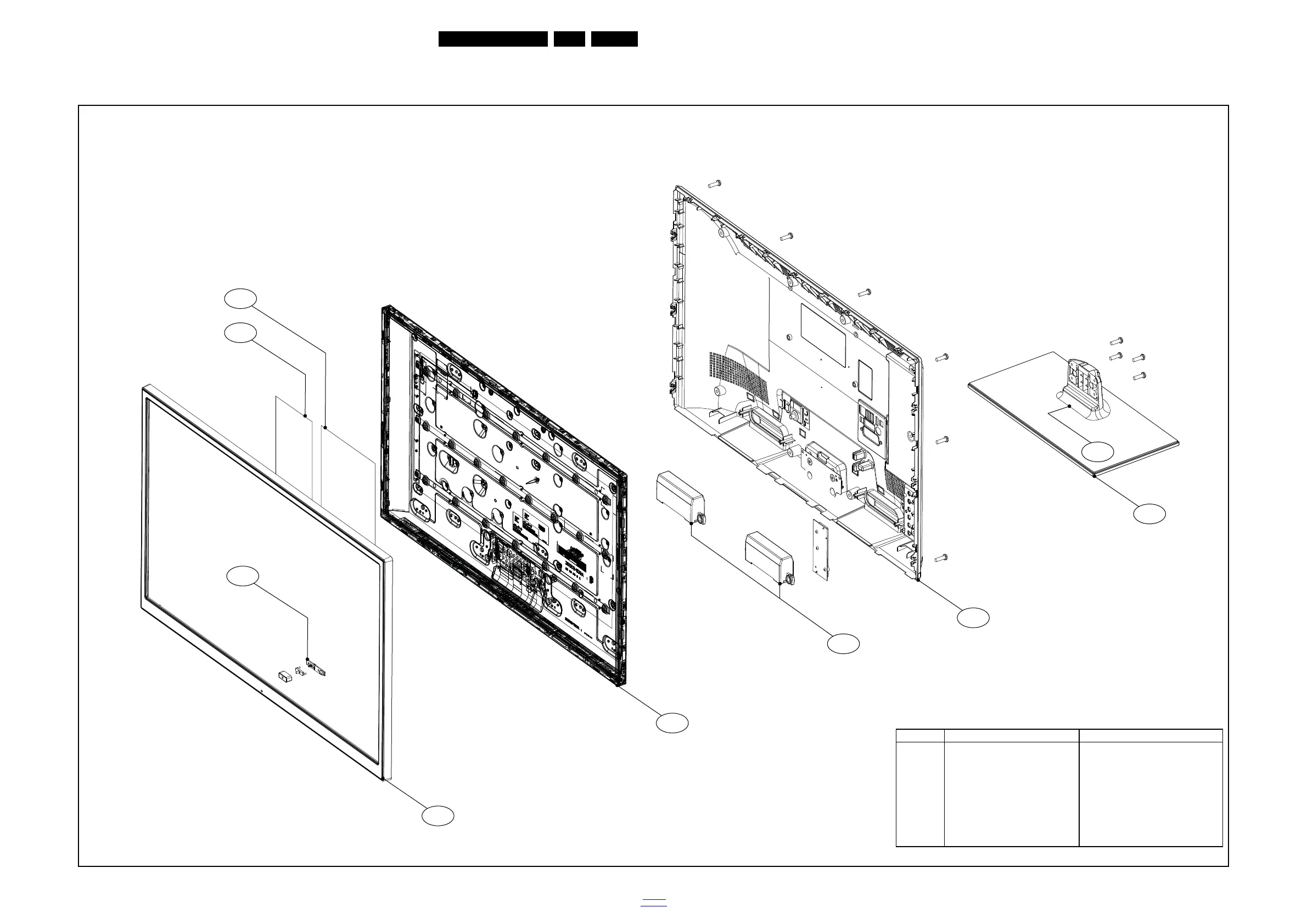

11.1 3000 series 32"
19420_800_130314.eps
130314
3000 series 32"
Pos No. Description Remarks
M1 LCD panel
M2 SSB (Small Signal Board)
M3 PSU (Power Supply Unit)
M5 Loudspeaker
M6 IR Board
M8 Front Cabinet
M9 Back Cabinet
M10 Remote Control Not displayed
M11 Detachable AC Cord Not displayed
M12 Stand (Neck)
M14 Stand (Base)
FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9
M1
M2
M3
M9
M5
M14
M12
M8
M6
