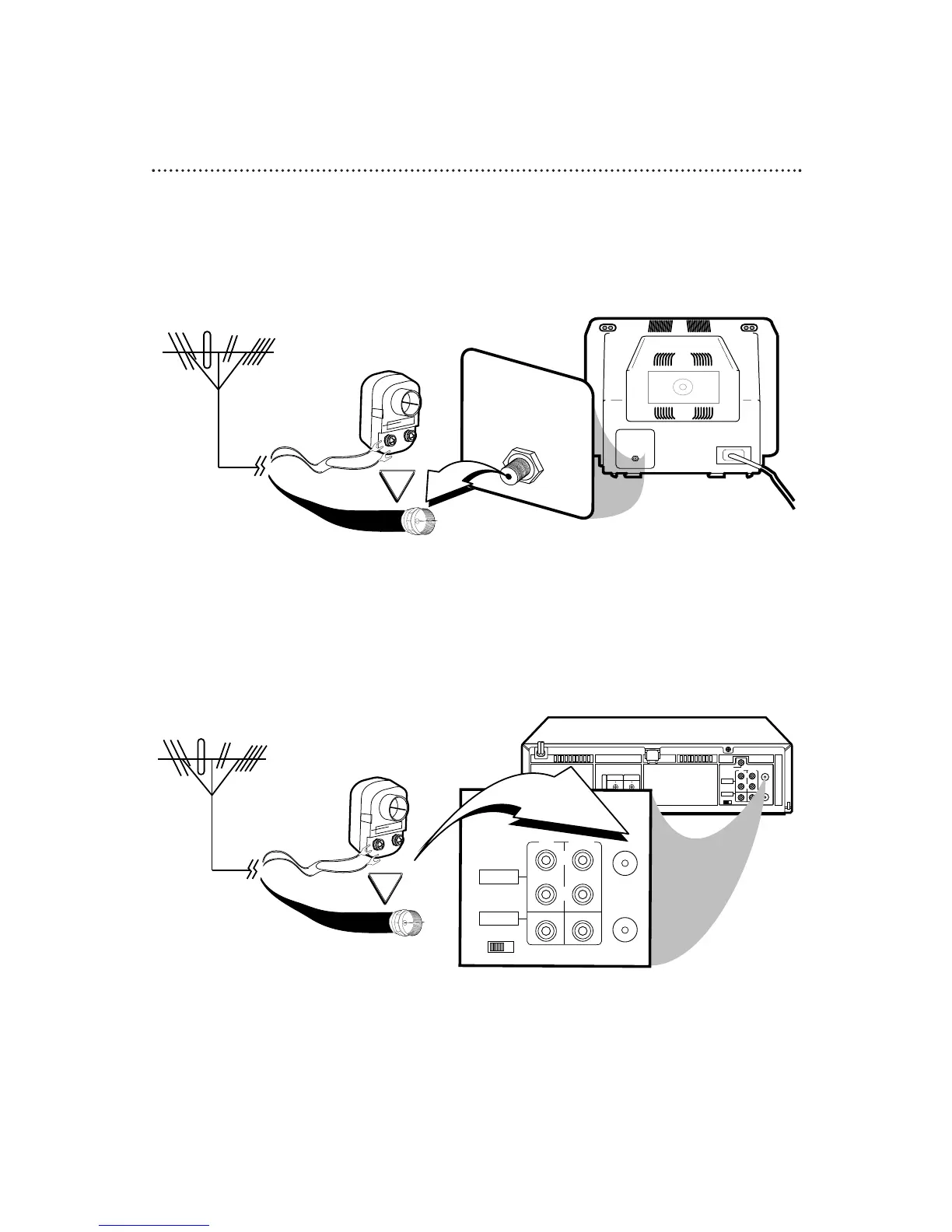

The basic VCR/TV connection – antenna/cable to VCR to TV – is shown below. If you have a Cable Box or
a Direct Broadcast System, please refer to pages 8-9. After you hook up the VCR, please go to pages 10-11
to turn on the VCR.
ANTENNA IN
Jack
(on back of TV)
Cable
(75 ohm)
Antenna
Indoor/Outdoor
(300 ohm)
1
Disconnect the antenna or cable from your TV.
2
Connect the antenna or cable to the ANT(enna) IN Jack on the back of the
VCR.
Cable
(75 ohm)
Antenna
Indoor/Outdoor
(300 ohm)
