Phoenix Contact Basicline 2 Series User Manual

BL2 ...1000/2000/7000
8/36
PHOENIX CONTACT 3799_en_D
3.1.1 Wall mount (BL2 BPC ...)

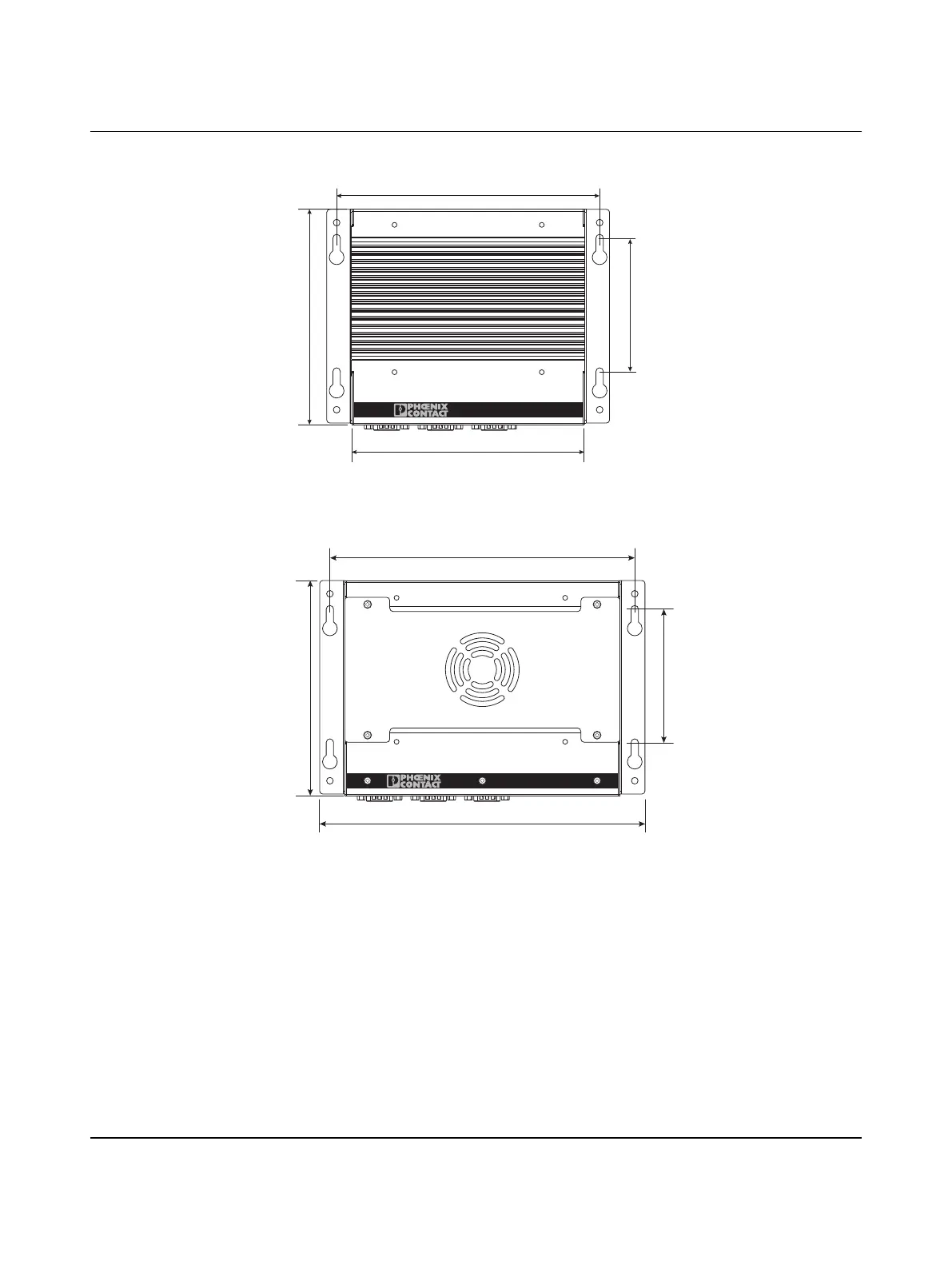

Figure 3-1 Mounting dimensions (BL2 BPC 1000, BL2 BPC 2000)
Figure 3-2 Mounting dimensions (BL2 BPC 7000)
Installation
1. Use the BL2 BPC ... as a template (or the dimensions shown in Figure 3-1 or
Figure 3-2) and mark the locations of the holes on the mounting surface.
2. Use the correct anchor type for the mounting surface and securely attach the
BL2 BPC ... to the wall. Ensure that the attaching hardware is in the small section of the
keyholes.
Removal
1. Remove power and disconnect cables to the IPC.
2. Loosen and remove the screws securing the IPC to the mounting surface.
178
161
90
146
207
186
90
146
