Installation
3799_en_D PHOENIX CONTACT 11/36
3.2 Interfaces

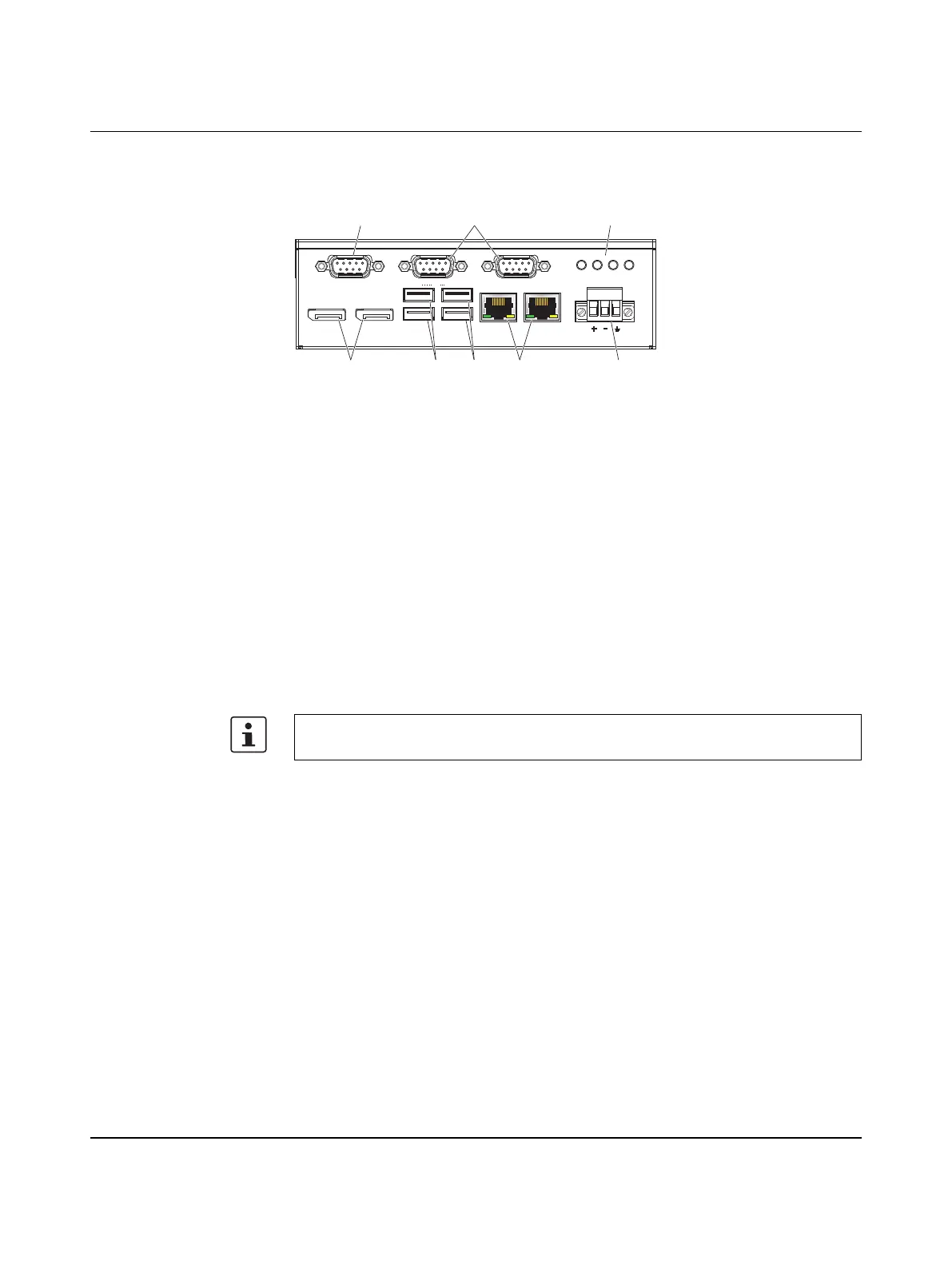

Figure 3-6 Connectors and ports
After mounting the BL2 ...1000/2000/7000, make any necessary cable connections (see
Figure 3-6).
The available connectors are:
– Ethernet (ETH): Two RJ45 connectors allow the computer to communicate on a
10/100/1000 Base-T Ethernet network.
– Serial (COM): Three D-SUB 9 serial ports are available for use. Two ports are set as
RS-232 while one port is configurable as either RS-232, RS-422, or RS-485.
– USB (USB): USB devices connect using Type A connectors. Two ports are USB 2.0
and two are USB 3.0 ports.
– DisplayPort (DP): These ports connect the BL2 ...1000/2000/7000 to external digital
displays with a corresponding DP++ connector.
– Mini PCIe: This internal slot allows installation of a mini PCIe card (see “Mass storage”
on page 21).
External display
External displays can be connected to the DP ports of the BL2 ...1000/2000/7000. The
BL2 BPC ... supports up to three external displays and the BL2 PPC ... supports up to two
external displays.
1 Power connector
2 Ethernet RJ45 ports
3 USB 3.0 connectors
4 USB 2.0 connectors
5 DisplayPort connectors
6 Configurable RS-232/422/485 serial port
7 RS-232 serial ports
8 Status LEDs
12345
6789
X11: COM
X10: COM
X12: COM
X8: DPX9: DP X6: USB
X7: USB
X4: USB
X5: USB
X2: ETH
ERROR RUN SATA PWR
X1: PWR 24VDC
X3: ETH
1
6 87
325 4
USB 3.0 ports utilize a blue connector. USB 2.0 ports are black.
