CBMC E4 ... IOL
34 / 44 PHOENIX CONTACT 108147_en_00

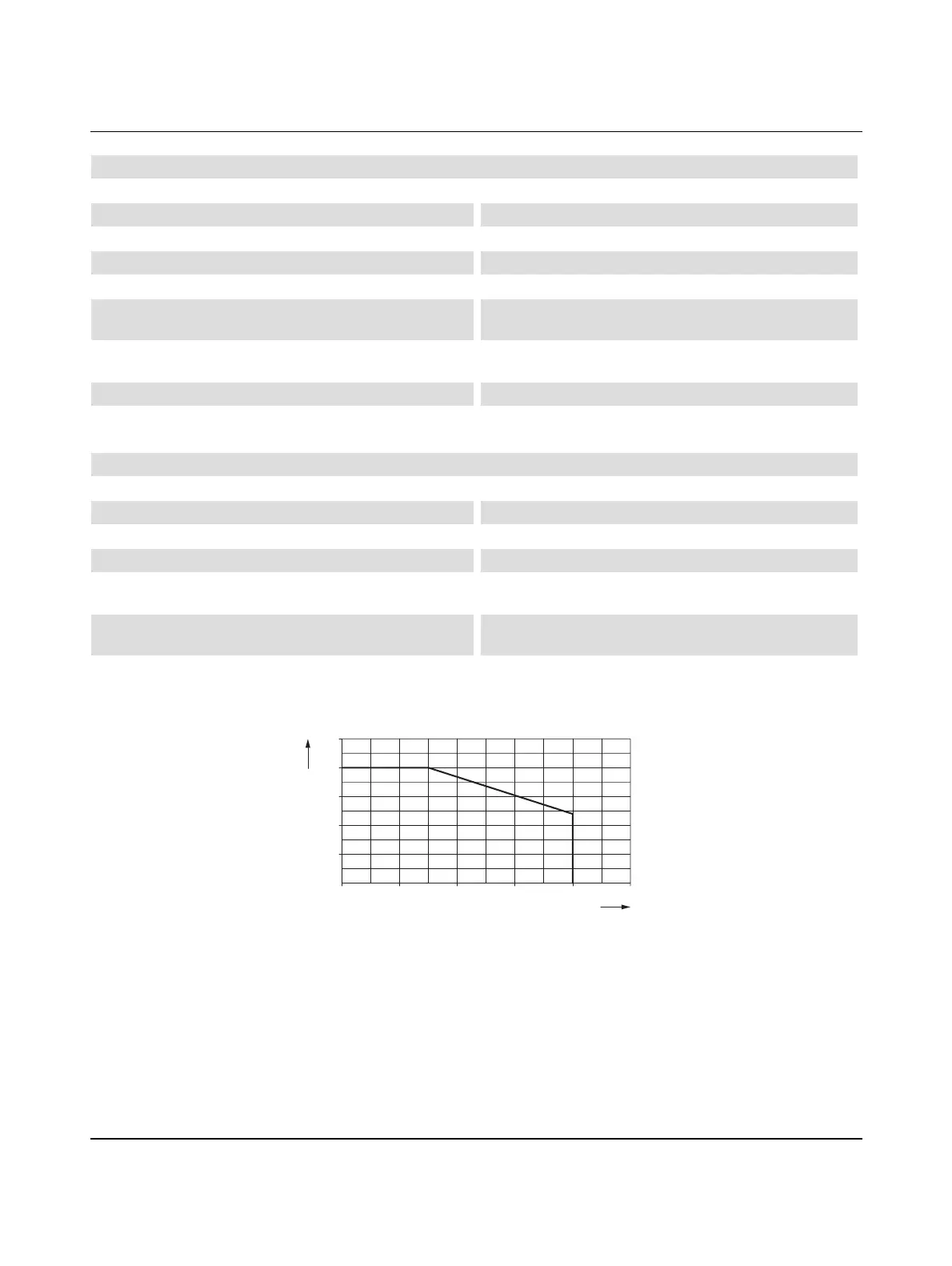

A 1.1 Derating
Figure A-2 Derating
Remote indication contact
Connection method Push-in connection
Switching function N/O contact
Stripping length 10 mm
Conductor cross section solid 0.2 mm² ... 2.5 mm²
AWG conductor cross section 24 ... 12
Conductor cross section flexible, with ferrule, with plastic
sleeve
0.25 mm² ... 1.5 mm²
Conductor cross section flexible, with ferrule, w/o plastic
sleeve
0.25 mm² ... 2.5 mm²
DC operating voltage 0 V DC ... 30 V DC
DC operating current 100 mA DC
IO-Link connection
Connection method Push-in connection
Stripping length 10 mm
Conductor cross section solid 0.2 mm² ... 1.5 mm²
AWG conductor cross section 24 ... 16
Conductor cross section flexible, with ferrule, with plastic
sleeve
0.2 mm² ... 0.75 mm²
Conductor cross section flexible, with ferrule, w/o plastic
sleeve
0.25 mm² ... 1.5 mm²
I [A]
T [°C]
30
20
10
40
50
20 705030 40 60
