AM844D

Digital Effect Engine

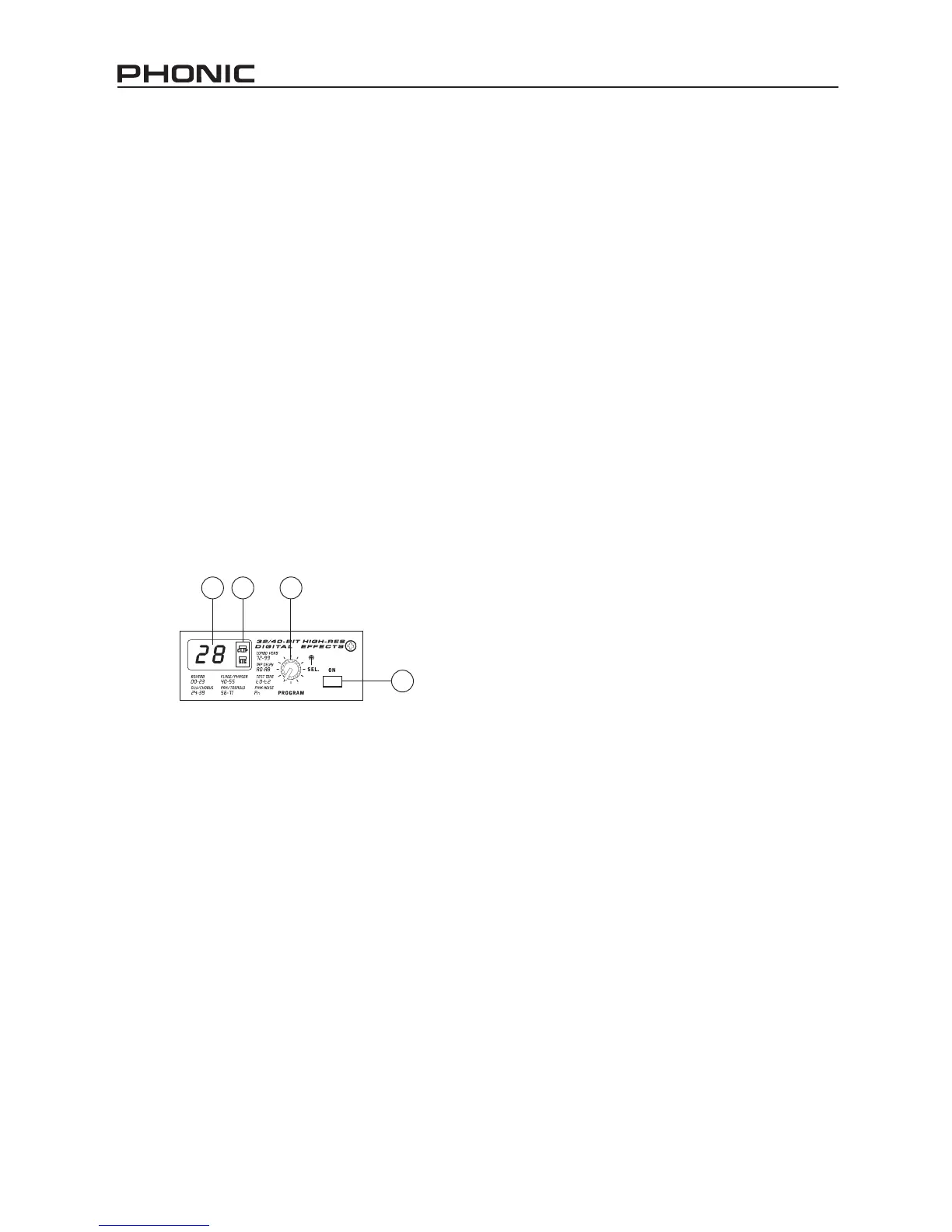

33. Digital Effect Display

This 2-digital numeric display shows the program

number that is currently applied to your EFX au-

dio signal. When you rotate the Program control,

you can scroll through different program numbers;

however the display will revert back to the original

program if a new program is not selected within a

few seconds. For a list of available effects, please

observe the Digital Effect Table.

34. Sig and Clip Indicators

Located within the Digital Effect Display are Clip and

Sig LEDs. The Sig LED will light up when any sig-

nal is received by the effect processor, and the Clip

LED will light up shortly before excessive signals are

dynamically clipped. If the Clip LED lights up too of-

ten, it may be advisable to turn down one or all EFX

controls on input channels to ensure the signal level

is not too high.

35. Program Control

This control is used to scroll through the various ef-

fects. Turning the control clockwise will allow users

to ascend into higher program numbers, and turning

it counter-clockwise will allow users to descend into

lower program numbers. Pushing this control will

apply the new effect. When a tap-delay effect is se-

lected, pressing this control will allow users to select

the tap-delay time.

By pushing the button several times, the effect pro-

cessor interprets the time between last two pushes

and remembers this as the delay time, until the

button is pushed again (this is kept, even after the

power is turned off). When the tap delay effect is se-

lected, a small LED will ash within the digital effect

display window at the selected intervals.

36. Effect On Button

This button is pushed to turn the internal effect pro-

cessor on or off.

33 34 35

Phonic AM844D User Manual
