PI N470 Series User Manual

10 Technical Data
42 Version: 1.2.0 MP125E N-470 Linear Actuator
The following graph shows the duty cycle in % depending on the number of steps per second.

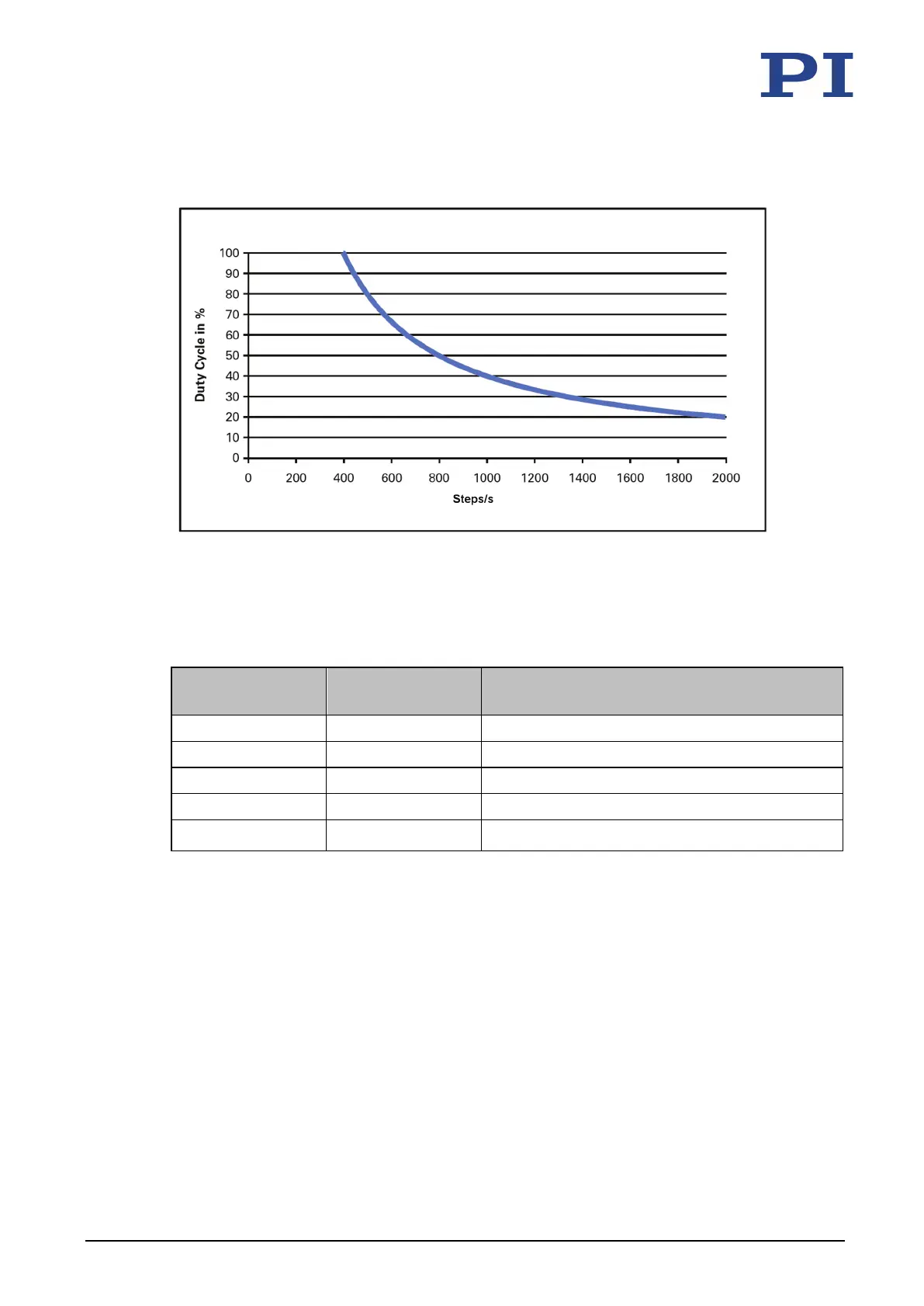

Figure 14: Duty cycle in % vs. steps/s
Vacuum-compatible models
Number of steps
per second*
Operating time Duty cycle (max.) / idle time
2000 60 s (max.) 10 % / 9 min
2000 10 s 10 % / 90 s
1000
120 s (max.)
20 % / 8 min
1000
10 s
20 % / 40 s
≤200
unlimited unlimited
* To be set via the Maximum Motor Output operating parameter (0x9) for the E-872.401
respectively PIShift Steps per Second for the E-870.
