13_35
Troubleshooting / What to do if... (13_34, 13_35)

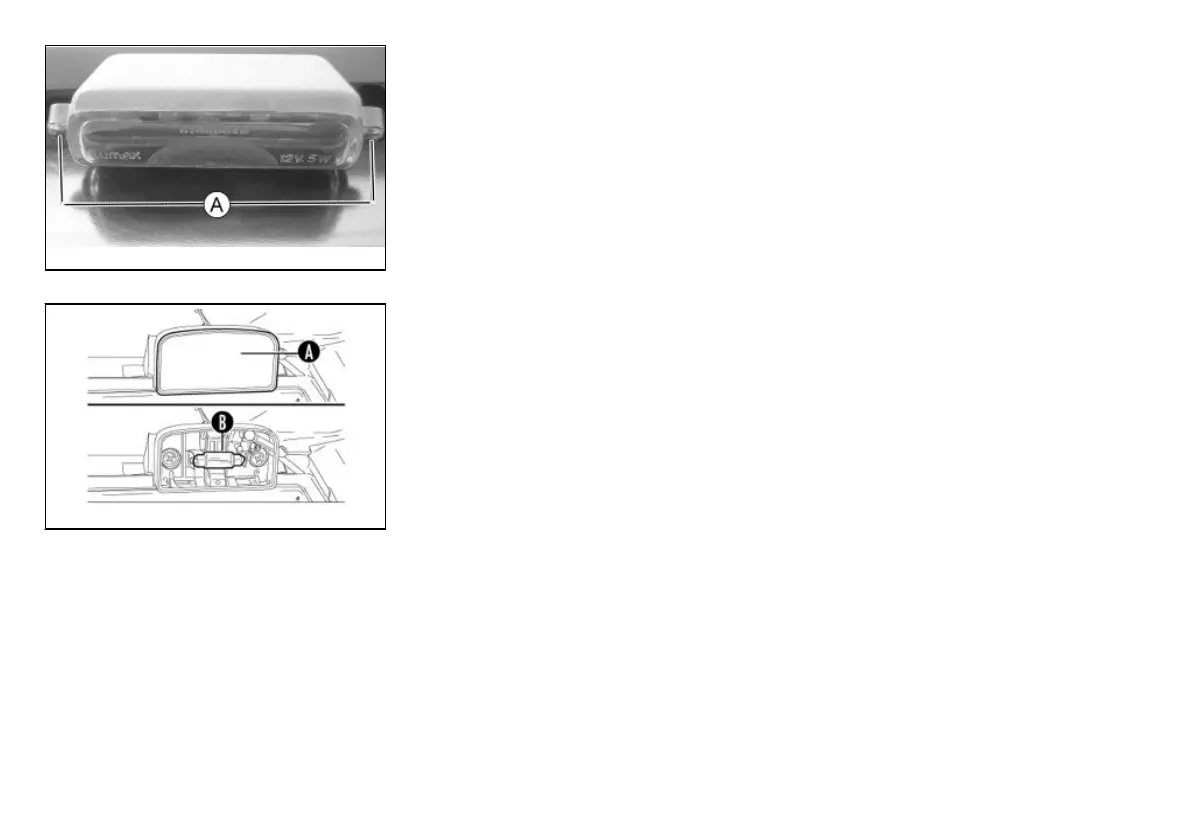

Number plate light
In order to remove the number plate light bulb, proceed as follows:
1. Remove the screw «A» fixing the bulb cover.
2. Replace the bulb and reassemble.
13_36
Troubleshooting / What to do if... (13_35, 13_36)
Front ceiling light
The cabin is provided with a courtesy light located above the internal rear-view mirror,
whose switch is located on the glass bowl.
To replace bulb «B», remove snap-on lens «A» by hand.
103
