Troubleshooting / What to do if... (13_36, 13_37, 13_38)

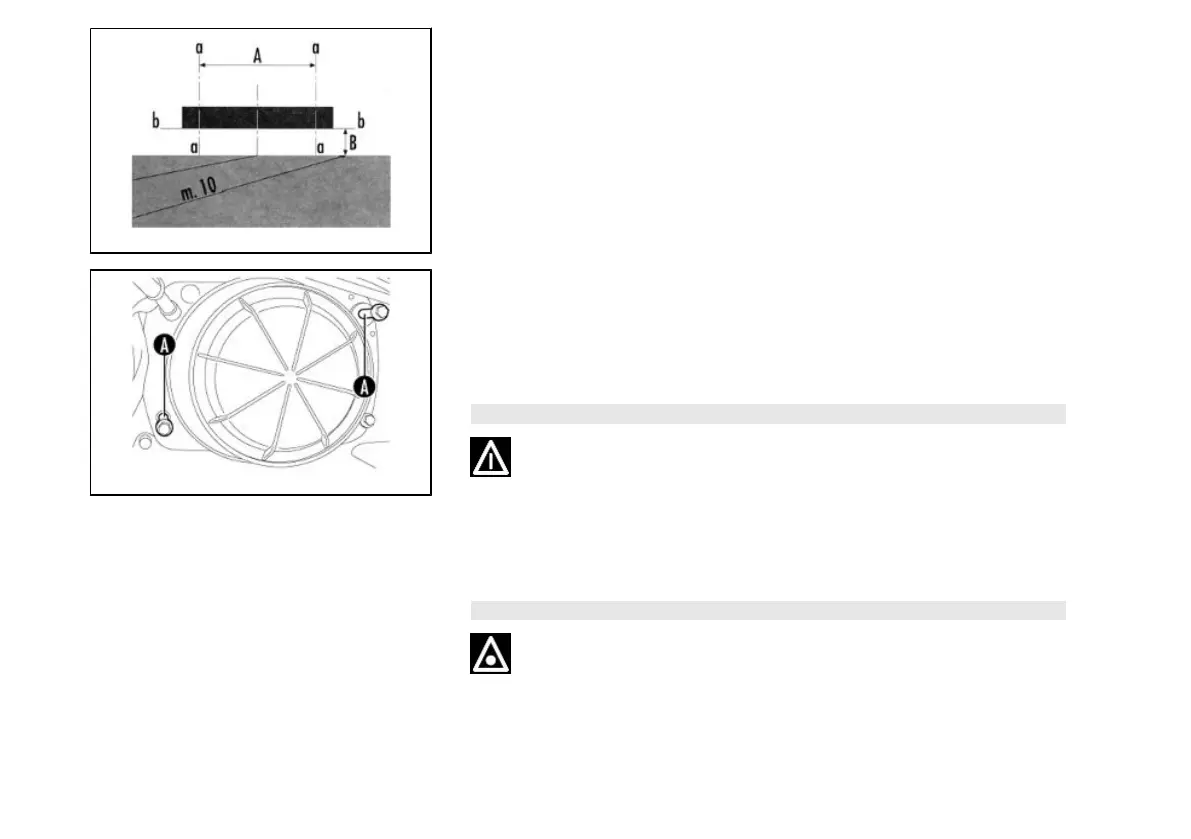

Headlights adjustment
Proceed as follows:
1. Place the vehicle in conditions of use, without load, with the tyres inflated as pre-
scribed, on flat ground at 10 m from a white screen in the shade. Make sure the vehicle
axis is perpendicular to the screen;
2. Draw two vertical lines «a-a» at a distance «A» corresponding to the distance be-
tween headlight axes. Draw a horizontal line «b-b» at height «B» from ground
corresponding to the headlight centre height from ground multiplied by 0.9;
3. Start the engine and lock the throttle twist grip at approximately 1/3 of its travel.
Switch the dipped beam headlight on. Direct the beam so that the horizontal line be-
tween the light and the shade falls above the horizontal line «b-b» drawn on the
screen;
4. If this is not so, adjust the headlight by means of the two screws «A» to correct any
beam alterations.
CAUTION
THE ADJUSTMENT OF THE HEADLIGHTS ORIENTATION IS AN OPERATION
THAT, IF NOT PERFORMED PROPERLY, INFRINGES ON A SPECIFIC RULE OF
THE ROAD CIRCULATION CODE. FOR CHECKING AND ADJUSTING THE AIM
OF THE HEADLIGHTS, WE SUGGEST TO CONTACT A PIAGGIO DEALER OR
AUTHORISED SERVICE CENTRE.
CAUTION
BEFORE CARRYING OUT THE OPERATION FOR HEADLIGHTS AIMING, CHECK
THAT THE TYRES ARE INFLATED TO THE INDICATED PRESSURES.
