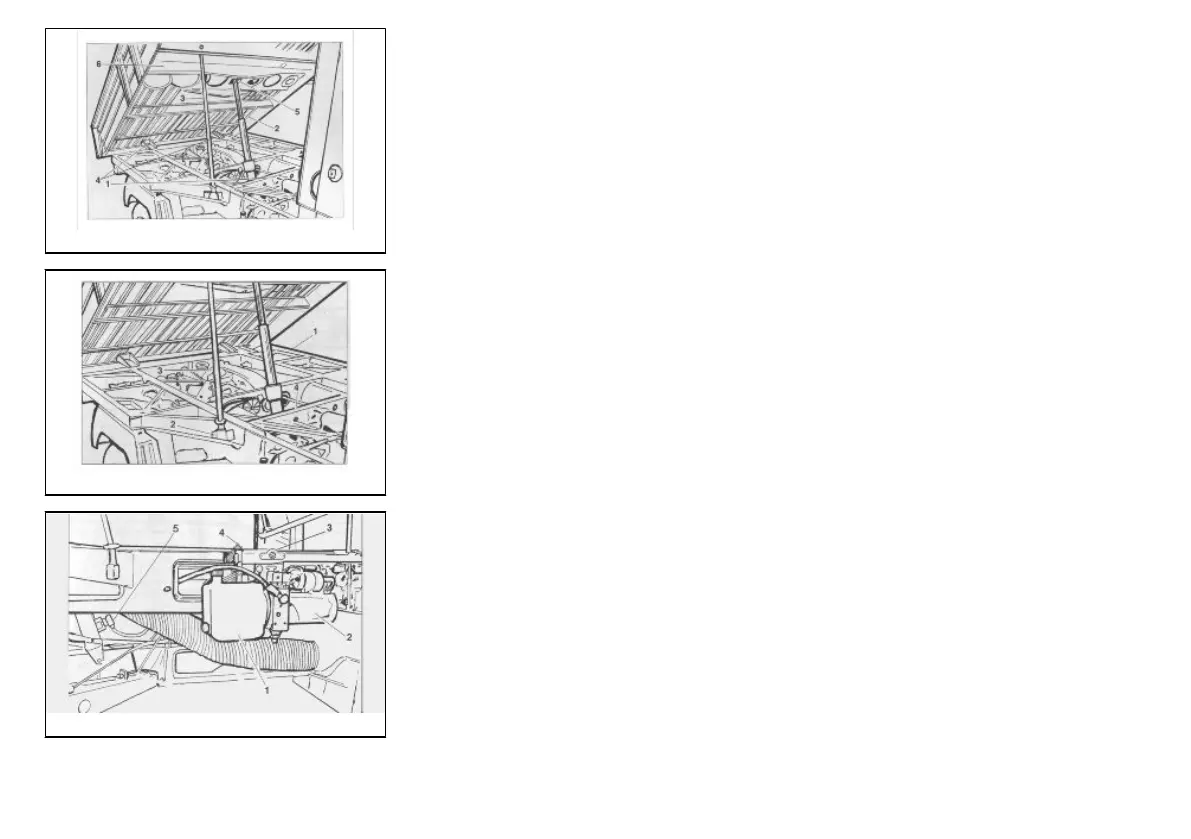

15_06
1. Base chassis.
2. Lifting jack stem.
3. Safety bar.
4. Body hinges.
5. Jack upper pivot attachment
6. Body reinforcing structure.
15_07
1. Vehicle's counter-chassis
2. Safety bar support.
3. Safety bar.
4. Base chassis.
•
Rear hinges fastened onto appropriate brackets, bolted onto the overhang of
rear chassis members.
15_08
1. Hydraulic fluid reservoir
2. Pump and pipe fittings connected to jack
3. Buzzer.
4. Switch for indicating lifted body and enabled vehicle start.
5. Drop valve inside the jack.
Hydraulic system consisting of:
•
- hydraulic fluid reservoir,
125
