- pump driven by an electrical motor powered by the vehicle's battery, dis-
tributor fitted with a by-pass valve,
•
- high-pressure pipelines connecting the pump to the jack,
•
- electrical system equipped with controls and safety devices;
Safety devices consisting of:
•
- switch for indicating lifted body,
•
- buzzer indicating lifted body,
•
- movable guard for activating the signalling switch ,
•
- body release lever
•
- tailgate release lever
•
- drop valve mechanism of the jack, which prevents the body overtravel in
case of a hydraulic system failure,
•
- manually-fitted safety bar hinged onto the body and fastened onto the coun-
ter-chassis by a retainer.
15_09

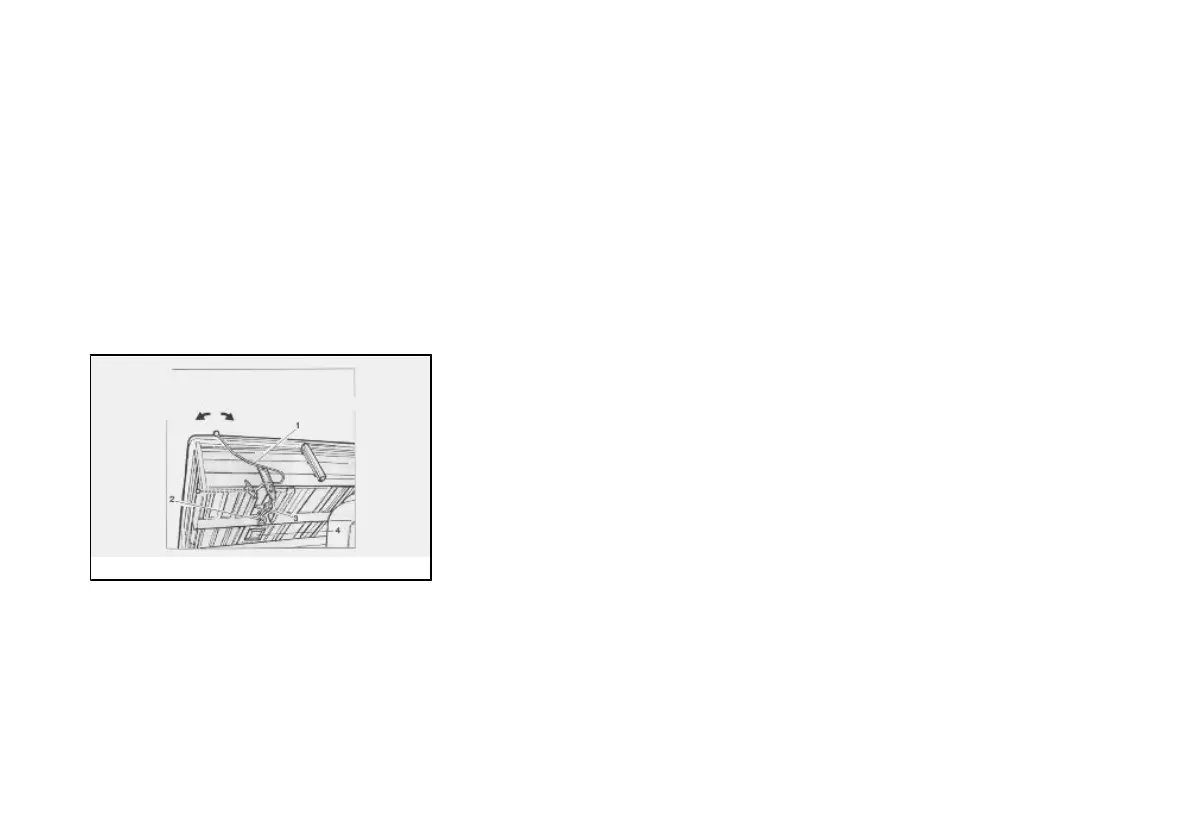

Tilting body front and locking lever.
1. Body release lever
2. Body attachment hook
3. Lever retracting spring.
4. Safety pushbutton guard.
126
