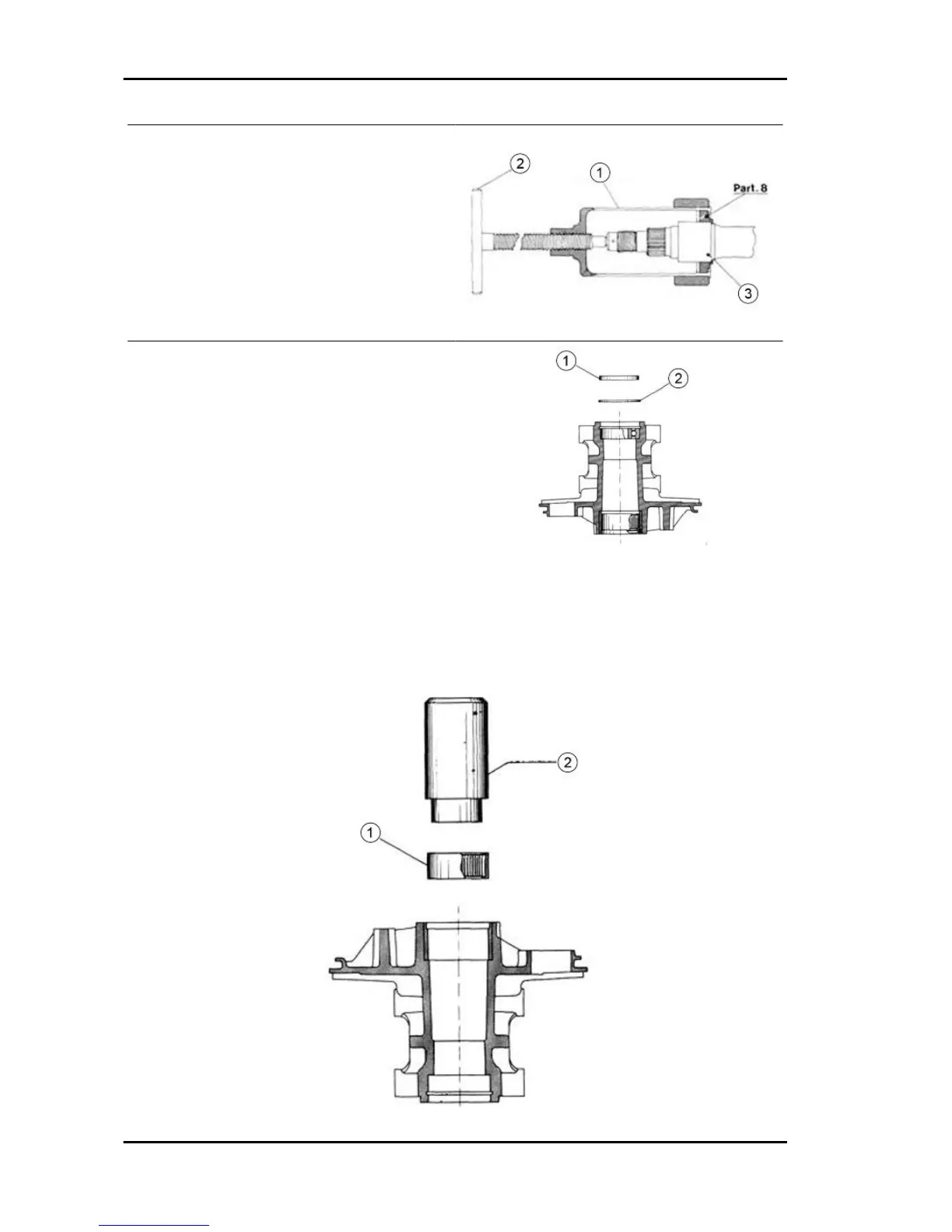

INTERNAL BUSHING FROM REAR WHEEL
AXLE ROLLER BEARING - REMOVAL
Apply the specific tool (1), fitted with the reduction
rings (comp. 8), as shown in the figure and move
tool handle (2) until the bushing (3) can be re-
moved from the roller bearing.
SEALING RING AND CIRCLIP - REMOVAL
Use a screwdriver to take out the sealing ring (1)
and with the specific pliers remove the circlip (2)
that holds the bearing.
ROLLER BEARING ON REAR HUB - FITTING
Fit the roller bearing (1) using the special tool (2).
Specific tooling
19.1.20043 Rear wheel hub roller bearing fitting punch
Suspensions APE TM Benzina
SS - 128
