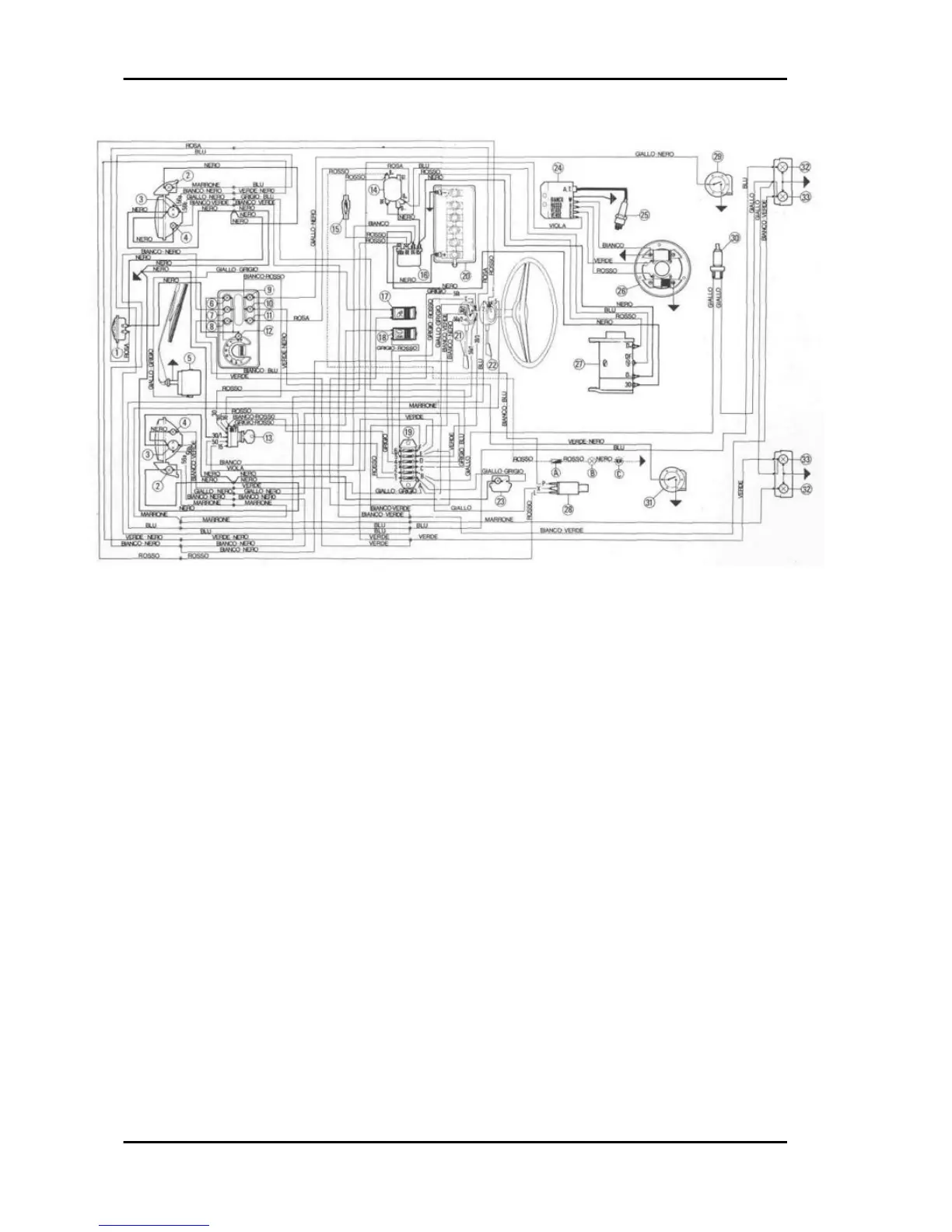

KEY:
1. Horn
2. Front turn indicators, 12V-21W bulbs
3. High beam and low beam headlight, 12V-25/25W twin-filament lamp
4. Front position indicators, 12V-4W bulbs
5. Windscreen wiper
6. Warning light, daylight running lights on (green light), "All Glass" lamp 12 V - 1.2 W
7. Warning light, high beam lights on (blue light), "All Glass" lamp 12 V - 1.2 W
8. Warning light of turn indicators operation (green light), "All Glass" lamp 12 V - 1.2 W
9. Oil reserve warning light (red light), "All Glass" lamp 12 V - 1.2 W
10. Fuel reserve warning light (amber light), "All Glass" lamp 12 V - 1.2 W
11. Warning light indicating dynamo battery charger low voltage (red light), "All Glass" lamp 12 V - 1.2
W
12. "All Glass" lamp for lighting odometer 12 V - 1.2 W
13. Engine start-up switch
14.Voltage regulator
15. Protection fuse 25A
16.Remote control
17. Windscreen wiper switch
18. Switch for external lighting
19. Protection 8A fuse valves to electrical system
Electrical system APE TM Benzina
ES - 52
