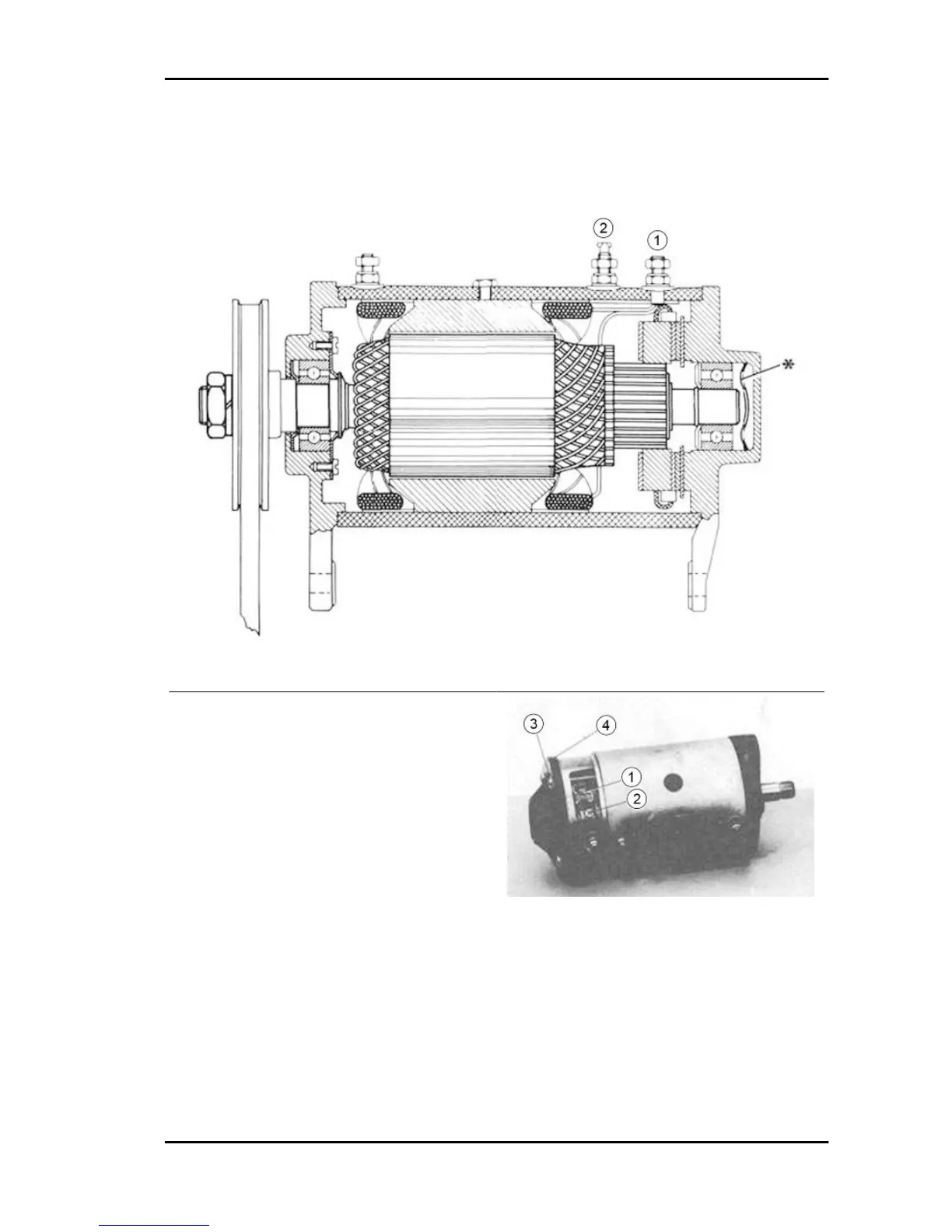

If the dynamotor is de-energized (inability to generate power for lack of residual magnetism) reenergize
as follows: rotate the Dynamotor 2000 - 3000g /1 ', disconnect the regulator and connect for 3 to 4 sec.
(2 to 3 times) the terminal (1) to the positive battery and the ground terminal (2).
DYNAMOTOR - REMOVAL
BRUSHES
Remove the protective strip, lift the spring (1) tak-
ing care not to exhaust it, slip off the brush and
remove it by removing the screw (2). Repeat the
operation for the rest of the brushes.
ROTOR
Remove the four screws (3) and remove the brush holding flange (4) paying attention to the flexible
washer (*) which must be repositioned at the time of replacement, then, if necessary, with light mallet
blows, remove the rotor.
APE TM Benzina Electrical system
ES - 63
