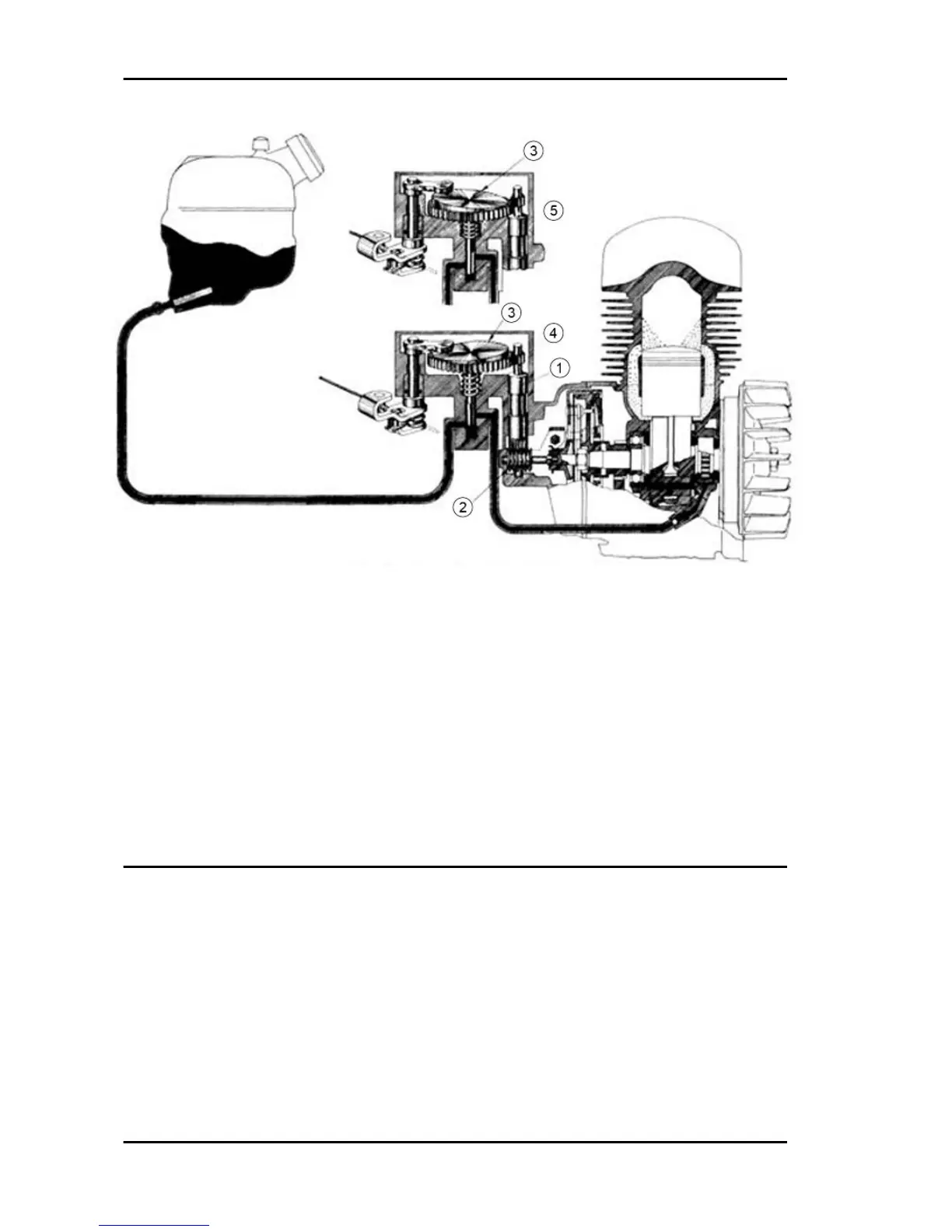

KEY:
3 = Oil piston.
4 = Piston (3) in position to sample oil from the tank.
5 = Piston (3) in position to deliver oil to the engine.
"L.S." DEVICE - APE TM KAT
For the "L.S." device of the version APE TM KAT, the same treatment applies that is given for the APE
TM version unless specific type of oil used.
Recommended products
AGIP CITY TEC 2T Oil for 2-stroke petrol engines
JASO FC, ISO-L-EGD Specifications
Engine APE TM Benzina
EN - 86
