FUSES TABLE
Fuse No. 1 Position on fuse holder:1
Capacity: 15A
Protected circuits: 12V-180W
Socket for electrical equipment -
Helmet compartment light -
Electrical saddle opening -
Antitheft device pre-installation

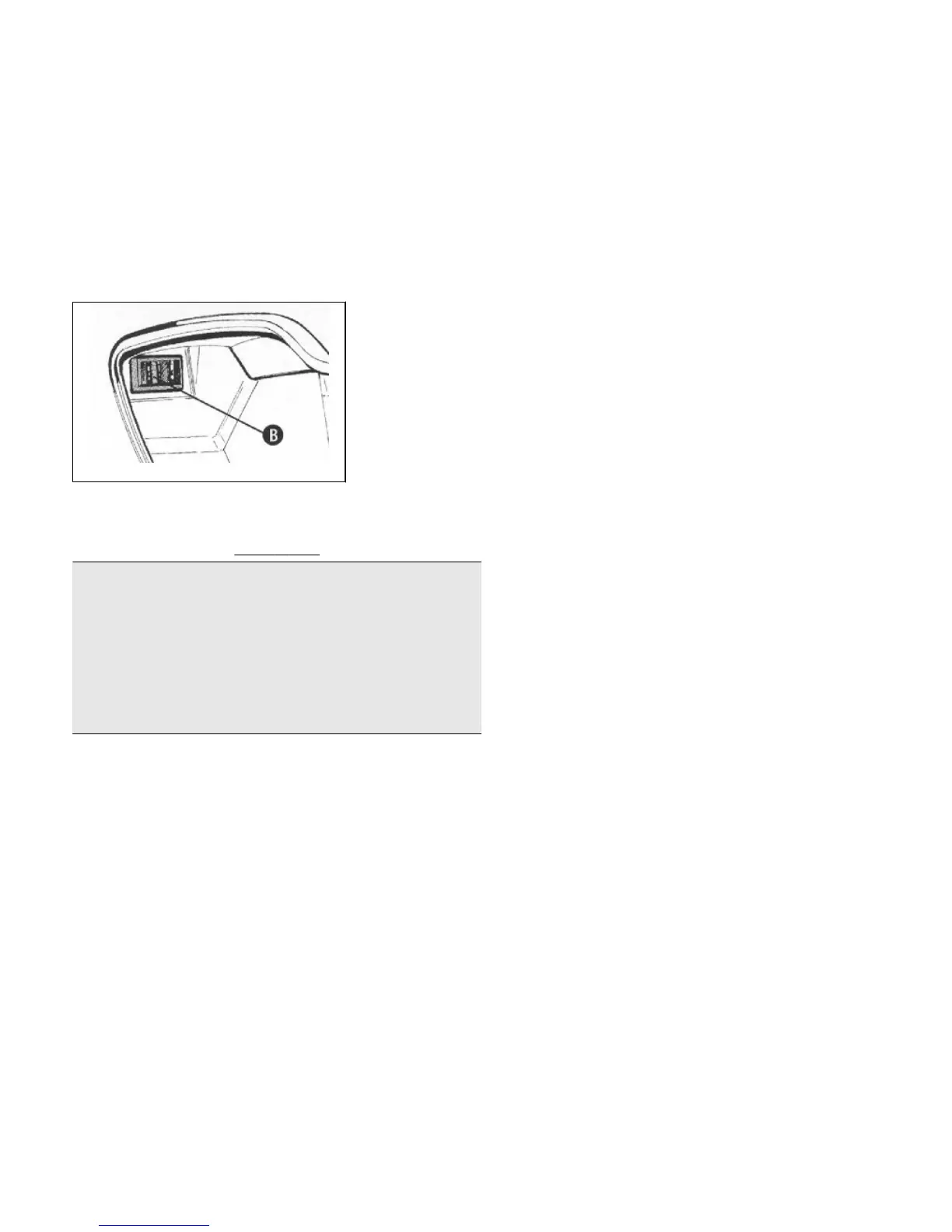

Location:helmet compartment
Fuse no. 2 Position on fuse holder: 2
Rating: 15A
Protected circuits: Radiator
electric fan - Battery recharging
circuit - Vehicle's lights - Antitheft
system pre-wiring voltage supply -
Electrical lines protected by fuses
4, 5, 6, 7, and 8
58
