I = Headset cables
N = Loudspeaker
Q = Vehicle satellite connector
T = Cable support plate
W = DOWN button
Z = Fixing of control unit to chassis
The control unit PICS X9 (B) combines in a single product the traditional function of intercom for motor-
riders and that of hadsfree kit for mobile phones and RDS radios.
The voice activation of the intercom function allows eliminating the ground noise caused by the wind It
can be enabled both in automatic and manual mode selecting the two available levels high/low.
Without passenger, the control unit can be used by the pilot as telephone handsfree and/or to listen to
the radio or to the external audio source.
The phone talk sets automatically to the pilot when the call signal is detected, but it can be switched to
the passenger and/or vice versa by the button (Y) located on the satellite.
The listening volume is adjusted by hand using buttons (R) and (X) for the two loudspeakers; this
adjustment affects the audio, intercom and telephone.
The control unit is provided with an auxiliary audio socket for a portable CD or cassette reader.
During the telephone conversation, the external source is disconnected from the conversation channel
and is restored at the end of the same.
The control unit is adapted to specific mobile phones by the telephone cable (D) (supplied separately).
N.B.
THE MOBILE PHONE-CONTROL UNIT INTERFACE CABLE IS AVAILABLE FOR MOST MOBILE
PHONES AVAILABLE ON THE MARKET. CHECK THE AVAILABILITY OF THE INTERFACE CA-
BLE FOR YOUR SPECIFIC MOBILE PHONE AT THE CONCESSIONAIRE'S.
The microphone stem is provided with an elastic
metal clip to fix it to the bottom edge of the helmet,
on the right side.
The loudspeaker (J) is fixed inside the helmet, at
the ear height, by an attachment velcro (N).

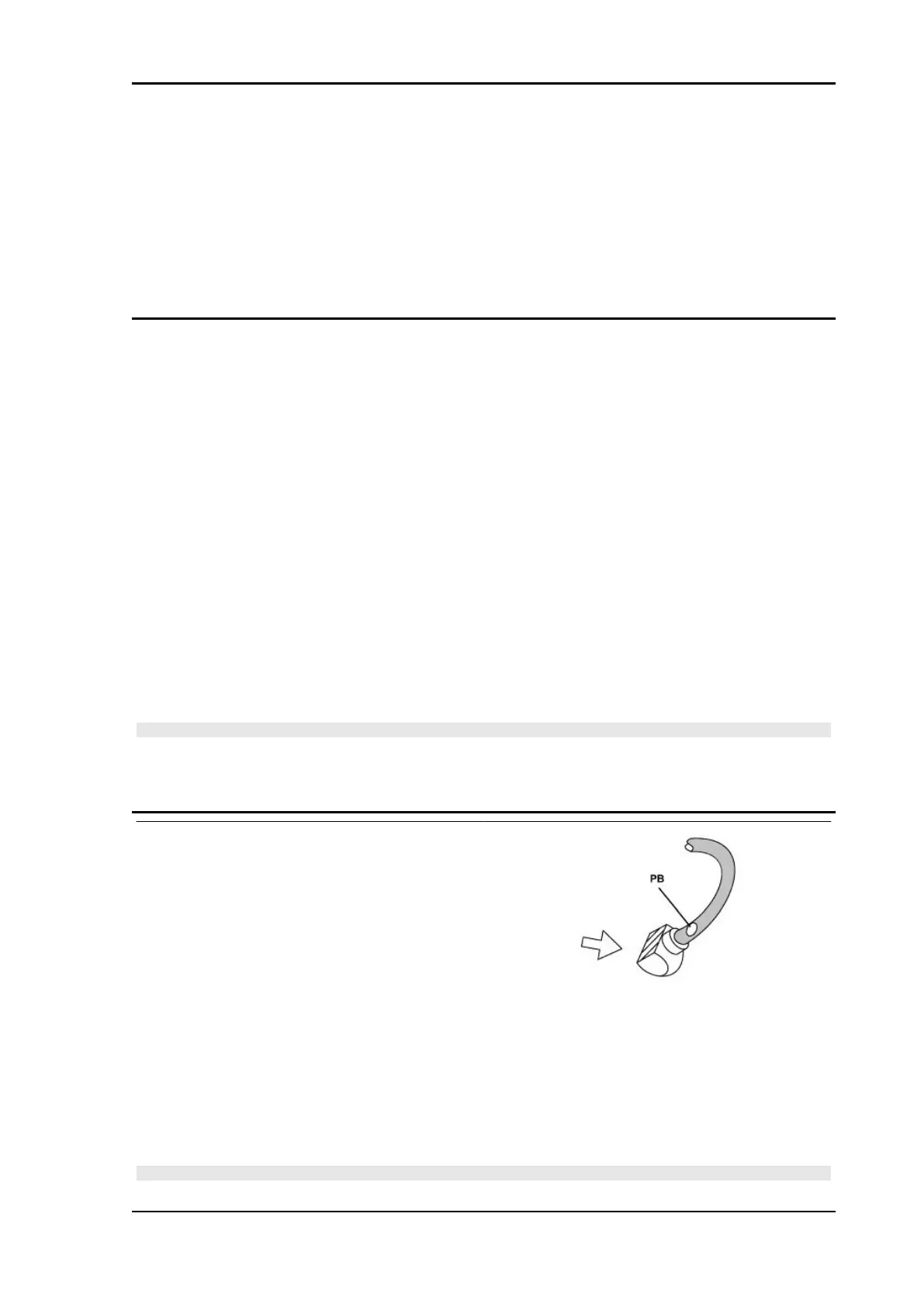

To optimise the intercom communication quality:
- For crash helmets, bend the microphone stem so
that the capsule is fully seated into the helmet, with
the white identification spot (see figure 2) facing
the mouth.
- For open helmets, bend the microphone stem so that the capsule sensitive part is as close as possible
to the mouth, using the white identification spot (see figure).
WARNING
X9 Evolution 500 Electrical system
ELE SYS - 69
