OPERATION
3-8 / Husky 3 Foam System
© 2022 Pierce Manufacturing Inc. All Rights Reserved.

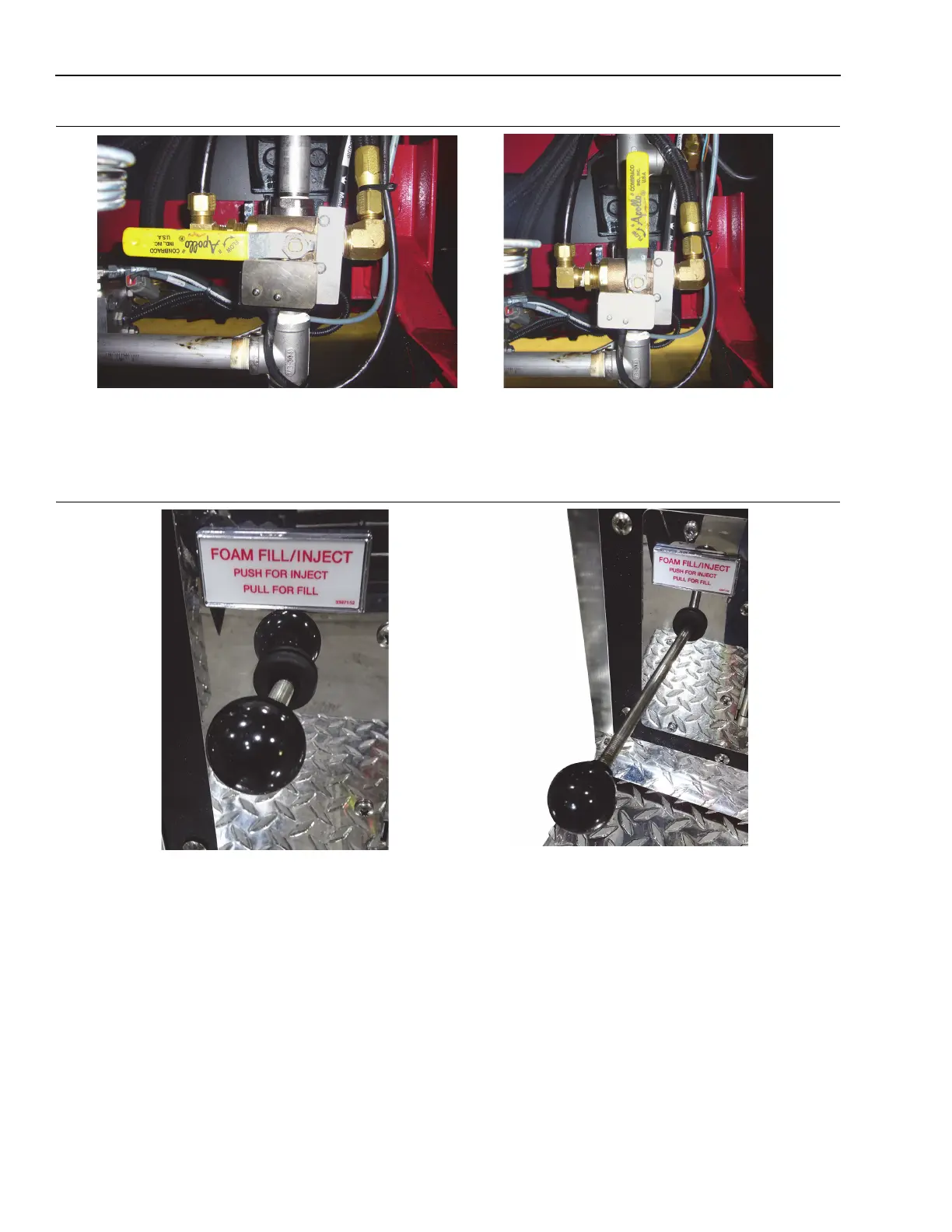

Figure 3-7: 2-way Foam Injection/Fill Valve (ALL except 100ft Ascendant Aerial Tower)
1320, 1337
Figure 3-8: 2-way Foam Injection/Fill Valve (100ft Ascendant Aerial Tower Only)
POM0931, POM0932
4. Place 2-way Foam Injection/Fill valve to Fill position.
Foam Inject Position Tank Fill Position
Foam Inject Position
Tank Fill Position
