16

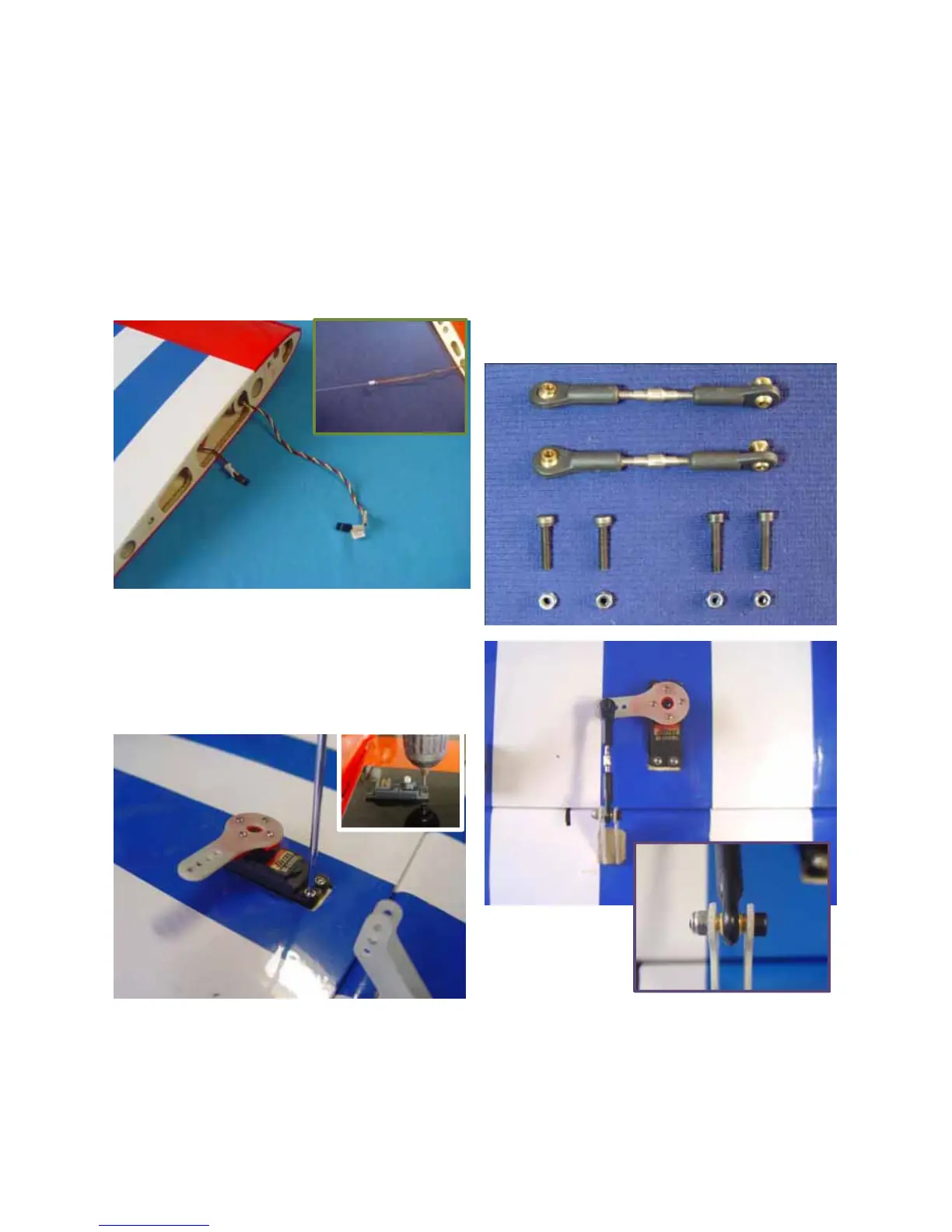

4. Pull the extension lead through to
the root of the wing.
5. Use a 1mm drill bit to drill for the
servo mounting screws. Install servo
with output shaft toward the leading
edge of the wing.
Wing servos
6. Install the servo arm facing
outboard toward the wing tip. Adjust
pushrod length so the servo arm is at
90 degrees and aileron panel in
neutral position.
