Throttle servo Installation
A drop of glue on nut
5. Finish the servo installation with
two additional mounting screws.

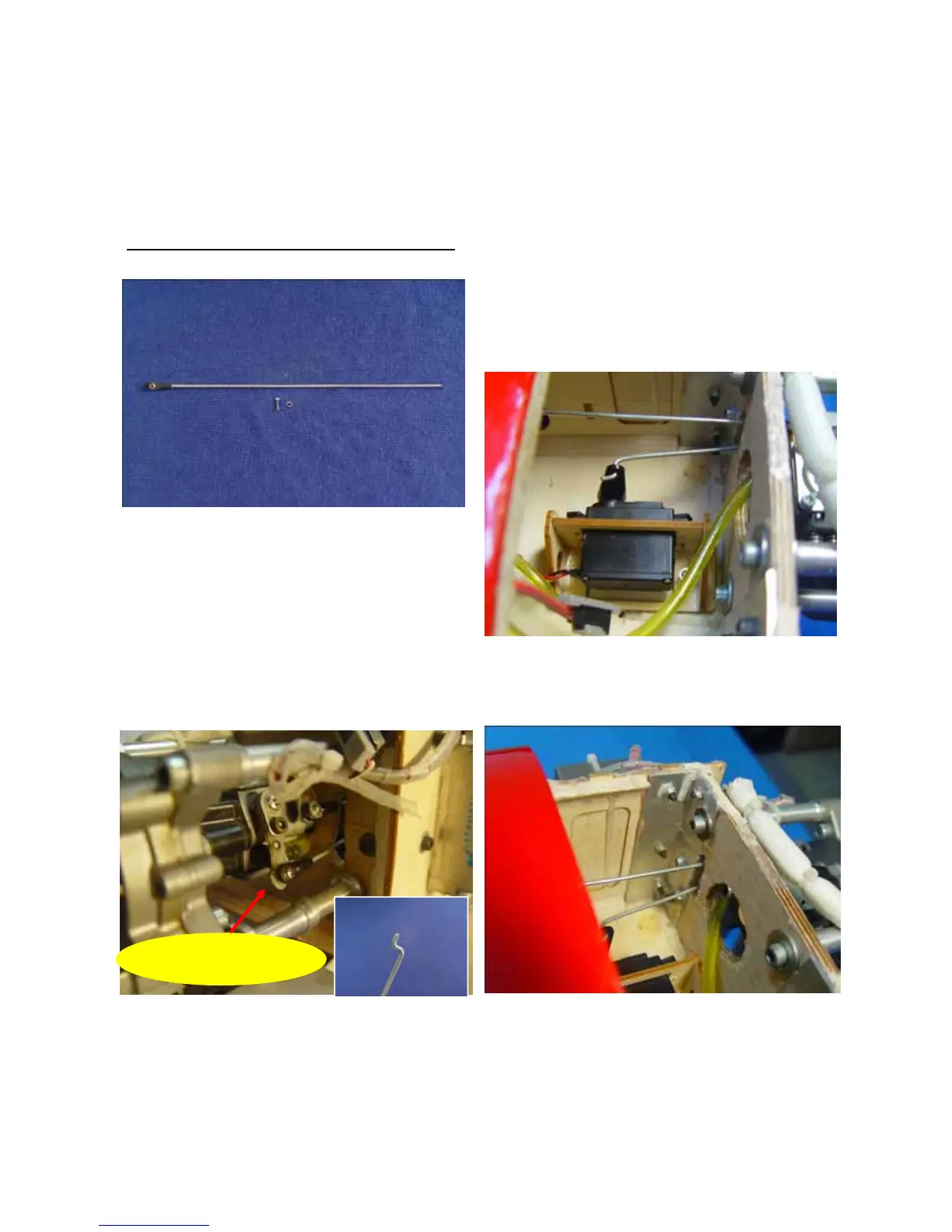

Throttle Servo Installation
1. Install the throttle servo in the
included mounting tray. Mount the
tray in the engine box behind the fire
wall. Make pushrod path is in a
straight line for a precise throttle
linkage connection. Epoxy and screw
the tray in place.
2. Make a hole for push rod path with
a Dremel tool. Measure and bend to a
sharp “Z” bend as shown. Cut off extra
length wire. Mount the throttle pushrod
ball end to the throttle arm and “Z”
bend to the servo arm.
