8

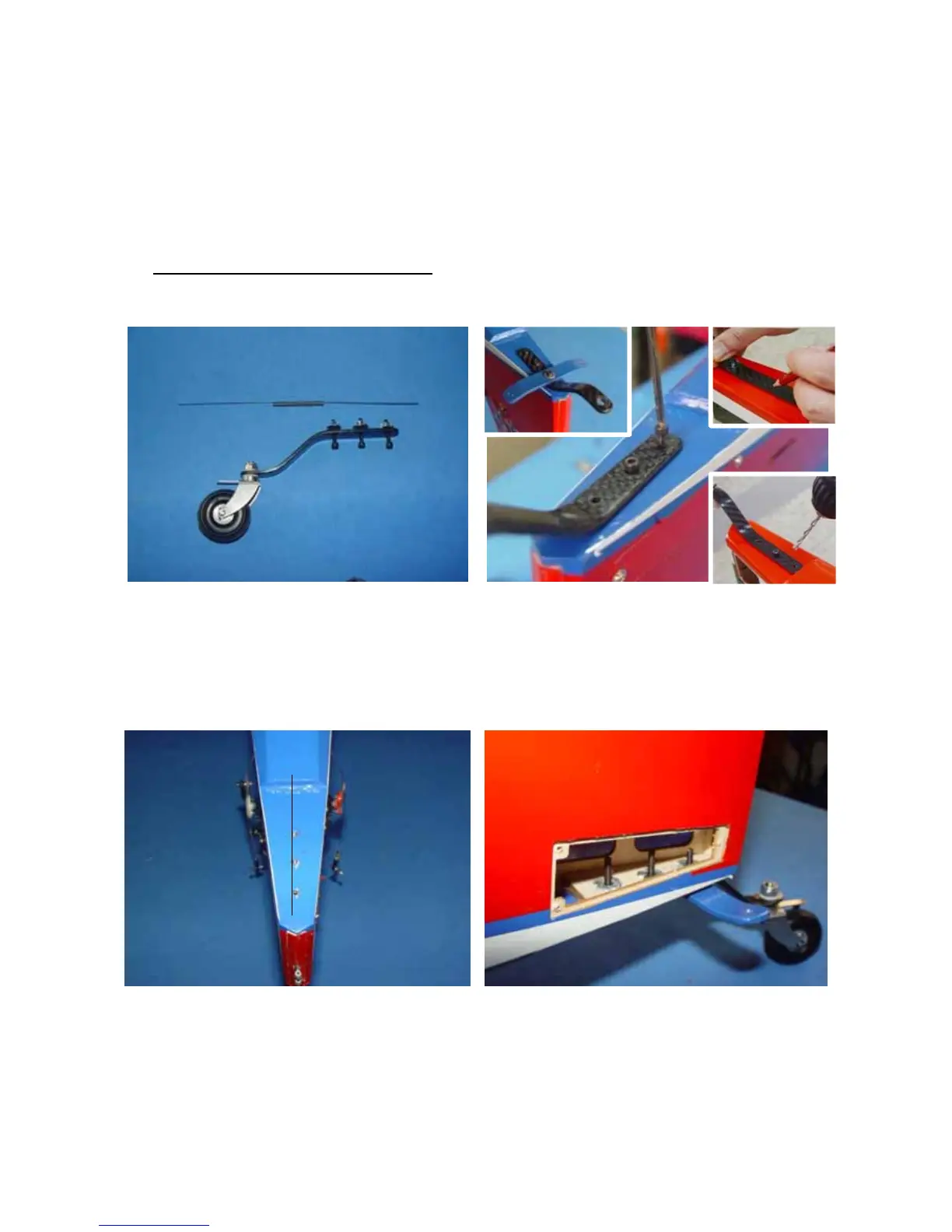

Tail Wheel Installation
Tail wheel
1. Draw a center line with a fine line
marker as shown.
3. Install the blind nuts through the
opening in the rear of the fuselage.
Mount the tail wheel assembly
using blue Loctite on the threads
screws.
2. Locate and drill holes in the tail
wheel mounting block as shown.
