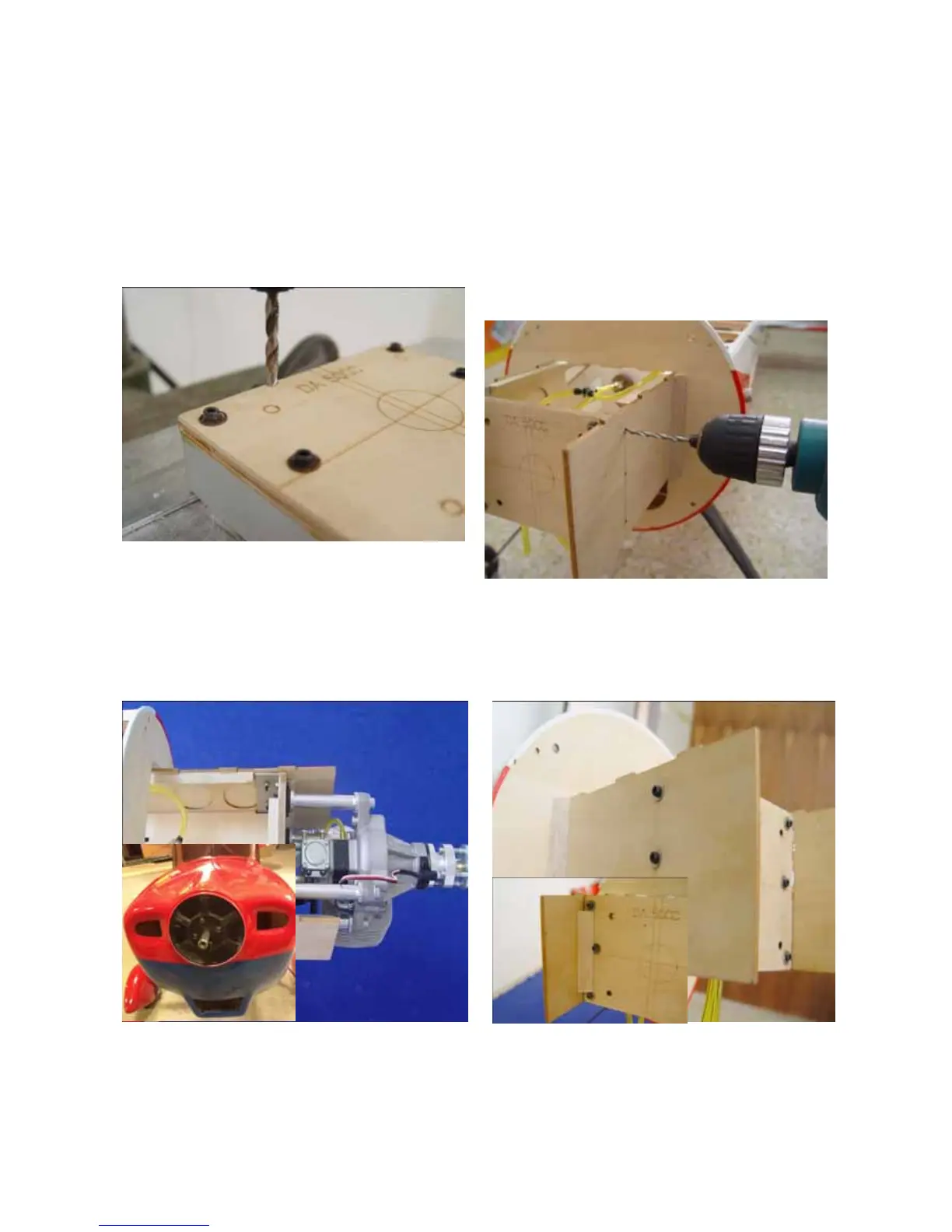

Engine installation
move
1. Using a template, locate, drill, and
install the engine centered to the
firewall.
2. Fit the firewall with the attached
engine into the motor box (without
glue). Install the engine cowl over the
engine. Install the spinner bulkhead
onto the engine and center the
spinner bulkhead with the cowl.
3. Remove cowl and mount fire wall at
present location. Drill 3mm mounting
holes for hardware through the motor
box into aluminum angle brackets.
File photo
4. Glue the firewall at that location with
30 minute epoxy. Triangle stock is
included to reinforce firewall.
File photo
File photo
