15

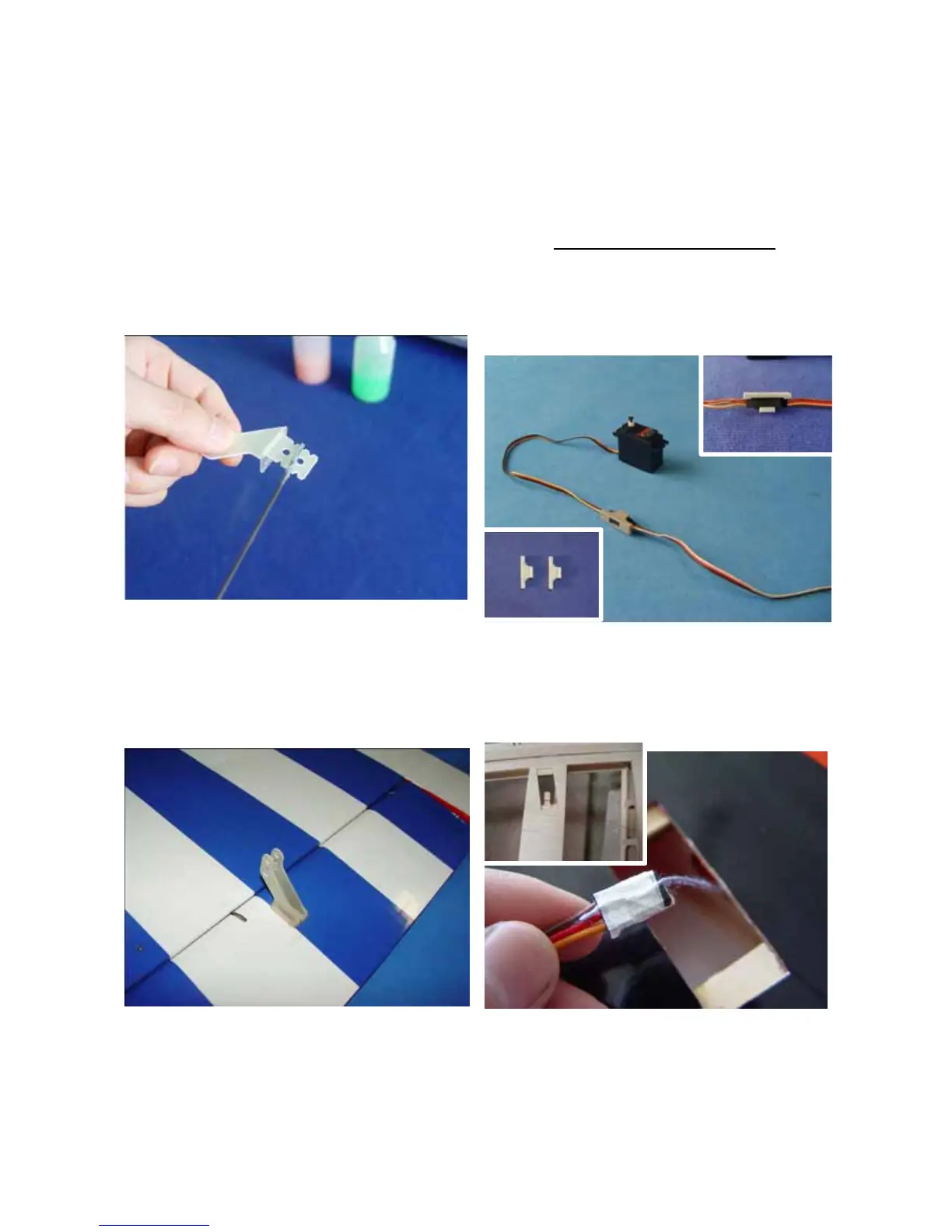

4. Apply the 30 minute epoxy inside
the pre-cut slot for horn and coat the
horn with epoxy as shown.
5. Slide the horn with locking plate
into place. Wipe away excess
epoxy with rubbing alcohol. Note:
Some trimming of the horn might
be required for the horn to fit flush.
Servo Installation
Wing Servos
2. Add a servo extension to each
aileron servo. Install connector safety
clip to as shown to connection.
3. Locate servo cut outs and remove
the covering with a knife. Tape the
servo lead securely to the pull-string.
To Next Page
