Elevator Assembly
Elevator Assembly

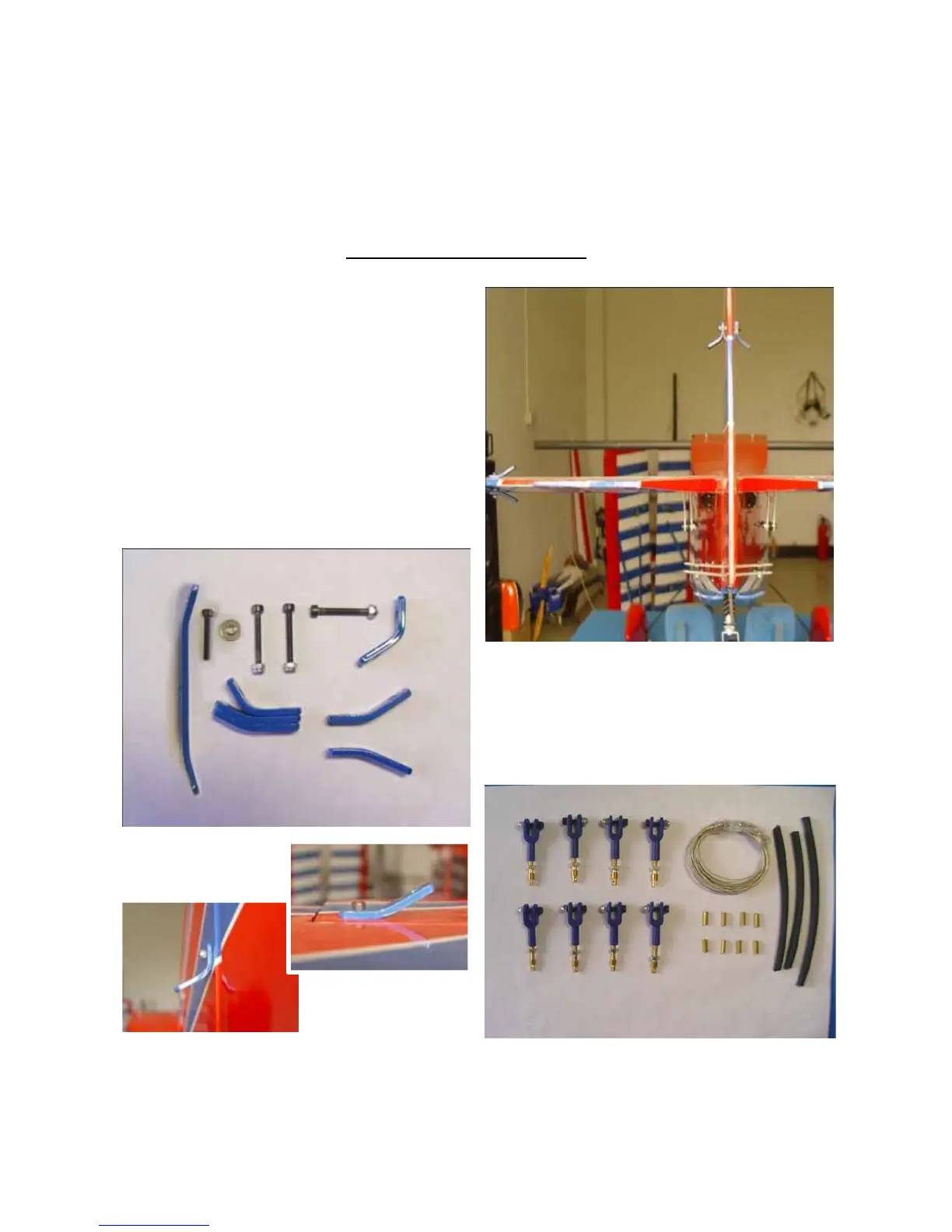

1. Install the aluminum brackets onto
the tail for the wire bracing. There are
a total of seven brackets for the tail
assembly. There are four identical
brackets that are for the horizontal
stabilizer, two with steeper bands that
are for the vertical stabilizer, and a
double sided bracket that mounts on
the aft screw of the tail wheel bracket
under the fuselage.
2. Attach the nylon clevises and
threaded cable ends to the metal tail
brackets. Install the included cables
and crimp into position. Balance
cable tensions.
