26

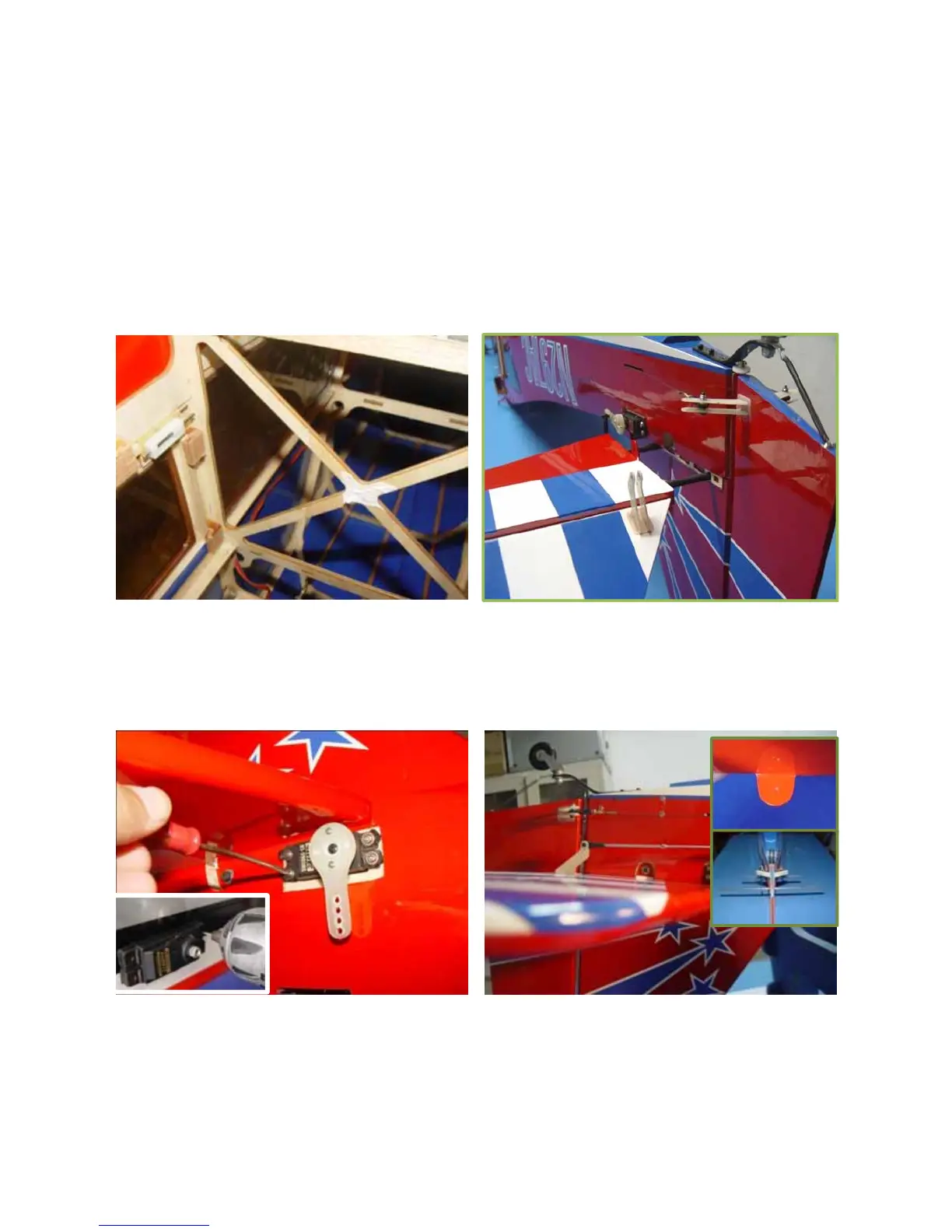

3. Use 1mm bit to drill the mounting
holes. Install the servos with the out
put shaft facing forward.
2. Snake the elevator servo leads into
the fuselage using the factory installed
pull string. (same process as ailerons)
4. Cut the covering on the pre-drilled
hole for stab mounting. Insert carbon
spars and slide horizontal stab into
position.
Elevator Servo Assembly
5. Install the stab with mounting bolts
and washers. Apply Loctite to threads
before installation.
