Pilot RC Optional Rudder
Installation for 50-150cc Aircraft

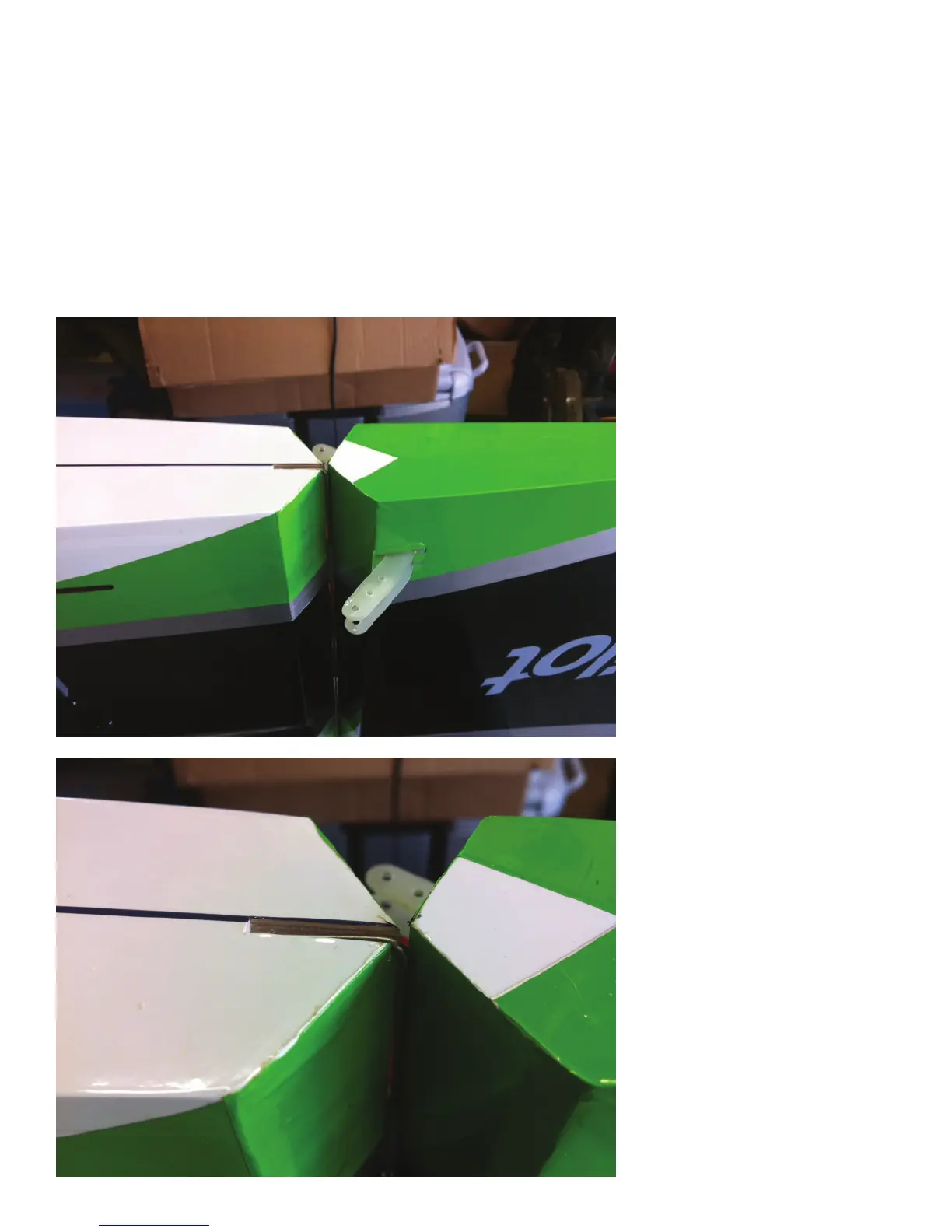

Shorten the rudder wire so that it will not pierce the covering at the top of the rudder and
leave about 3/4” hanging out the bottom. Bend the bottom at a 90 degree angle, and then
trace around the wire (See Photos). You then carve out a channel for the wire to t into, it
only needs to be a deep as the wire is thick.
