Pilz P2HZ X1 User Manual

P2HZ X1
Operating Manual P2HZ X1
20124-EN-09
| 15

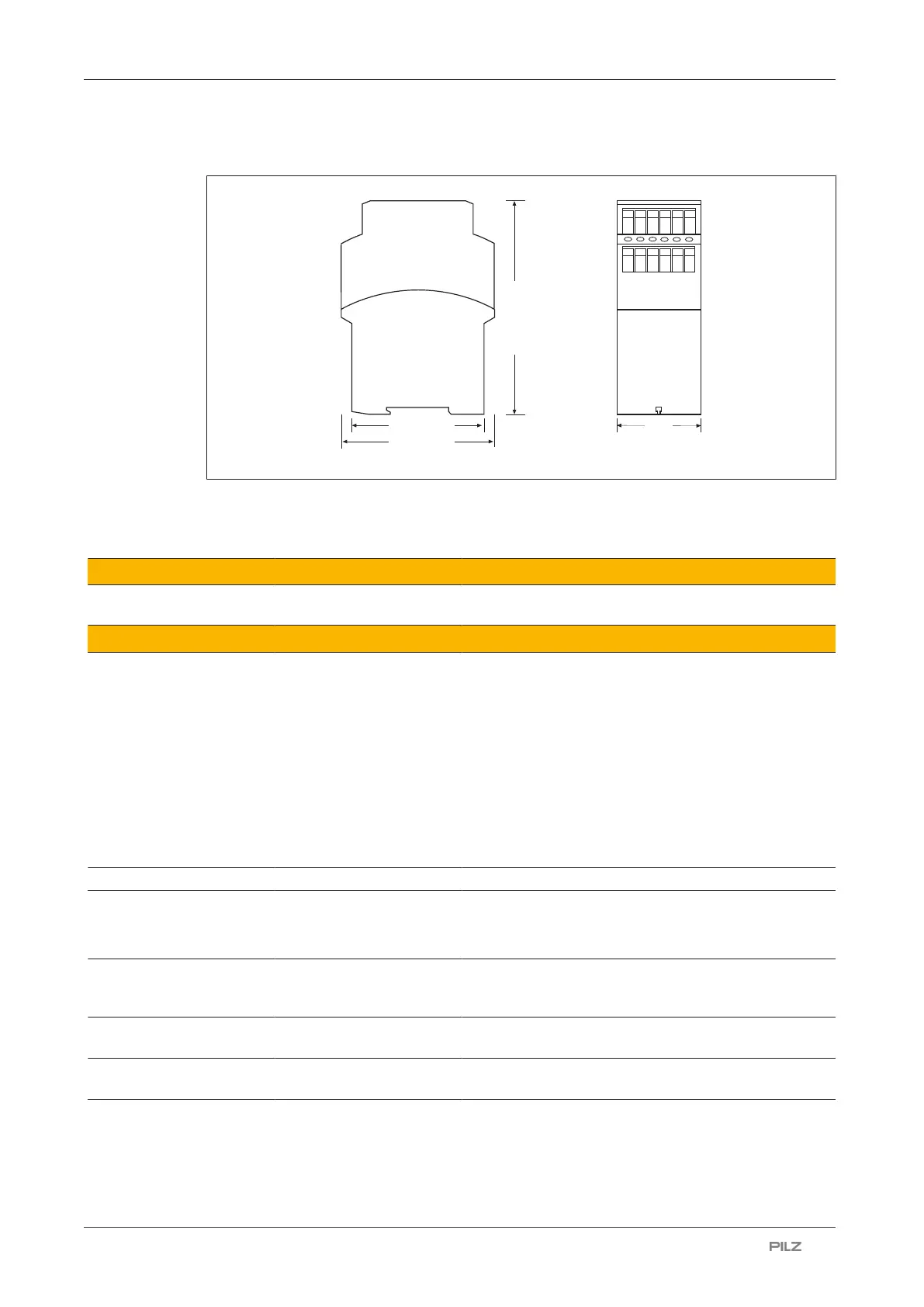

Dimensions in mm
121 (4.76")
75 (2.95")
87 (3.42")
45
(1.77")
Technical Details Order No. 774330, 774332, 774340
General 774330 774332 774340
Certifications
CCC, CE, EAC, TÜV,
UKCA, cULus Listed
CCC, CE, EAC, TÜV,
UKCA, cULus Listed
CCC, CE, EAC, TÜV,
UKCA, cULus Listed
Electrical data 774330 774332 774340
Supply voltage
Voltage 24 V 48 V 24 V
Kind AC AC DC
Voltage tolerance -15 %/+10 % -15 %/+10 % -15 %/+10 %
Output of external
power supply (AC) 6 VA 6 VA –
Output of external
power supply (DC) – – 2,5 W
Frequency range AC 50 - 60 Hz 50 - 60 Hz –
Residual ripple DC – – 10 %
Duty cycle 100 % 100 % 100 %
Current at
N/O contact 30 mA 30 mA 30 mA
N/C contact 20 mA 20 mA 20 mA
Max. overall cable resist-
ance Rlmax per input cir-
cuit 14 Ohm 14 Ohm 14 Ohm
External unit fuse protec-
tion F1 min. 1 A 1 A 1 A
External unit fuse protec-
tion F1 max.
Max. conductor cross
section
Max. conductor cross
section
Max. conductor cross
section
