Overview

Operating Manual PDP67 F 4 code

1001531-EN-06

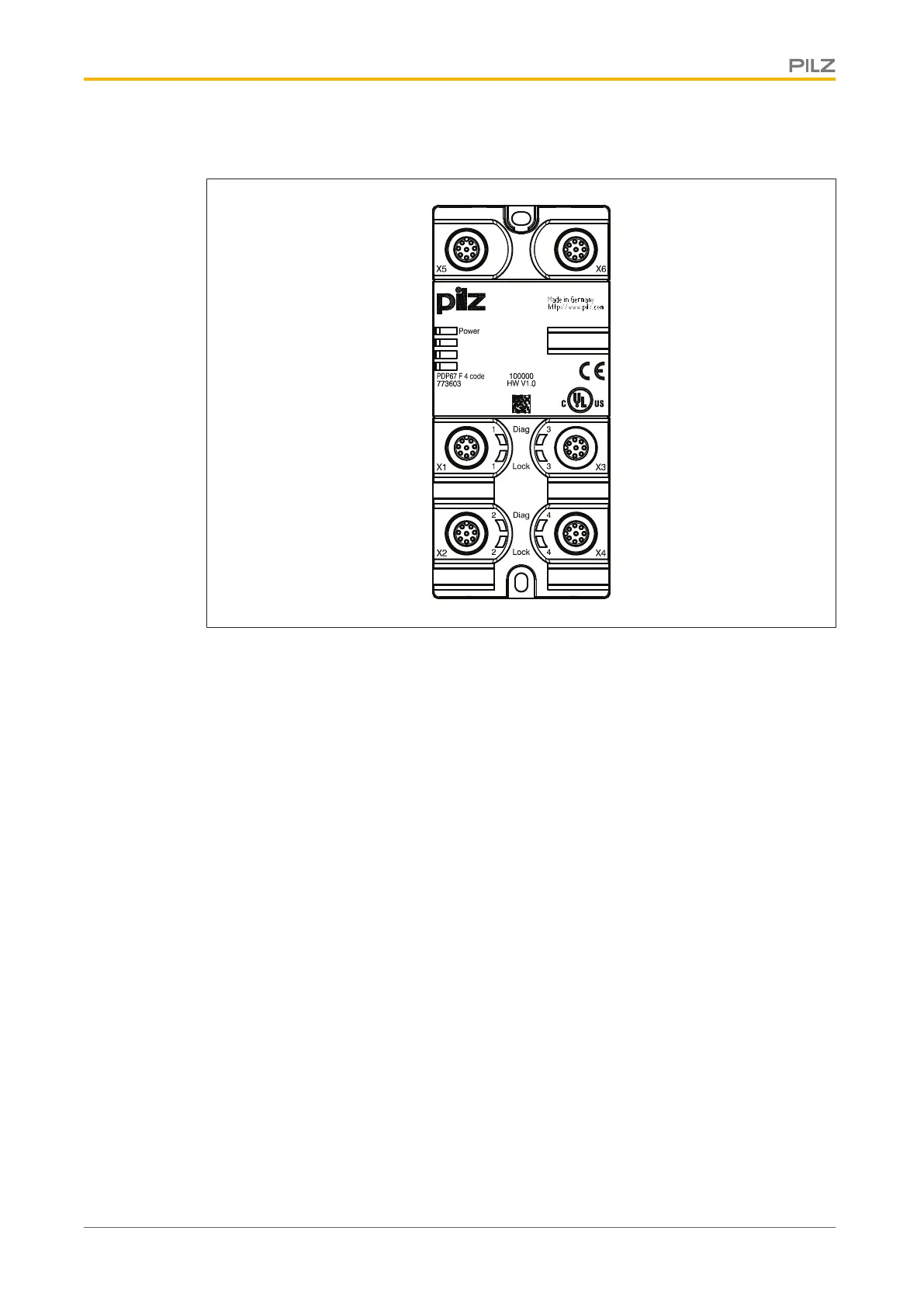

2.2 Front view

Key:

} X1 ... X4:

Female connectors for connecting the sensors

} X5:

Female connectors for connecting to the evaluation device (for connecting the sensors

to X1 ... X4)

} X6:

Female connectors for connecting signal outputs (Diag) and inputs for control com-

mands for magnetic guard locking (Lock)

} LEDs:

– Power

– Diag

– Lock
