Pilz PNOZ 16 User Manual

PNOZ 16
Operating Manual PNOZ 16
1003517-EN-09
| 15

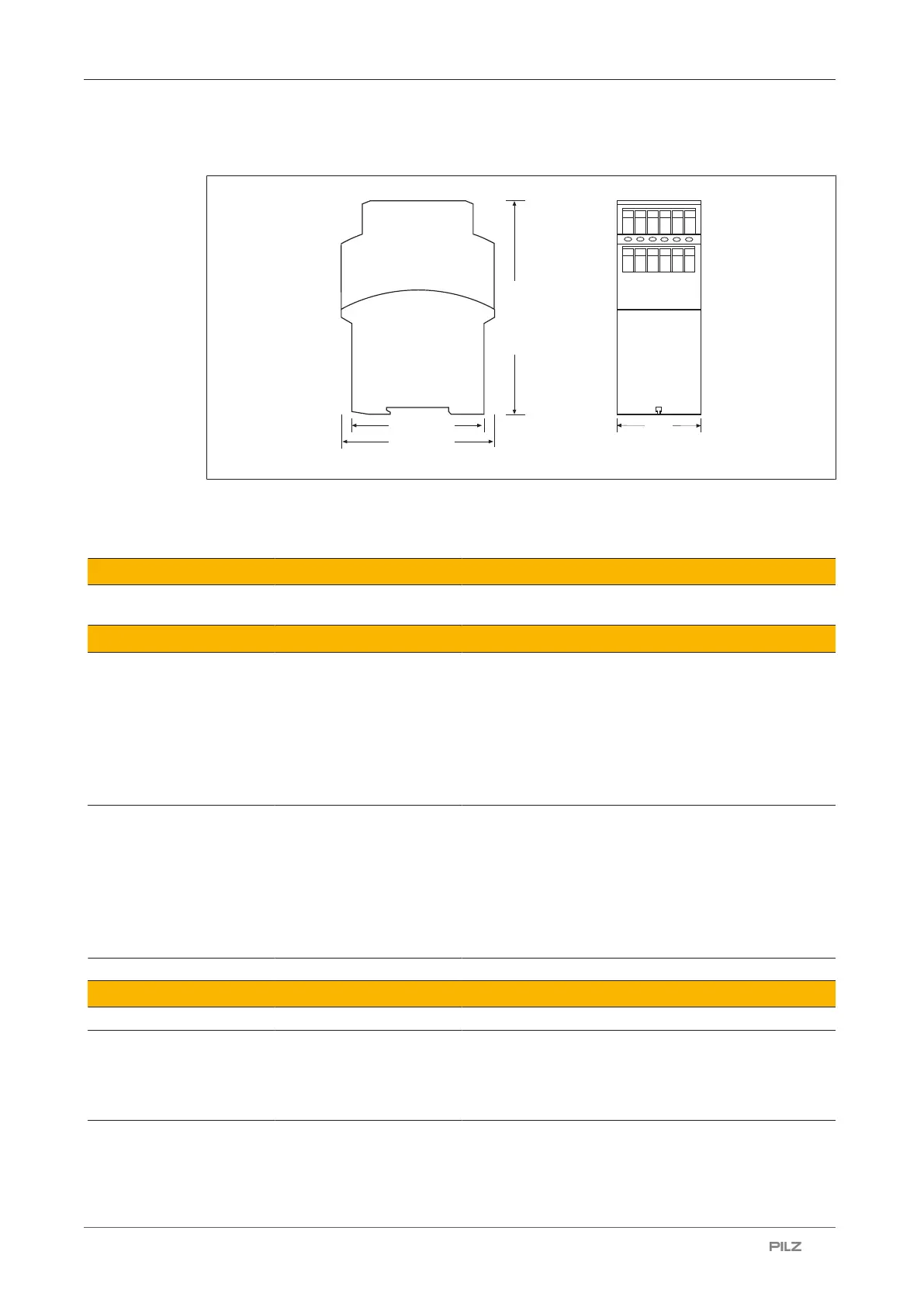

Dimensions in mm
121 (4.76")
75 (2.95")
87 (3.42")
45
(1.77")
Technical Details Order No. 774060-774062
General 774060 774061 774062
Certifications
CCC, CE, EAC (Euras-
ian), TÜV, cULus Listed
CCC, CE, EAC (Euras-
ian), TÜV, cULus Listed
CCC, CE, EAC (Euras-
ian), TÜV, cULus Listed
Electrical data 774060 774061 774062
Supply voltage
Voltage 24 V 42 V 48 V
Kind AC AC AC
Voltage tolerance -15 %/+10 % -15 %/+10 % -15 %/+10 %
Output of external
power supply (AC) 3,5 VA 3,5 VA 3,5 VA
Frequency range AC 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz
Supply voltage
Voltage 24 V 24 V 24 V
Kind DC DC DC
Voltage tolerance -15 %/+10 % -15 %/+10 % -15 %/+10 %
Output of external
power supply (DC) 2 W 2 W 2 W
Residual ripple DC 20 % 20 % 20 %
Duty cycle 100 % 100 % 100 %
Inputs 774060 774061 774062
Number 2 2 2
Voltage at
Input circuit DC 24 V 24 V 24 V
Start circuit DC 24 V 24 V 24 V
Feedback loop DC 24 V 24 V 24 V
