Operating Manual PNOZ 8
22152-EN-05
| 8

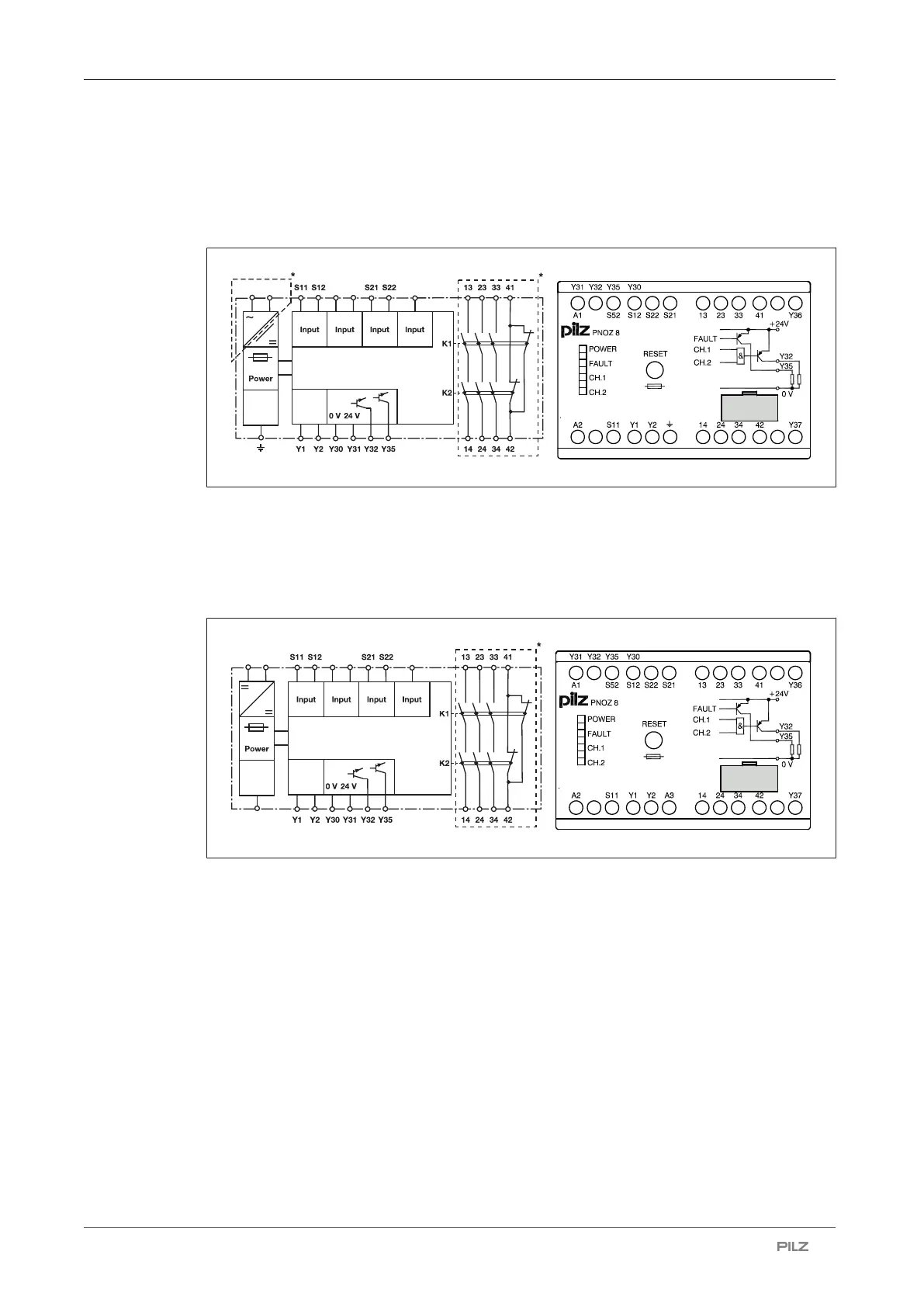

Block diagram/terminal configuration
Types: AC
} U
B
: 230 VAC; Order no. 774768
Y37
Y36
A1 A2
S52
Feed-
back/
Start
*Insulation between the non-marked area and the relay contacts: Basic insulation (over-
voltage category III), Protective separation (overvoltage category II)
Type: DC
} U
B
: 24 VDC; Order no. 774760
Y37
A1 A2
Y36
S52
A3
Feed-
back/
Start
*Insulation between the non-marked area and the relay contacts: Basic insulation (over-
voltage category III), Protective separation (overvoltage category II)
