PNOZ e1.1p
Operating Manual PNOZ e1.1p
21238-EN-06
13

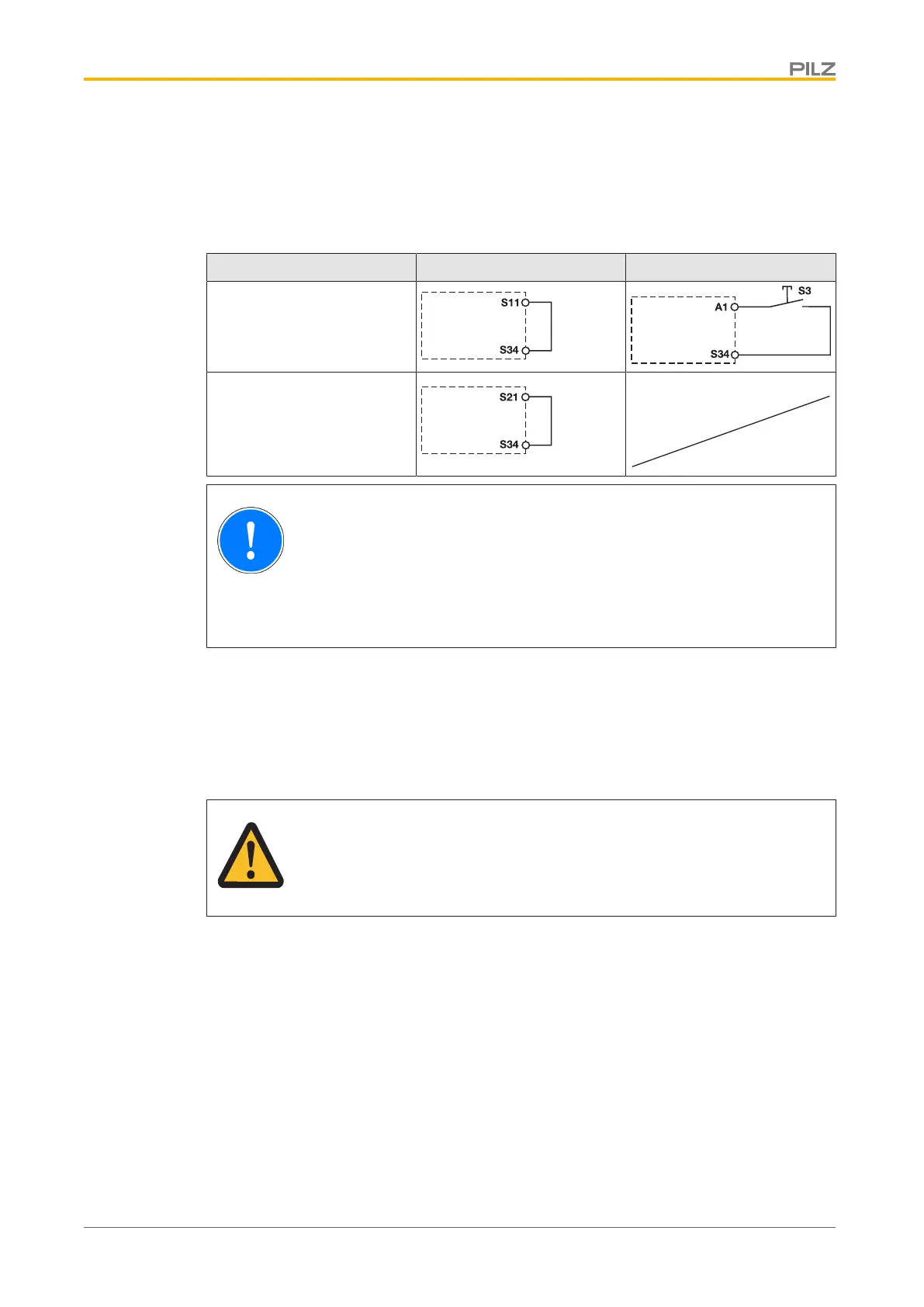

Start circuit
The unit can be started automatically or manually with monitoring.
With an automatic start, an operating mode with start-up test can also be selected.
} The start circuit should be connected as described in the table.
Start circuit Automatic start Monitored start
Safety gate without start-up
test
E-STOP wiring
Safety gate with start-up test
NOTICE
With automatic start
The unit starts up automatically when the safeguard is reset, e.g. when the
E-STOP pushbutton is released. Use external circuit measures to prevent
an unexpected restart.
Feedback loop
Contacts from external contactors can be connected between Y6 and A1.
} Feedback loop unconnected:
If you do not wish to connect any contacts to the feedback loop, Y6 must be connected
to A1.
CAUTION!
Do not connect the contacts from external contactors in series to the start
circuit.
