Operating Manual PNOZ m B0.1

1005720-EN-04

| 9

2.4 Front view

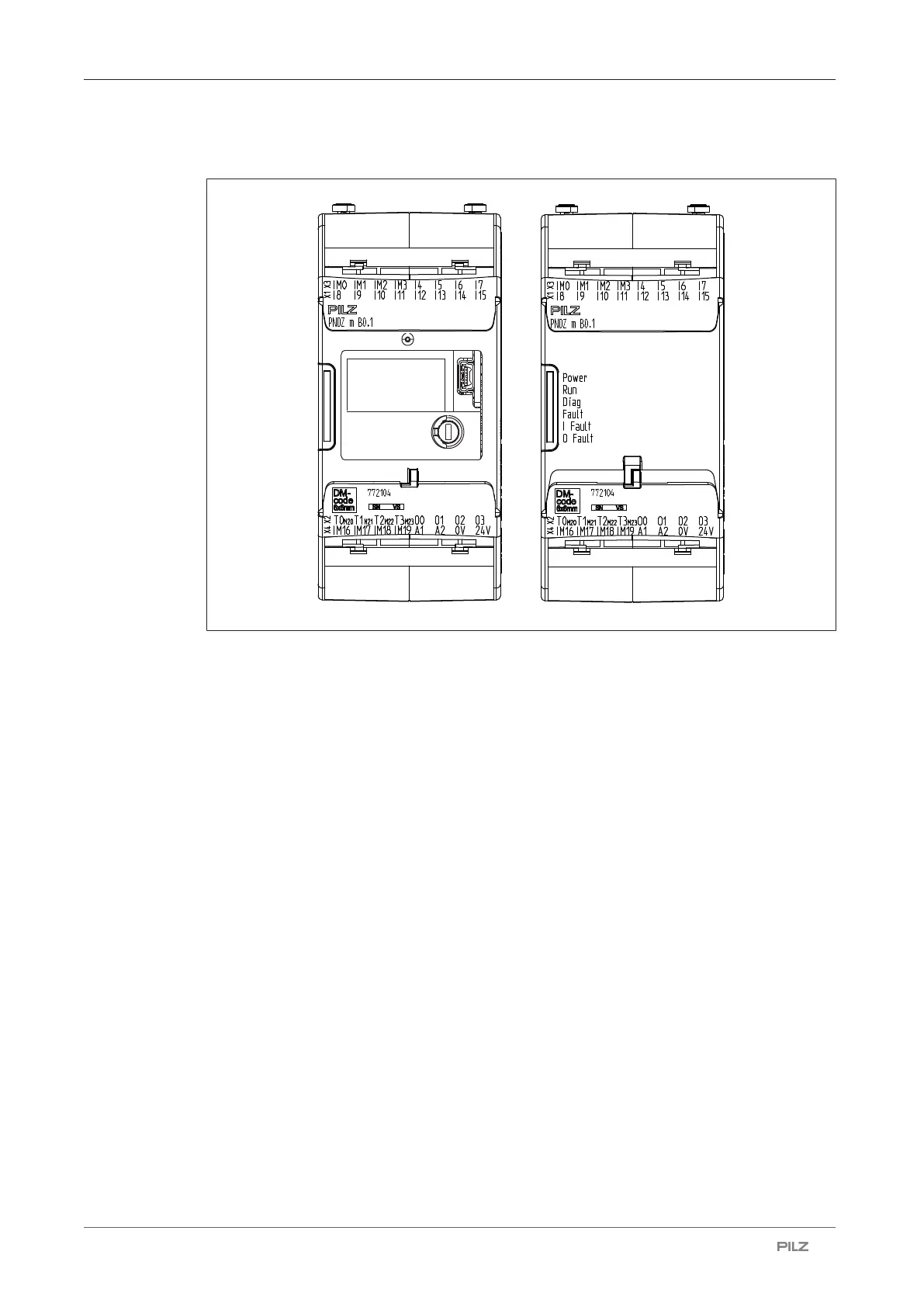

Fig.: Front view with and without cover

Legend

X1: Inputs I8 ... I15

X2: Configurable test pulse/auxiliary outputs T0M20 ... T3M23

Semiconductor outputs O0 ... O3

X3: Configurable inputs/outputs IM0 – IM3

Inputs I4 ... I7

X4: Configurable inputs/outputs IM16 – IM19

Supply connections

LEDs: POWER

RUN

DIAG

FAULT

I FAULT

O FAULT
