Pilz PNOZ s3 User Manual

PNOZ s3

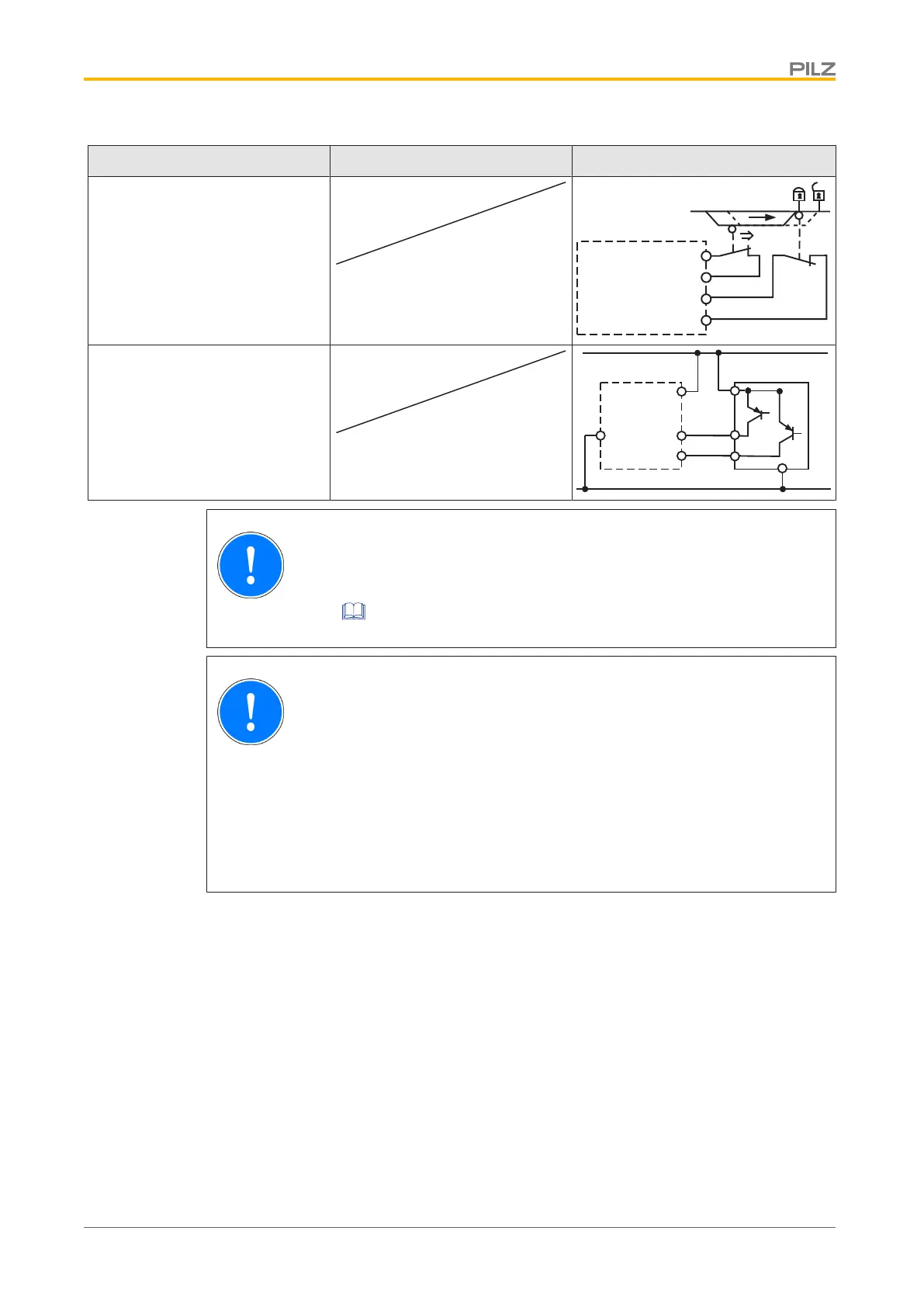

Operating Manual PNOZ s3
21395-EN-12
13
Input circuit Single-channel Dual-channel
Safety gate
with detection of shorts across
contacts
S1
S2
S12
S11
S22
S21
Light beam device or safety
switch, detection of shorts across
contacts via ESPE
A1
A2 S12
S22
24 V DC
GND
NOTICE
With single-channel wiring the safety level of your machine/plant may be
lower than the safety level of the unit (see Safety characteristic
data [ 22]).
NOTICE
When operated with a light grid or sensor
– It must not be possible to switch off the supply voltage for the PNOZ-
sigma separately from the supply voltage for the light grid or safety
switch.
– The operating mode selector switch must be set to "Without detection
of shorts across contacts", as shorts across contacts are detected by
the ESPE.

Pilz PNOZ s3 Specifications

General

Product Type	Safety Relay
Safety Integrity Level	SIL CL 3
Supply Voltage	24 V DC
Number of Auxiliary Contacts	1
Width	22.5 mm
Rated Operational Current Ie	6 A
Protection Class	IP20
Stop Category	0
Standards	EN ISO 13849-1, IEC 62061, EN 60947-5-1, EN 60204-1
Weight	150 g
Number of Safety Contacts	3
Ambient Temperature	-10 to 55 °C
