PNOZ s3
Operating Manual PNOZ s3
21395-EN-12
23
Supplementary data
CAUTION!
It is essential to consider the relay's service life graphs. The relay outputs'
safety-related characteristic data is only valid if the values in the service life
graphs are met.
The PFH value depends on the switching frequency and the load on the relay output.
If the service life graphs are not accessible, the stated PFH value can be used irrespective
of the switching frequency and the load, as the PFH value already considers the relay's
B10d value as well as the failure rates of the other components.

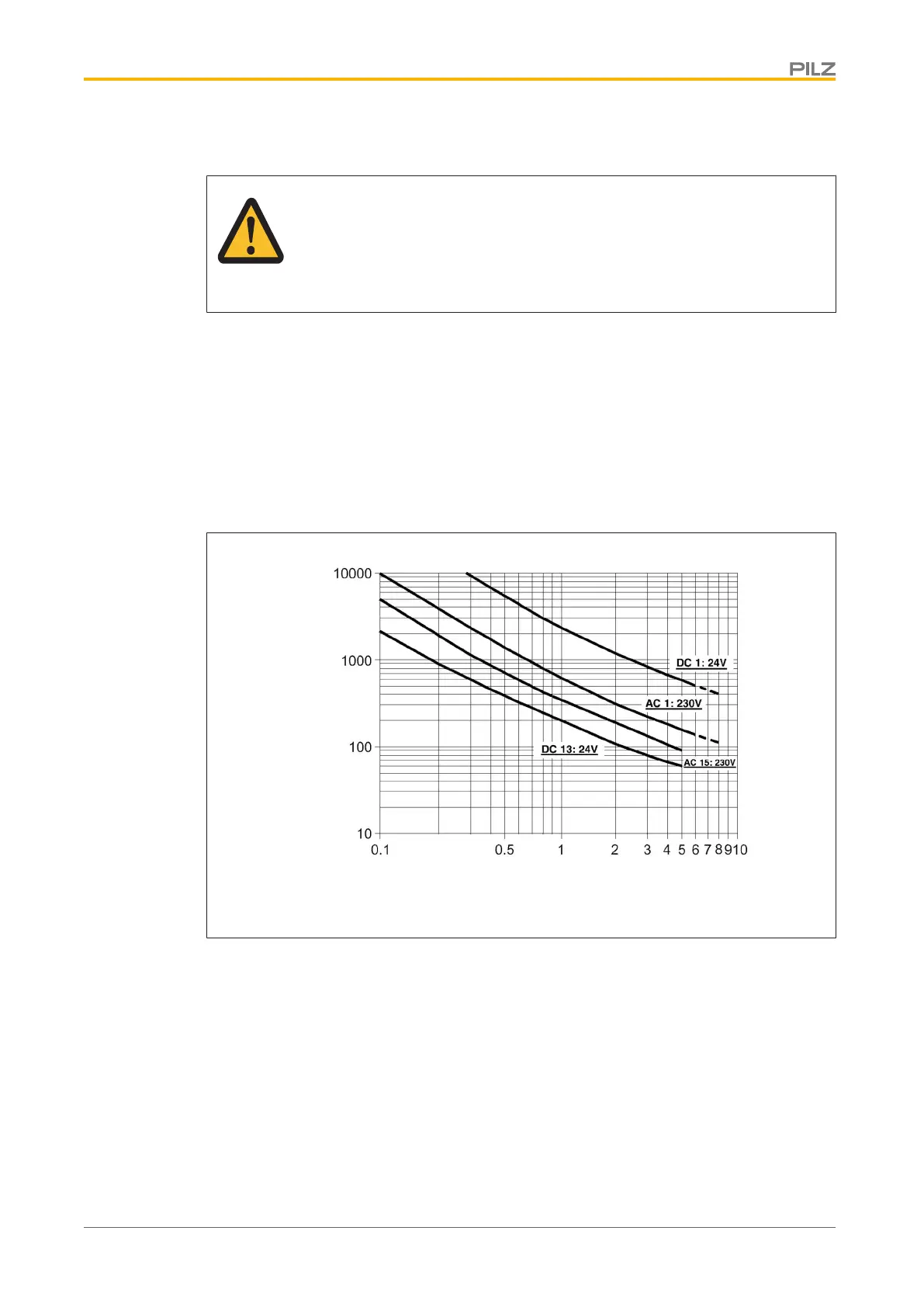

Service life graph
The service life graphs indicate the number of cycles from which failures due to wear must
be expected. The wear is mainly caused by the electrical load; the mechanical load is negli-
gible.
Cycles x 1000
Switching current (A)
Fig.: Service life graphs at 24 V DC and 230 V AC

Pilz PNOZ s3 Specifications

General

Product Type	Safety Relay
Safety Integrity Level	SIL CL 3
Supply Voltage	24 V DC
Number of Auxiliary Contacts	1
Width	22.5 mm
Rated Operational Current Ie	6 A
Protection Class	IP20
Stop Category	0
Standards	EN ISO 13849-1, IEC 62061, EN 60947-5-1, EN 60204-1
Weight	150 g
Number of Safety Contacts	3
Ambient Temperature	-10 to 55 °C
