Pilz PNOZ s3 User Manual

PNOZ s3
Operating Manual PNOZ s3
21395-EN-12
26
Remove plug-in terminals

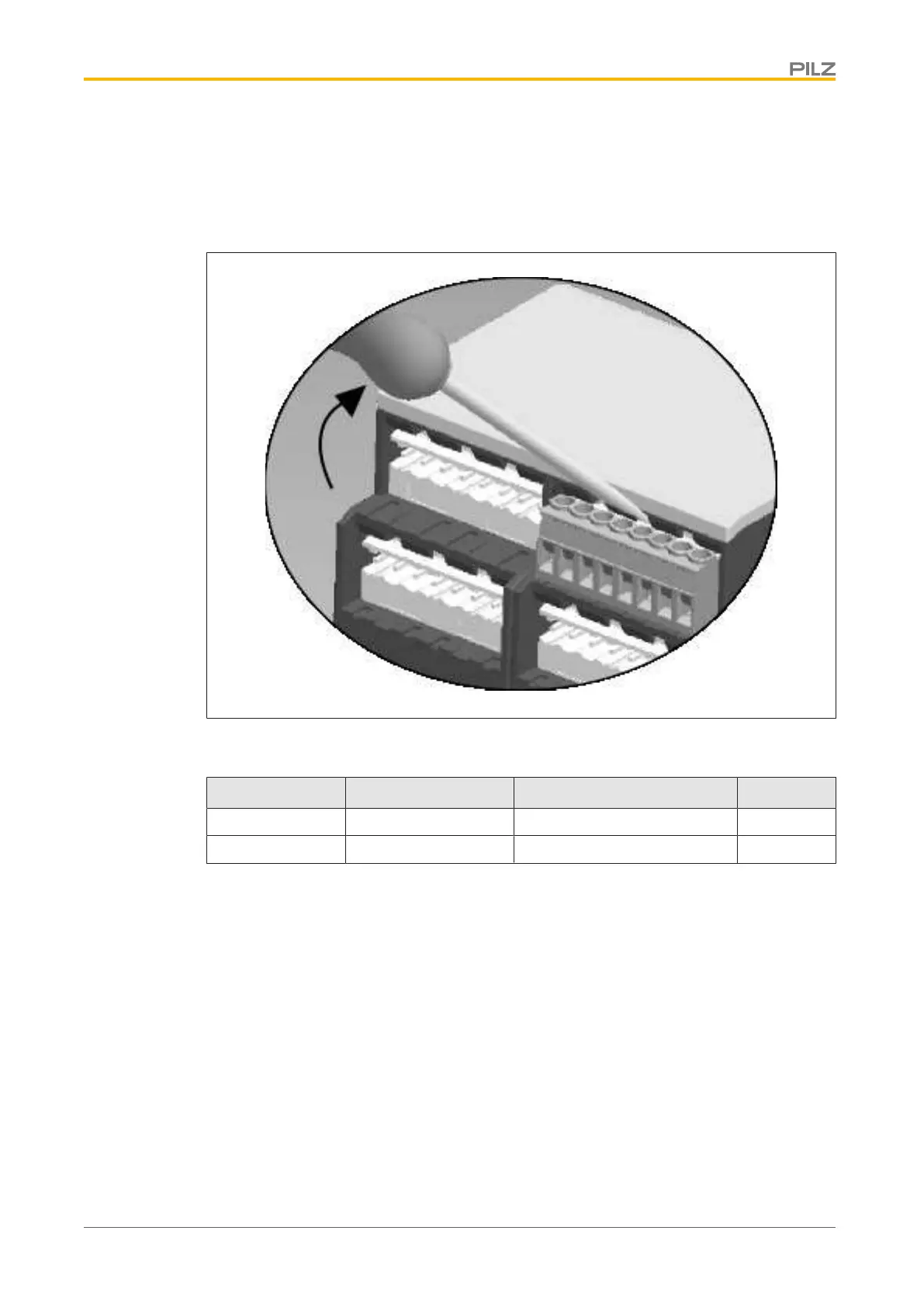

Procedure: Insert the screwdriver into the housing recess behind the terminal and lever the
terminal out.
Do not remove the terminals by pulling the cables!
Order reference
Product type Features Connection type Order No.
PNOZ s3 24 VDC Screw terminals 750 103
PNOZ s3 C 24 VDC Spring-loaded terminals 751 103
EC declaration of conformity
This product/these products meet the requirements of the directive 2006/42/EC for ma-
chinery of the European Parliament and of the Council. The complete EC Declaration of
Conformity is available on the Internet at www.pilz.com/downloads.
Representative: Norbert Fröhlich, Pilz GmbH & Co. KG, Felix-Wankel-Str. 2, 73760 Ost-
fildern, Germany

Pilz PNOZ s3 Specifications

General

Product Type	Safety Relay
Safety Integrity Level	SIL CL 3
Supply Voltage	24 V DC
Number of Auxiliary Contacts	1
Width	22.5 mm
Rated Operational Current Ie	6 A
Protection Class	IP20
Stop Category	0
Standards	EN ISO 13849-1, IEC 62061, EN 60947-5-1, EN 60204-1
Weight	150 g
Number of Safety Contacts	3
Ambient Temperature	-10 to 55 °C
