Pilz PNOZ s3 User Manual

PNOZ s3
Operating Manual PNOZ s3
21395-EN-12
17
RESET FAULT
Diagnostics: Position of rotary switch is not permitted or rotary switch was ad-
justed during operation.
} Remedy: Switch supply voltage off and then on again.
POWER, IN1, IN2, OUT, RESET, FAULT
Diagnostics: The operating mode selector switch "mode" is in its start position
(vertical position)
} Remedy: Switch off the supply voltage and set the required operating mode
on operating mode selector switch "mode".
Faults - malfunctions
} Contact malfunctions: If the contacts have welded, reactivation will not be possible after
the input circuit has opened.

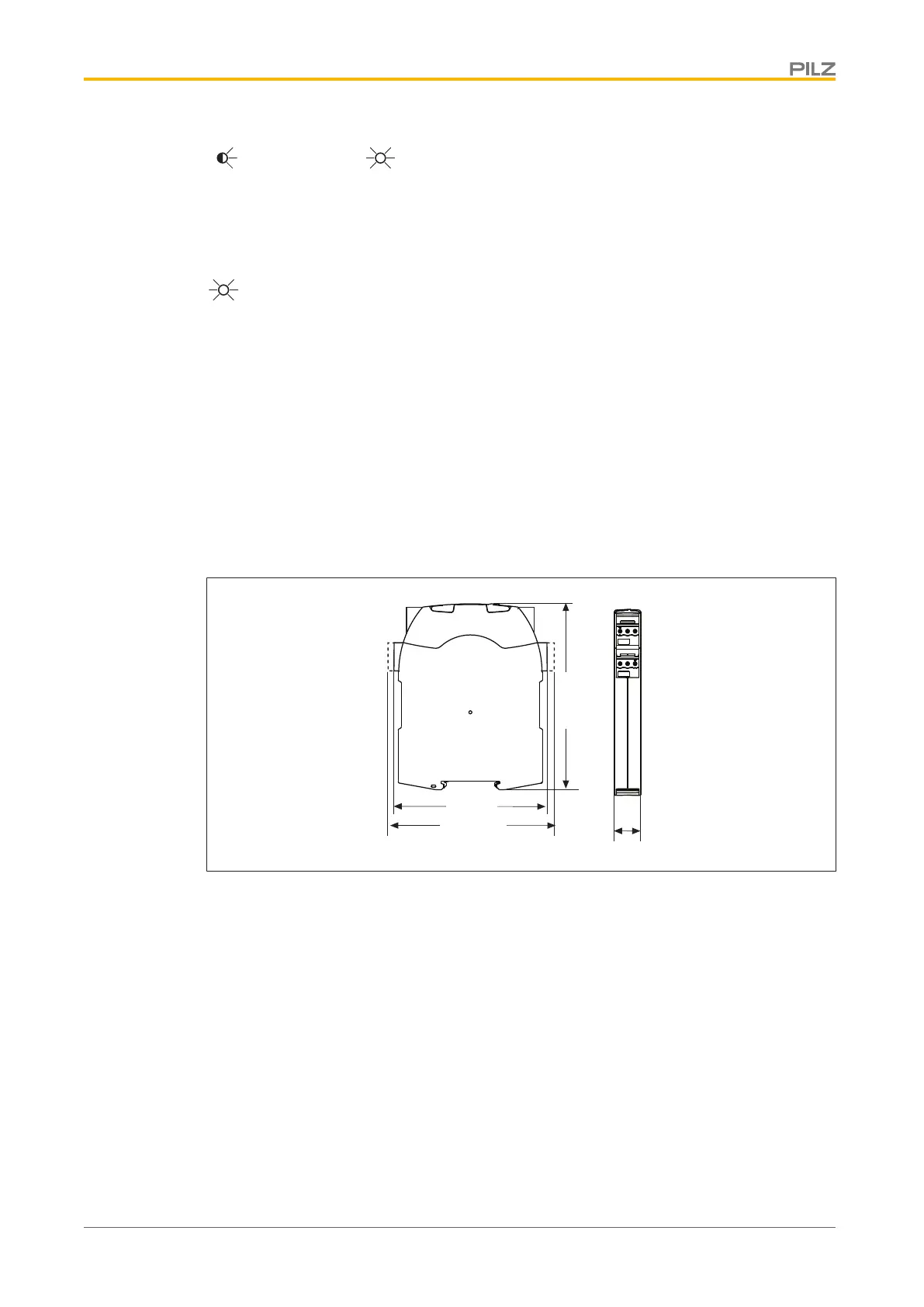

Dimensions in mm
*with spring-loaded terminals
120 (4.72")
* 100 (3,94")
98 (3.86")
17,5
(0.69")

Pilz PNOZ s3 Specifications

General

Product Type	Safety Relay
Safety Integrity Level	SIL CL 3
Supply Voltage	24 V DC
Number of Auxiliary Contacts	1
Width	22.5 mm
Rated Operational Current Ie	6 A
Protection Class	IP20
Stop Category	0
Standards	EN ISO 13849-1, IEC 62061, EN 60947-5-1, EN 60204-1
Weight	150 g
Number of Safety Contacts	3
Ambient Temperature	-10 to 55 °C
