Example
} Inductive load: 0.2 A
} Utilisation category: AC15
} Contact service life: 2 000 000 cycles
Provided the application to be implemented requires fewer than 2 000 000 cycles, the PFH
value (see Technical details [ 17]) can be used in the calculation.
To increase the service life, sufficient spark suppression must be provided on all output
contacts. With capacitive loads, any power surges that occur must be noted. With DC con-
tactors, use flywheel diodes for spark suppression.
Unit types with UB 24-240 VAC/DC
} U
B
: 24 – 240 VAC/DC; Order no. 777302, 787302
10000
1000
5000
100
500
10
50
0,1 0,5 1 2 3 4 5 6 8 10
DC-1: 24VDC-1: 24V
AC-1: 230VAC-1: 230V
AC-15: 230VAC-15: 230V
DC-13: 24VDC-13: 24V
Number of operating cycles x 1000
Switching current (A)

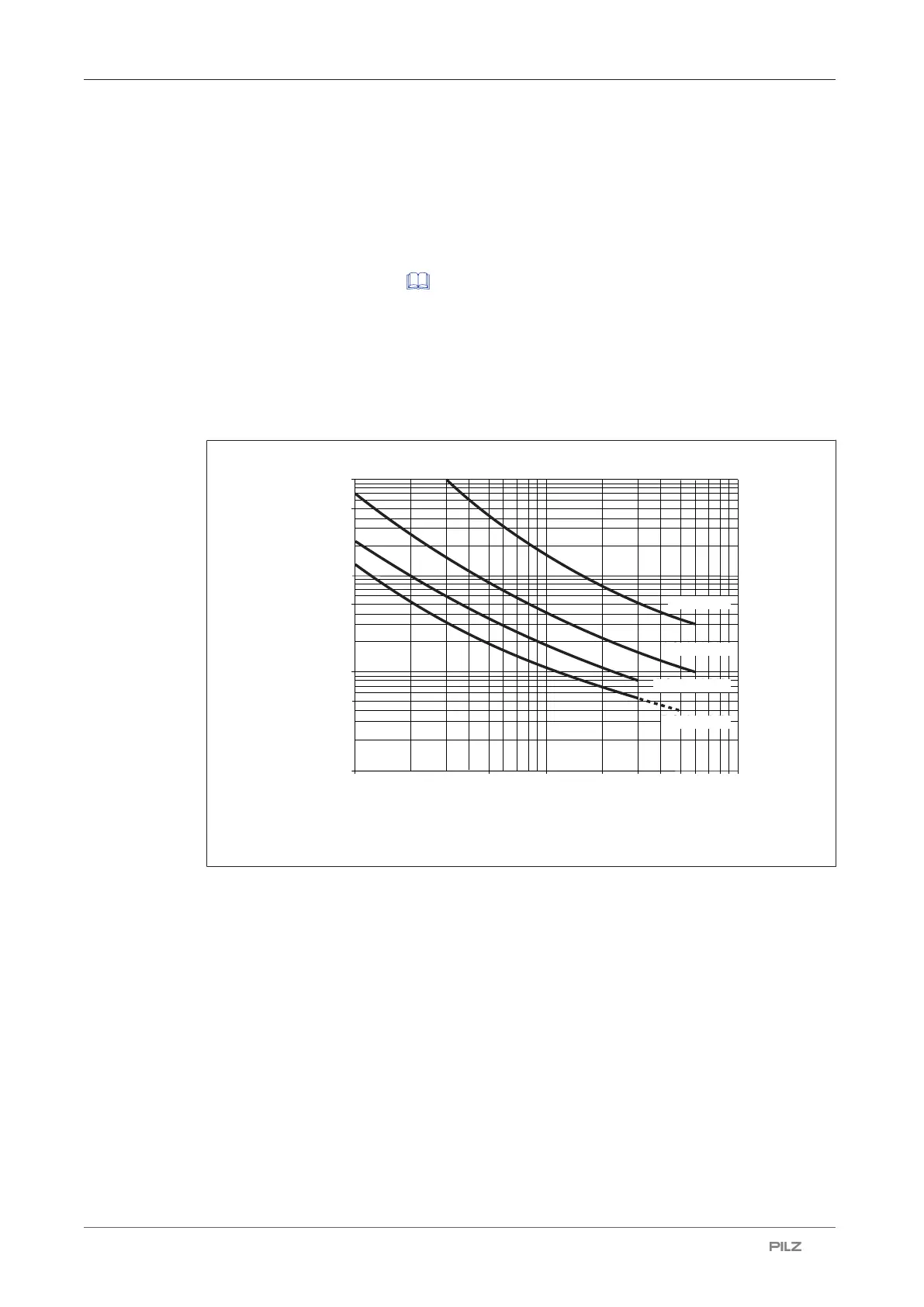

Fig.: Service life graphs at 24 V DC and 230 V AC
